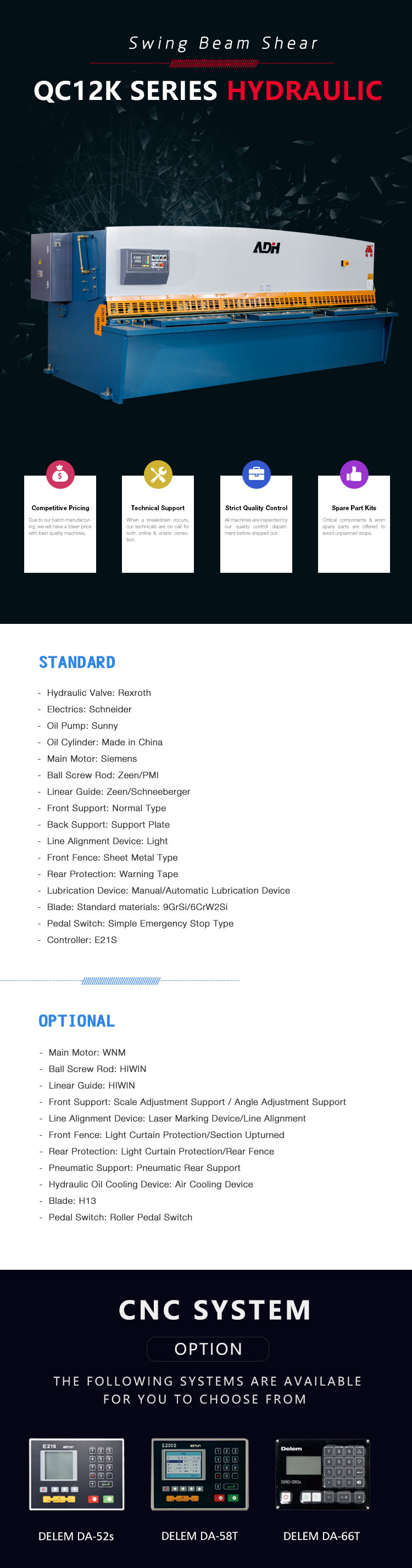

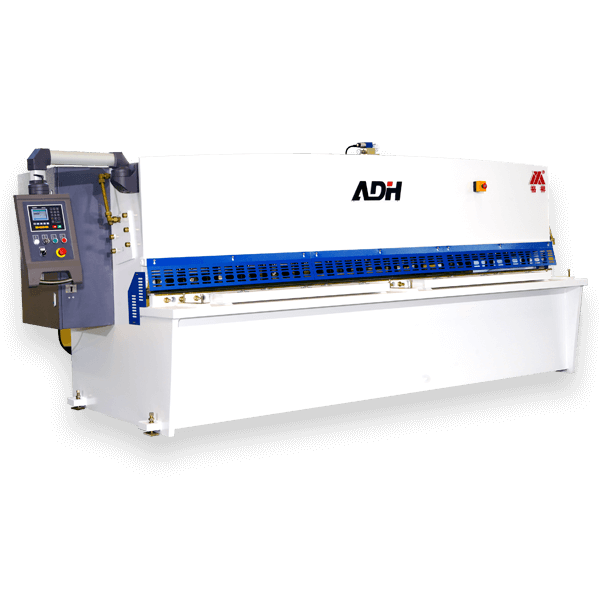

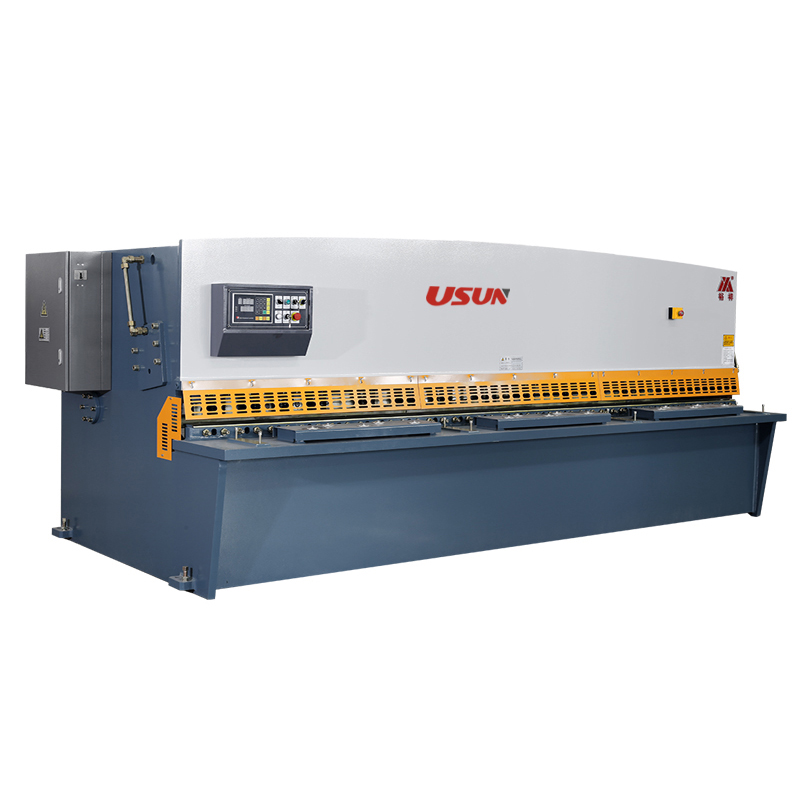

Hydraulic Swing Beam Shear
This hydraulic swing beam shear features a steel plate welded structure with hydraulic transmission and nitrogen cylinder return. It offers easy operation, reliable performance, and precise blade gap adjustment.
Technical Specifications
Overview
High-Efficiency Hydraulic Shearing
This hydraulic swing beam shear utilizes a robust steel plate welded structure with nitrogen cylinder return for reliable, high-speed operation. It offers superior precision with straightness within ±0.10mm over 3 meters and is designed for high-performance industrial environments. Featuring advanced overload protection and a low-noise hydraulic drive system, it ensures both safety and productivity for precision metal fabrication tasks.
Performance Metrics
Key Performance Indicators
30 times/min
Cutting Speed
0.1 mm
Straightness Precision
70 dB
Noise Level
Technical Specifications
Supported CNC Systems
- E21s
- E200PS
- DAC310S
- Blade Characteristics
- 6CrW2Si Material55°-60°HB Hardness

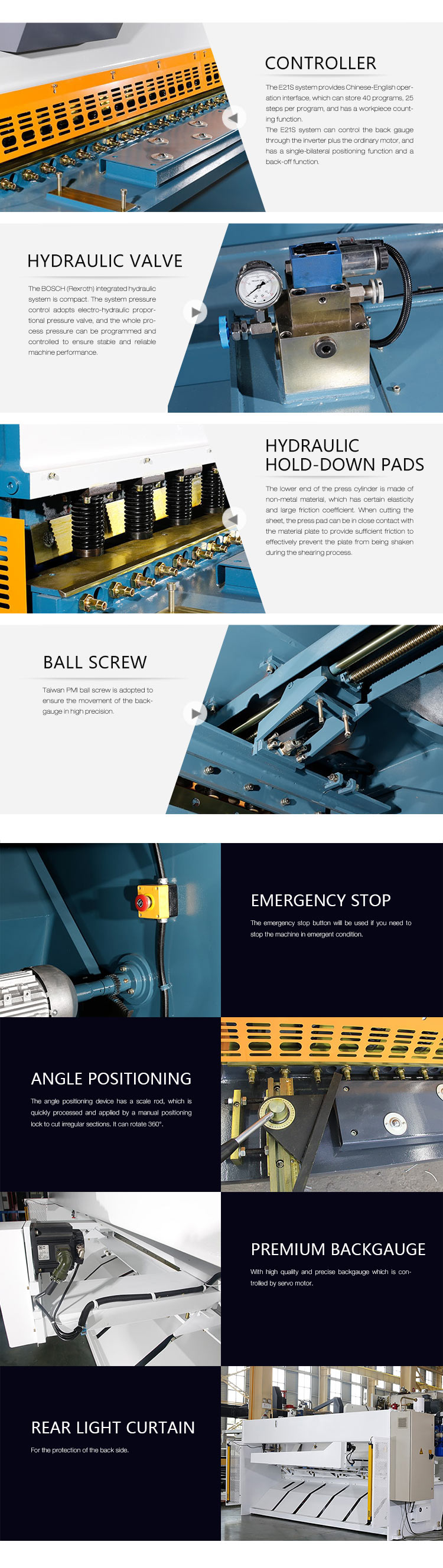

Safety & Operational Features
Safety Equipment
Hydraulic Overload ProtectionElectrical Overload ProtectionSafety Protection FenceEmergency Stop
Operational Advantages
- Stepless blade gap adjustment
- Light alignment device
- Stepless top blade holder stroke adjustment
- Rolling material support ball
