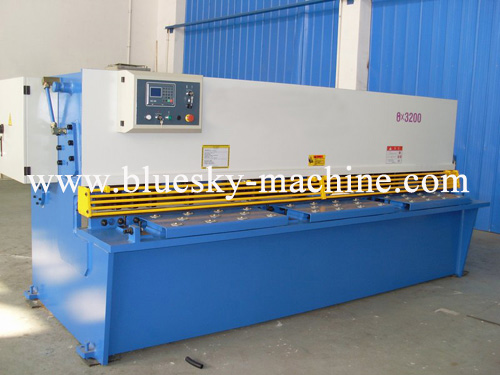

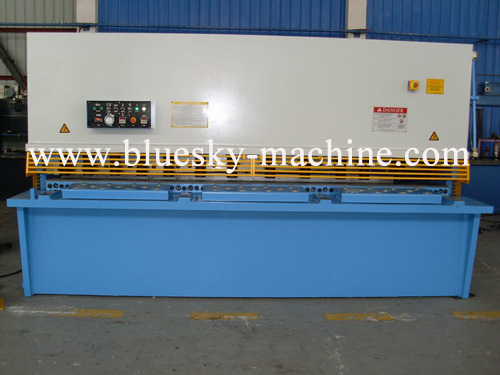

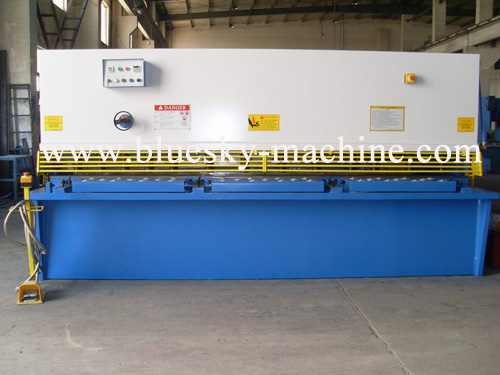

Hydraulic Swing Beam Metal Shearing Machine
This hydraulic swing beam shearing machine is designed for precise metal sheet cutting. Its features include a robust frame, hydraulic drive system and a user-friendly control panel.
Technical Specifications
Overview
Industrial Hydraulic Shearing Solution
This hydraulic swing beam shearing machine features an all-steel welded structure designed to withstand heavy industrial use. Utilizing a hydraulic top-drive system and vibration-stress relief, it ensures long-term stability and precision. The machine incorporates advanced features like stepless stroke adjustment and a nitrogen return system for efficient, high-performance metal cutting.
Technical Specifications
- Construction
- All-steel welded structure
- Drive System
- Hydraulic top-drive
- Blade Type
- Swing beam
- Return Mechanism
- Nitrogen return
Operational Features
Control & Adjustment
- Stepless adjustment for upper blade carrier stroke
- Digital display for rear stop and cutting quantity
- Indicator for upper and lower blade gap
- Fast blade gap adjustment
- Integrated cutting line lighting
Safety Features
Protection fenceEmergency stop buttonBlade guardsFoot pedal operation
- Model ID
- BX3200
