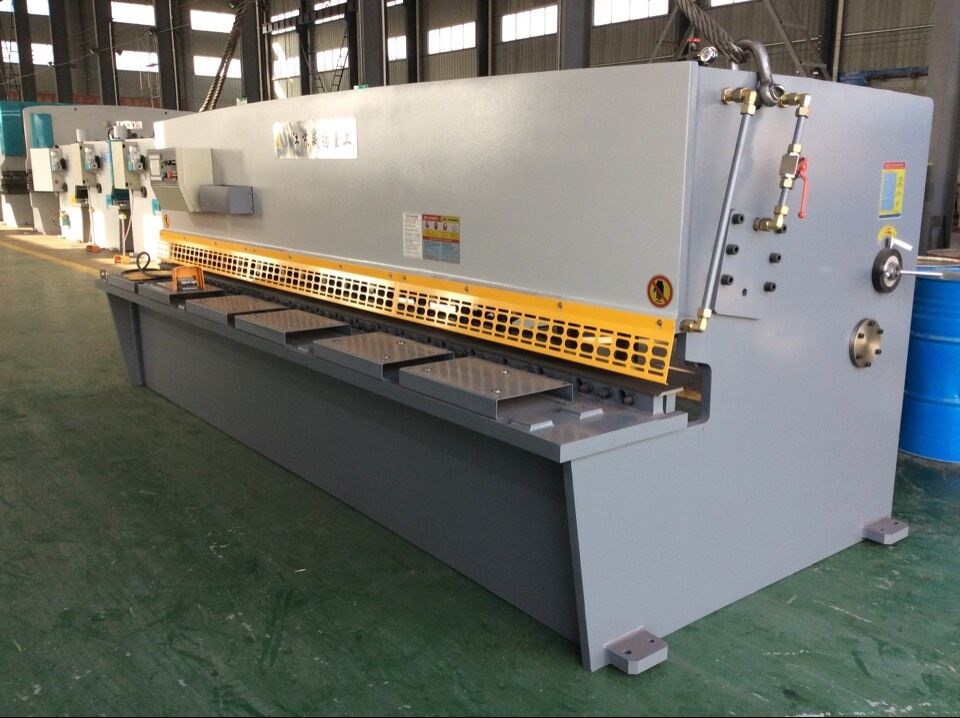

Hydraulic Stainless Steel Sheet Metal Shear
This machine features a steel welded structure and three guide trolleys for accurate movement and fine shearing. The adjustable rake angle minimizes deformation, and both upper and lower blades have four cutting edges for extended use.
Technical Specifications
Product Overview
Industrial Hydraulic Sheet Metal Shear
This hydraulic shearing machine is built with a heavy-duty welded plate construction, ensuring high rigidity and long-term stability for demanding industrial environments. Featuring a versatile blade clearance adjustment system and rectangular blades with four cutting edges, it offers precise, clean cuts while maximizing tool lifespan. The integration of an inward-tilting blade holder and an infrared lineation system ensures high accuracy and efficient operation for professional sheet metal fabrication.
Design and Construction
Key Features
- Plate welded construction for stress elimination
- Upper blade holder inward tilting structure
- Infrared ray for lineation and shear alignment
- Customized spring holders to prevent sheet crushing
Cutting Capabilities
- Cutting Performance
- Adjustable shearing angleSectional shearingFast blade clearance adjustment
Technical Specifications
Performance Metrics
4 edges
Cutting Edges per Blade
Control and Precision
System Controls
- Mechanical back gauge with manual fine tuning
- Digital indication for back gauge
- Automatic back gauge positioning
- Integrated hydraulic transmission system
