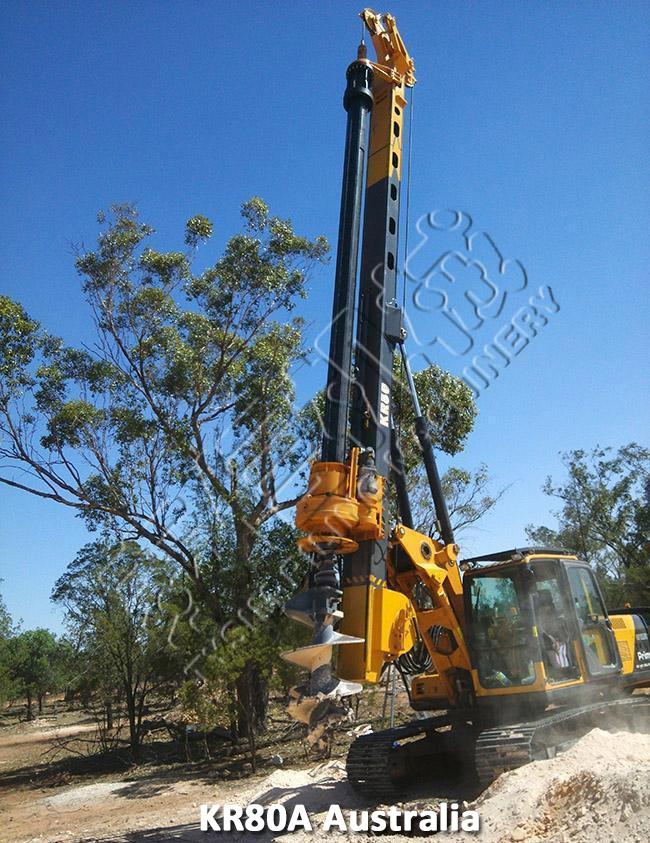

Hydraulic Rotary Piling Rig
This hydraulic rotary piling rig is designed for efficient pile installation in foundation construction. It features a China chassis for stability and maneuverability on diverse terrains.

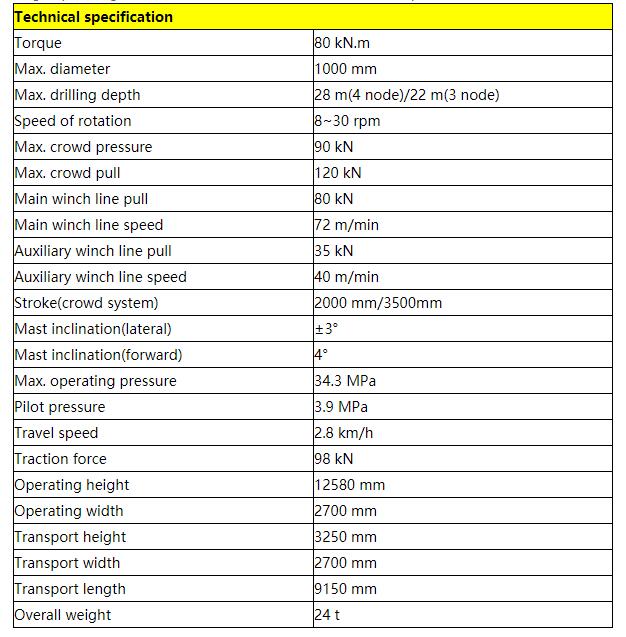

Technical Specifications
Overview
High-Performance Foundation Drilling
This hydraulic rotary piling rig is engineered for efficiency and versatility in foundation construction. Featuring a full hydraulic system and a unique folding mast design, it allows for rapid transition between transport and working states. The rig incorporates advanced drilling bucket depth measurement and automatic verticality technology to ensure high precision, while complying with international safety standards for reliable operation in demanding environments.
Key Performance Metrics
Key Performance Metrics
80 kN.m
Torque
1,000 mm
Max. Diameter
28 m
Max. Drilling Depth
24 t
Overall Weight
Operational Specifications
Drilling Performance
| Parameter | Value |
|---|---|
| Rotation Speed | 8~30 rpm |
| Max. Crowd Pressure | 90 kN |
| Max. Crowd Pull | 120 kN |
| Main Winch Line Pull | 80 kN |
| Main Winch Line Speed | 72 m/min |
Hydraulic System
| Component | Rating |
|---|---|
| Max. Operating Pressure | 34.3 MPa |
| Pilot Pressure | 3.9 MPa |
Physical Dimensions
Transport Dimensions
- Length: 9150 mm
- Width: 2700 mm
- Height: 3250 mm
Features
- Safety & Control Features
- EN791 Safety Standard CompliantAutomatic VerticalityDepth Measurement SystemMain Winch Bottoming ProtectionLuminous Hot Wheel
