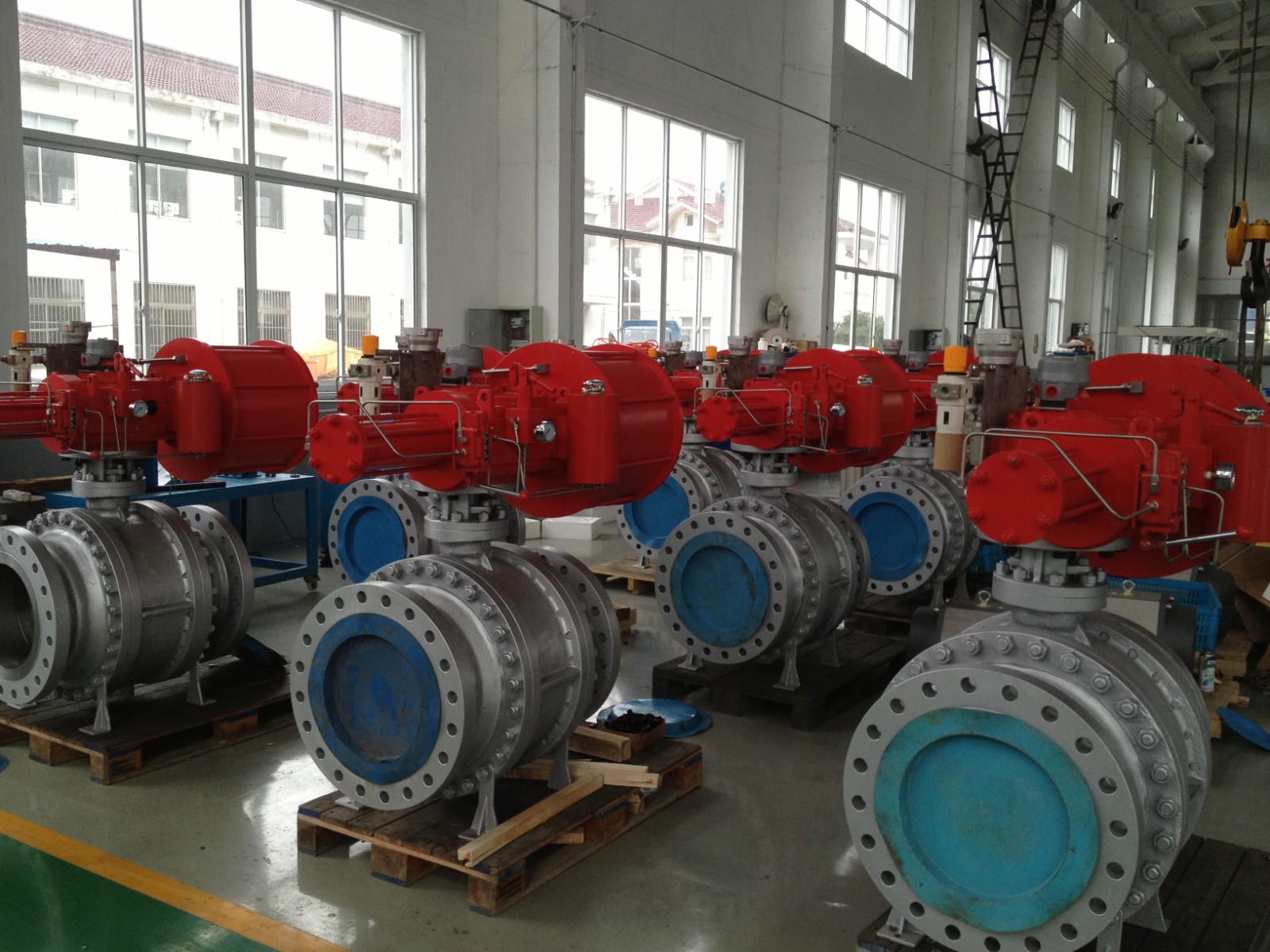

Hydraulic Rotary Actuator
This hydraulic rotary actuator is designed for a supply pressure up to 200 bar. The actuator thrust output reaches up to 25000 N.
Technical Specifications
Product Overview
High-Performance Hydraulic Rotary Actuator
This series of hydraulic actuators is engineered for robust industrial performance, offering both single and double-acting configurations. Built entirely from durable carbon steel, the design ensures longevity and reliability even in the most demanding environments. With advanced features such as an integral manual override and 17.4 PH stainless steel piston rods, these units provide precise control and excellent corrosion resistance for heavy-duty applications.
Performance Metrics
Max Supply Pressure
200 bar
Design Pressure
Thrust Output
25,000 N
Actuator Thrust
71,753 N
Spring Thrust
Technical Specifications
Compliance Standards
- ASME VIII div.1
- EN 13445
- ASTM B633 FeZn 12
- Operating Temperature
- -20°C to +80°C (Special applications up to -40°C)
- Construction Materials
- Carbon Steel17.4 PH Stainless SteelASTM A 320 L7 Alloy Steel
Key Features
Core Functionalities
- Single and double-acting configurations
- Visual position indicator
- Integral manual override
- Dynamic floating O-ring seals
- Optional hammer blow effect for wedge gate valves
