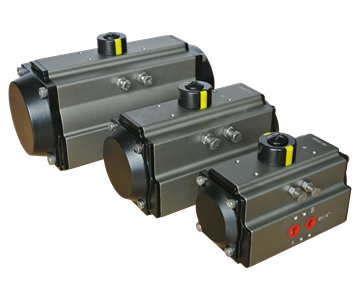

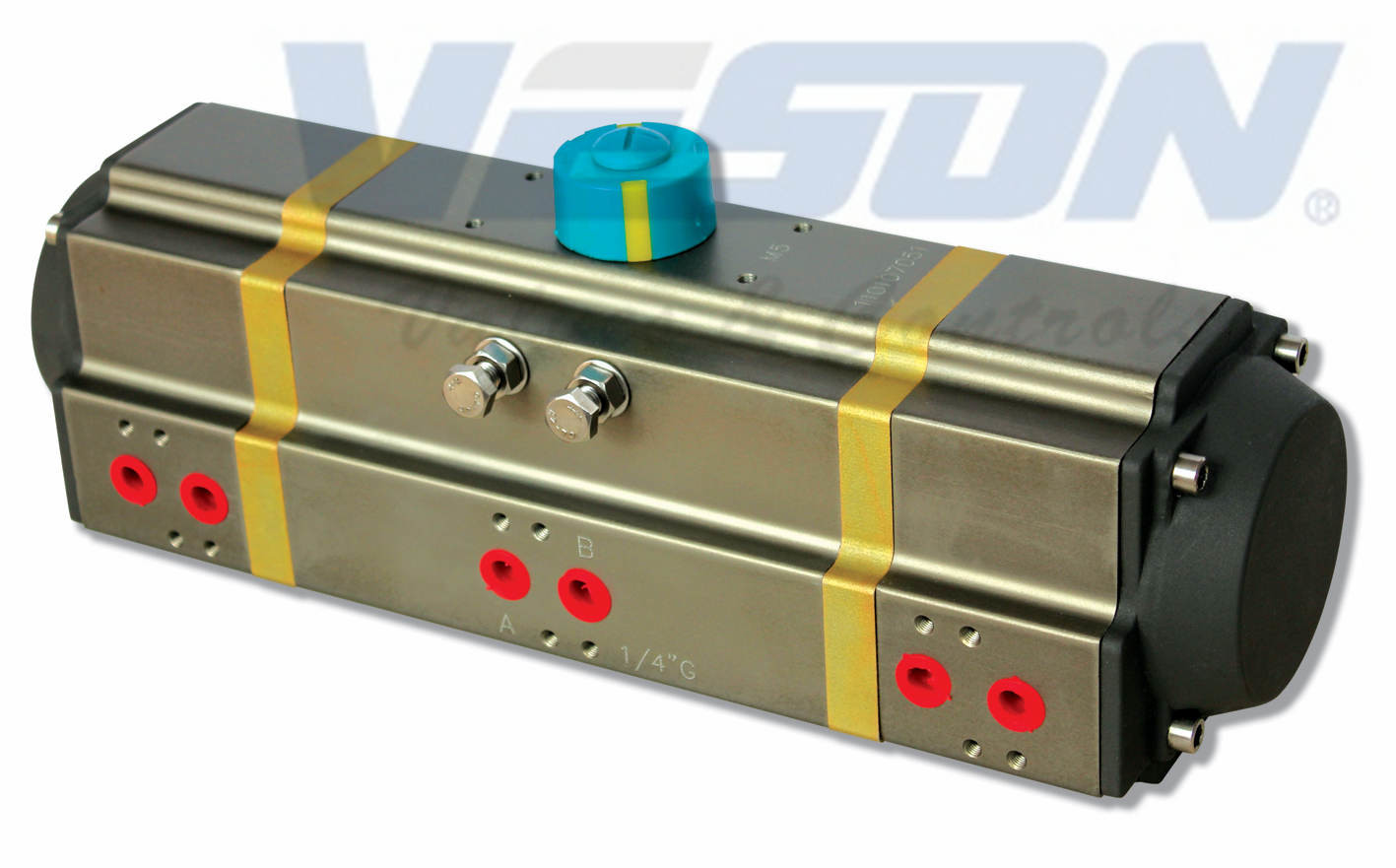

Hydraulic Rotary Actuator
This hydraulic rotary actuator is designed for supply pressure up to 200 bar. The actuator delivers thrust output up to 25000 N.
Technical Specifications
Overview
Industrial Hydraulic Rotary Actuator
The VSF series hydraulic actuator offers robust performance through a scotch yoke mechanism, designed for high-pressure industrial valve control applications. Built entirely from carbon steel, this actuator supports supply pressures up to 200 bar and features an interchangeable component design for ease of maintenance. With integrated manual override, visual position indicators, and corrosion-resistant stainless steel piston rods, it ensures reliable operation in demanding environments.
Performance Metrics
Key Performance Metrics
200 bar
Max Design Pressure
25,000 N
Actuator Thrust
71,753 N
Spring Thrust
Operating Conditions
- Temperature Range
- -20°C to +80°C (Standard), down to -40°C (Optional)
Technical Construction
- Materials Used
- Carbon Steel17.4 PH Stainless SteelASTM A 320 L7 Alloy Steel
Standards & Compliance
Design Compliance
- ASME VIII div.1
- EN 13445
- ASTM B633 FeZn 12
Features
Key Features
Manual OverrideVisual Position IndicatorFloating O-ring SealsCorrosion Resistant
