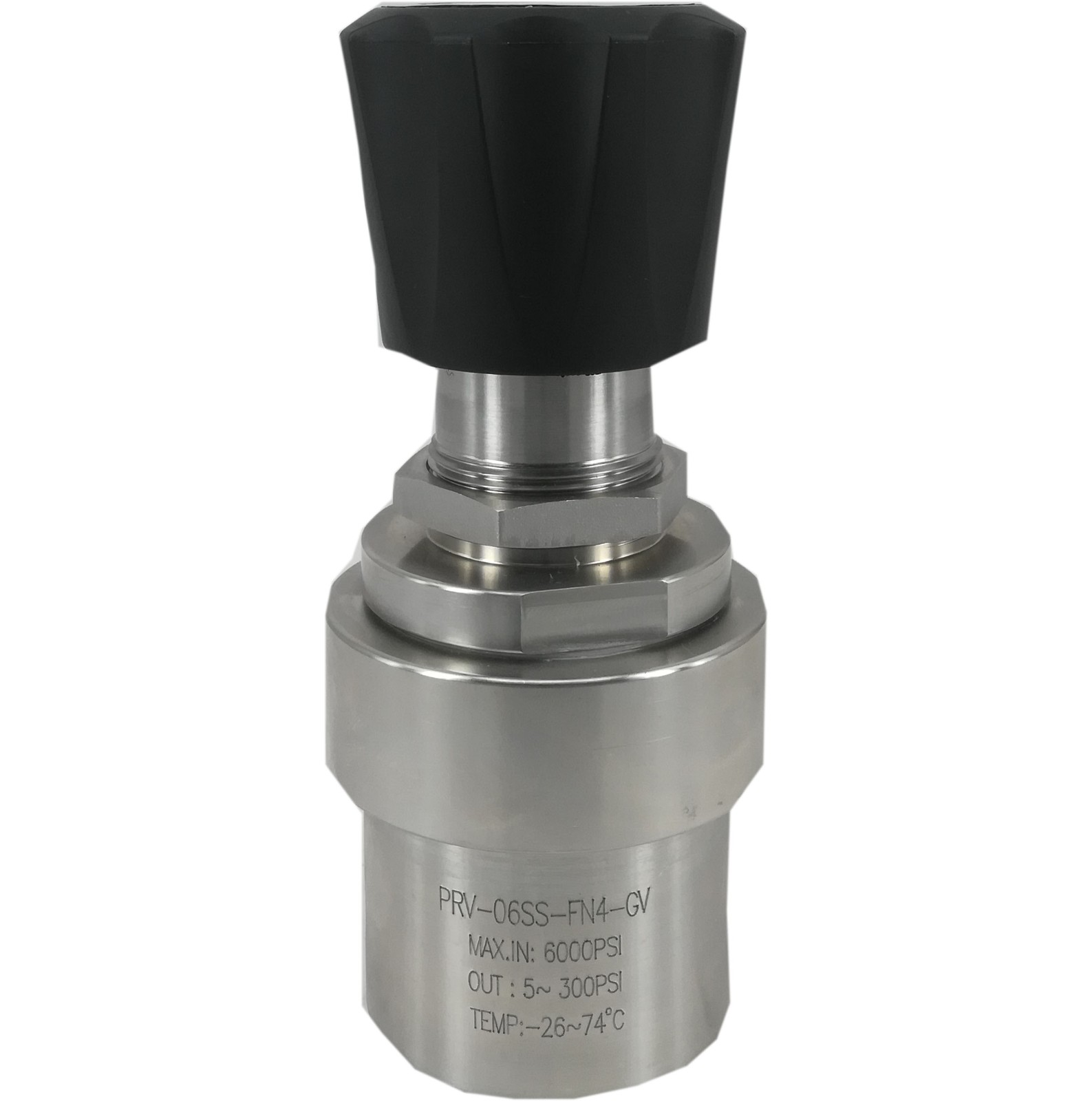

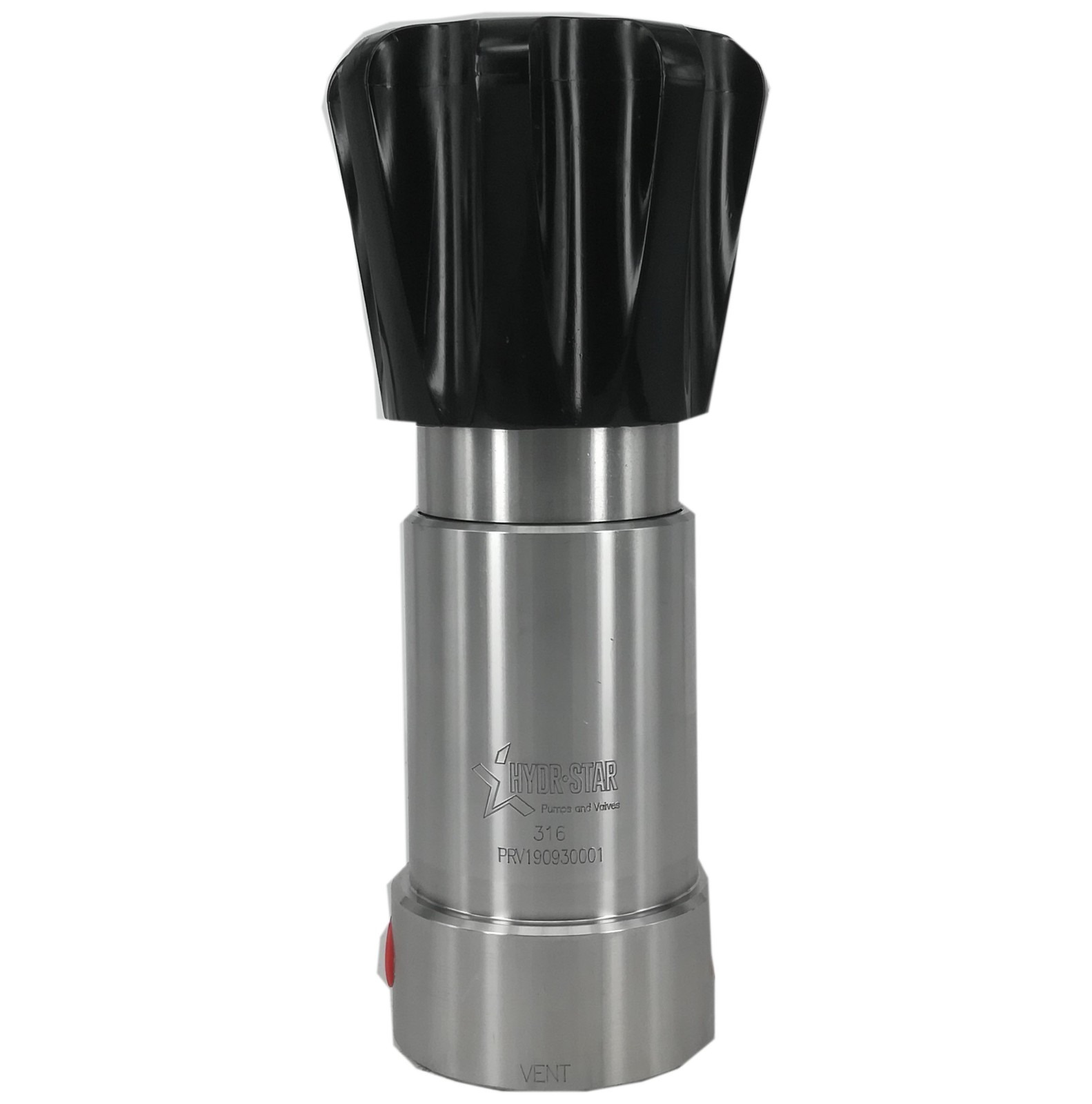

Hydraulic Pressure Regulator
This hydraulic pressure regulator precisely controls pressure in hydraulic systems. Adjusting the handle modifies spring tension to regulate output pressure, and a vent port releases downstream pressure when it exceeds the set level.
Technical Specifications
Overview
High-Performance Hydraulic Pressure Regulator
This spring-loaded pressure reducing regulator is engineered for precision and safety in demanding hydraulic applications. Constructed from durable 316 stainless steel, it offers excellent corrosion resistance and reliable metal-to-metal sealing. The piston-sensed design ensures consistent performance, while the user-friendly handle allows for easy clockwise or counter-clockwise adjustment of output pressure.
Technical Specifications
Key Design Features
Piston-sensedMetal-to-metal sealSpring-loadedDownstream vent port
- Maximum Inlet Pressure
- 10000 psig
- Flow Coefficient (Cv)
- 0.12
- Operating Temperature Range
- -15°F to 165°F (-26°C to 74°C)
- Construction Material
- 316 Stainless Steel

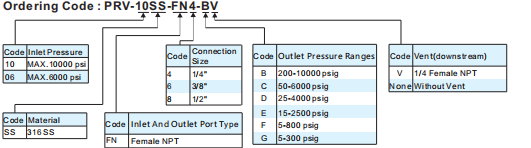

Ordering Configurations
Available Outlet Pressure Ranges
| Code | Pressure Range (psig) |
|---|---|
| B | 200-10000 |
| C | 50-6000 |
| D | 25-4000 |
| E | 15-2500 |
| F | 5-800 |
| G | 5-300 |
Connection Sizes
- 1/4 inch
- 3/8 inch
- 1/2 inch
