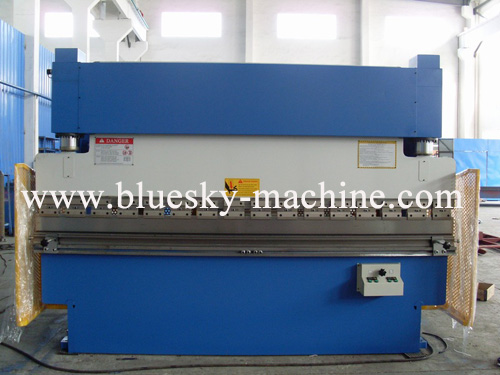

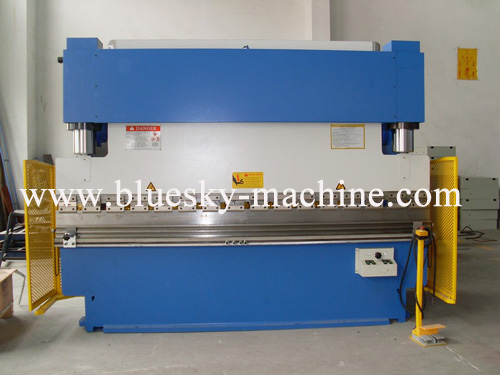

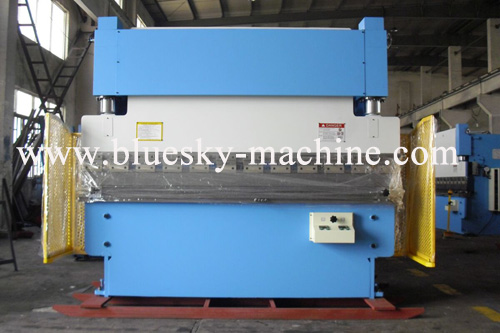

Hydraulic Press Brake for Metal Forming
This hydraulic press brake is designed for precision metal forming. It features a robust frame, hydraulic cylinders for controlled bending force, and a programmable control system for accurate and repeatable results.
Technical Specifications
Overview
Precision Metal Forming Solution
This hydraulic press brake is engineered for high-precision metal forming and bending applications. Featuring an all-steel welded structure that undergoes vibration stress relief, the machine offers exceptional strength and rigidity for demanding industrial tasks. The hydraulic top-drive system ensures stable performance, while the integrated mechanical stop unit and synchronous torque capabilities provide consistent, repeatable results.
Construction & Design
- Frame Construction
- All-steel welded structure with vibration stress relief
- Drive System
- Hydraulic top-drive
- Key Features
- High RigidityVibration Stress RelievedSynchronous TorqueMechanical Stop Unit
Operation & Control
Adjustment Methods
- Electromotion adjustment for rear stop distance
- Electromotion adjustment for upper slider stroke
- Manual fine adjustment for rear stop distance
- Manual fine adjustment for upper slider stroke
- Control Interface
- Digital display
Advanced Capabilities
Precision Bending Support
The machine is equipped with a deflection compensation unit on the upper die to ensure bending accuracy. For models operating at a pressure of 250T or above, deflection compensation is also included on the lower die to maintain consistency across the entire workpiece.
