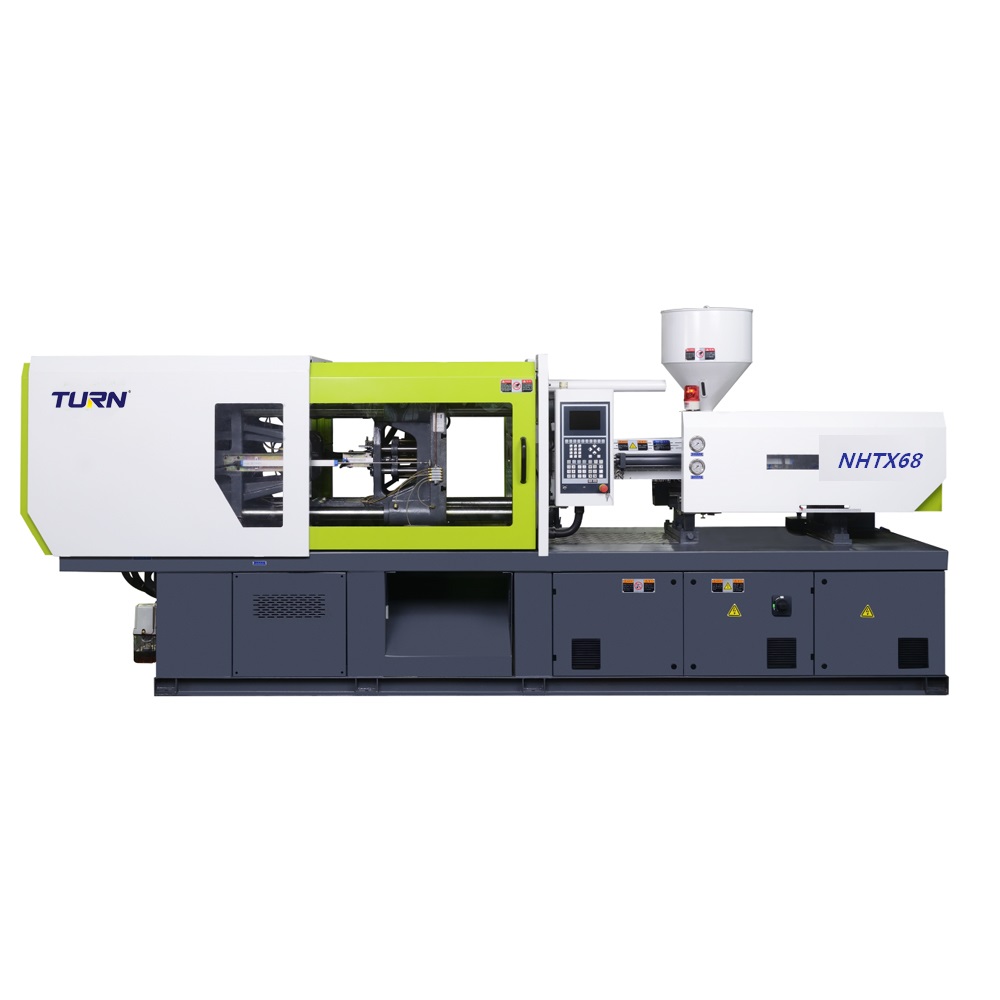

Hydraulic Plastic Injection Molding Machine
This hydraulic plastic injection molding machine is engineered with Japanese technology for sophisticated control. It features rapid response and low energy consumption for efficient operation.
Technical Specifications
Overview
High-Performance Injection Molding

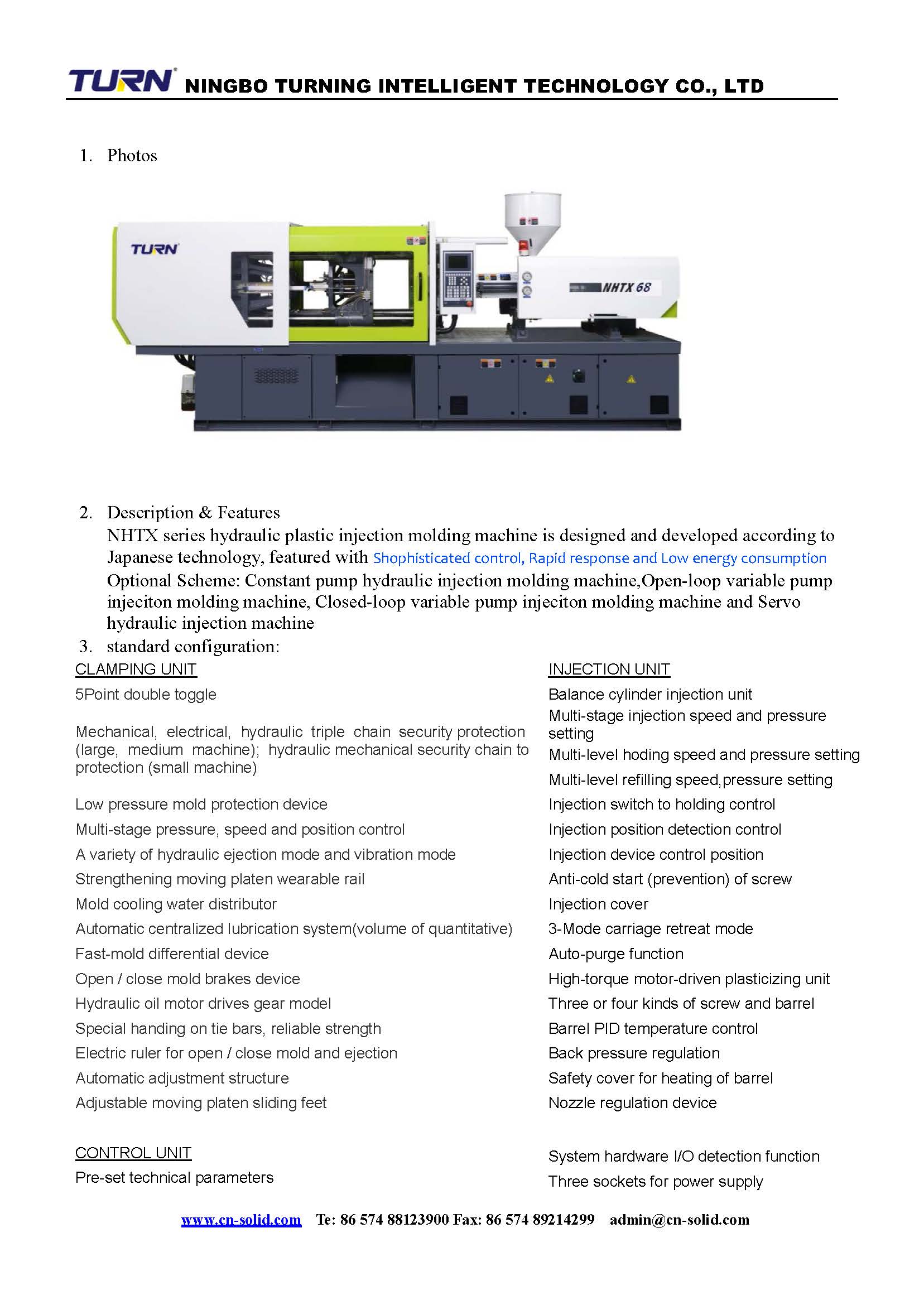

The NHTX series hydraulic plastic injection molding machine is engineered with advanced technology to deliver sophisticated control, rapid response, and low energy consumption. These machines are designed for precision and efficiency, featuring robust clamping units and versatile hydraulic system configurations. With options ranging from constant pump to servo hydraulic schemes, they are suitable for a wide variety of thermoplastic processing applications.
Configuration Options
- Available Hydraulic Schemes
- Constant PumpOpen-loop Variable PumpClosed-loop Variable PumpServo Hydraulic
Technical Specifications
Key Performance Metrics
1,100 KN
Max Clamping Force
260 MPa
Max Injection Pressure
3.4 t
Max Machine Weight

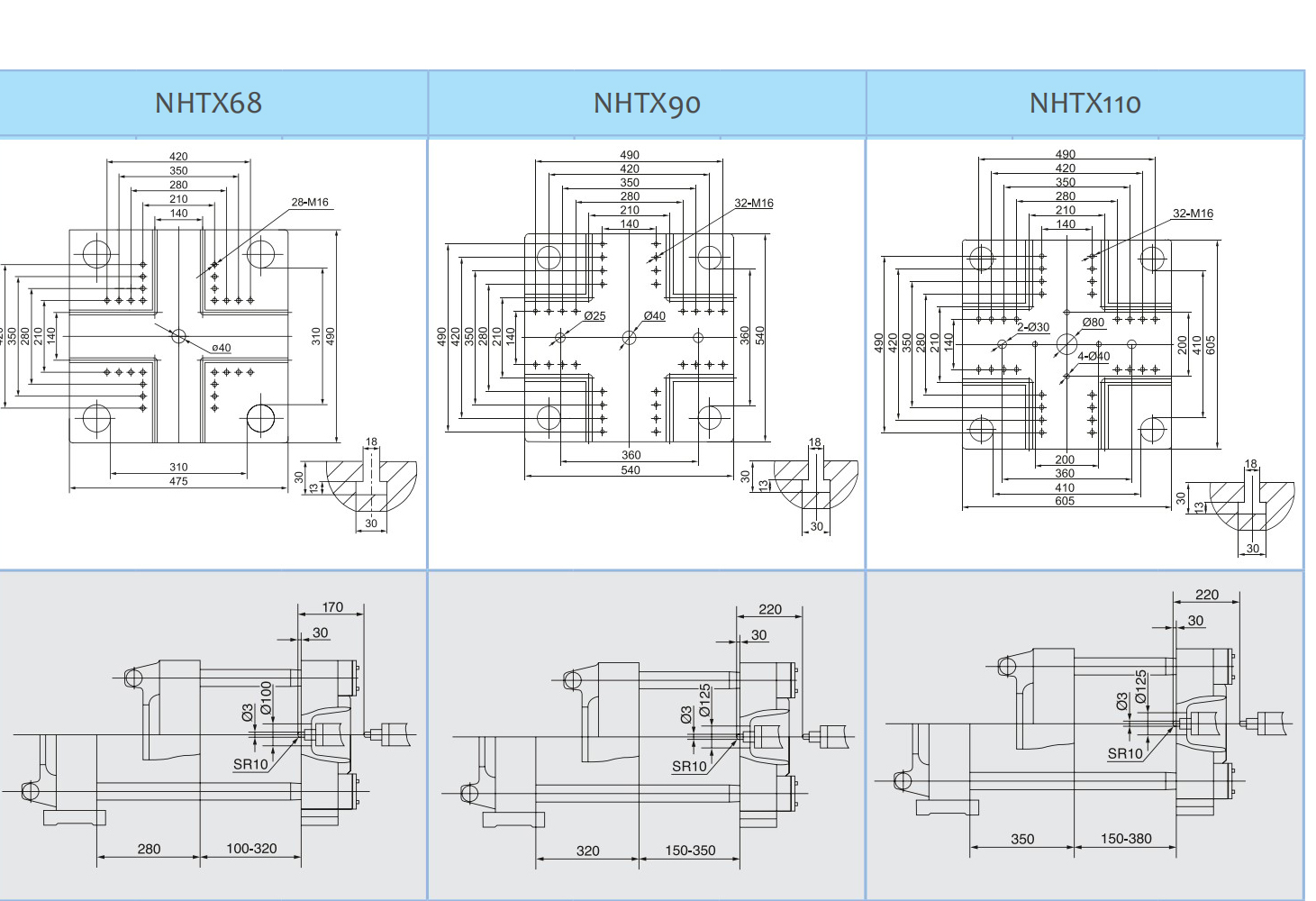

Model Specifications Comparison
| Specification | NHTX68 | NHTX90 | NHTX110 |
|---|---|---|---|
| Clamping Force (KN) | 680 | 900 | 1100 |
| Open Stroke (mm) | 280 | 320 | 350 |
| Tie Bar Space (mm) | 310x310 | 360x360 | 410x410 |
| Pump Motor Power (KW) | 7.5 | 11 | 13 |
| Heating Power (KW) | 6.8 | 7.55 | 8.2 |
Components

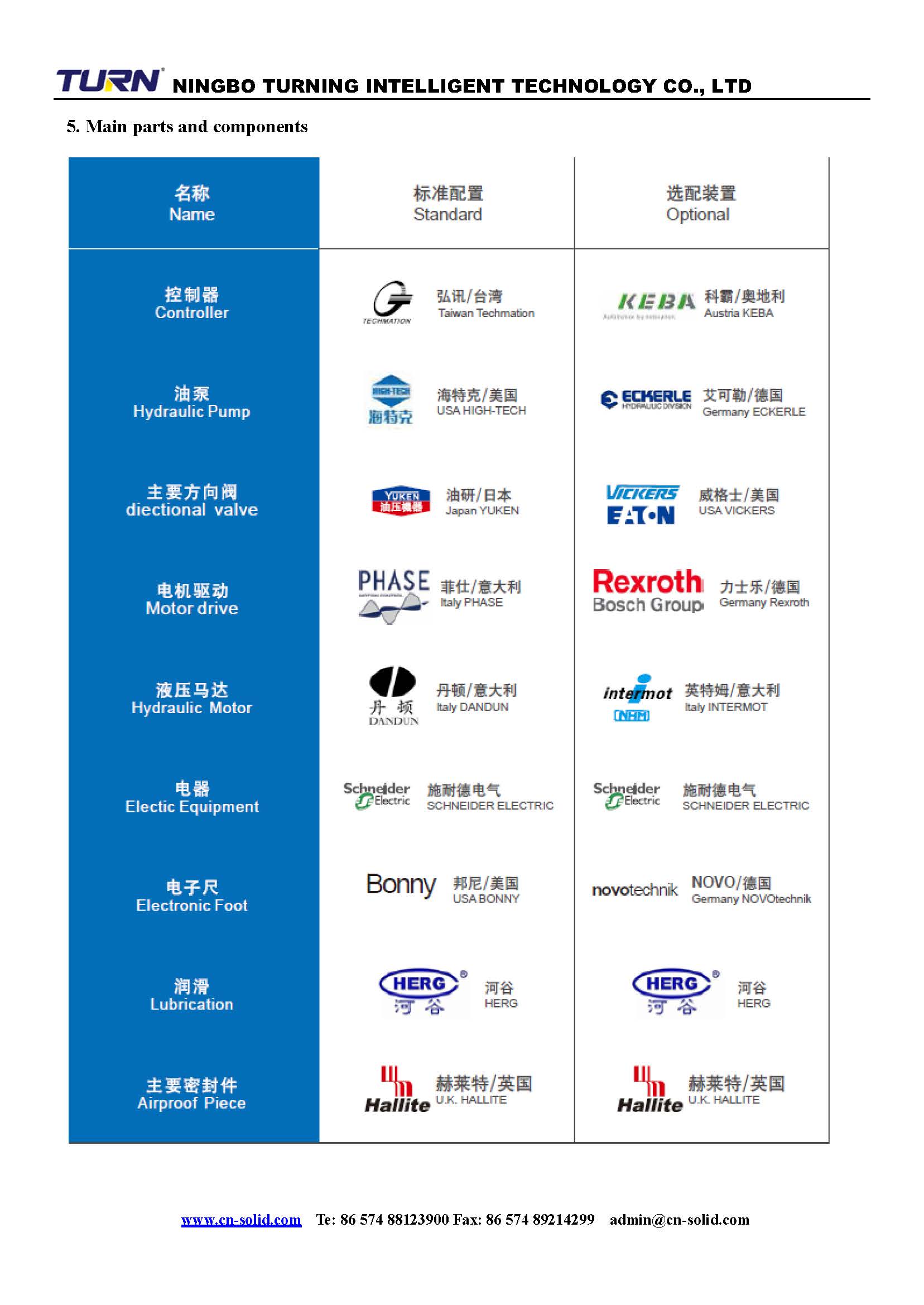

Standard & Optional Components
- Controllers: Techmation (Standard), KEBA (Optional)
- Hydraulic Pumps: High-Tech (Standard), Eckerle (Optional)

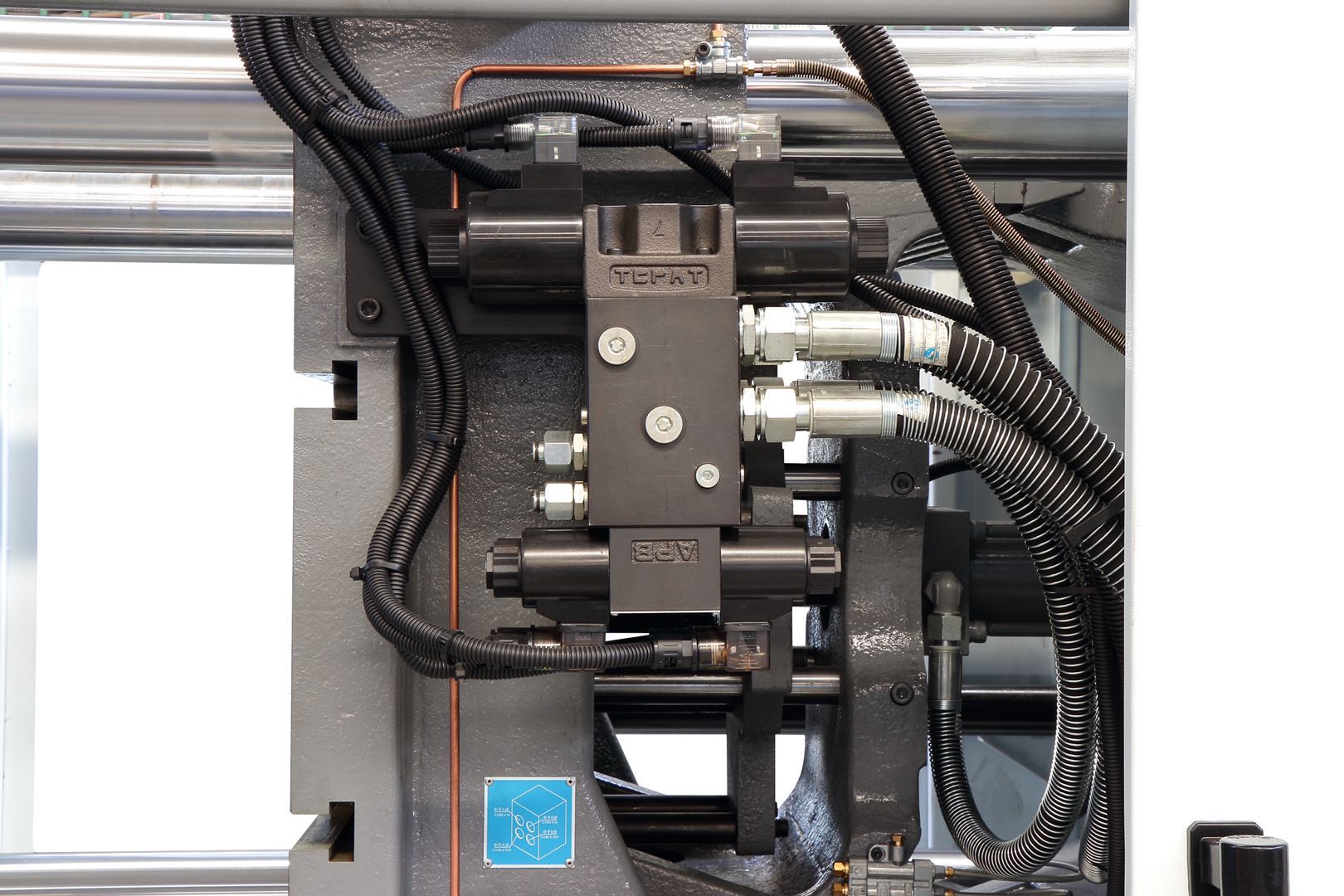

- Directional Valves: Yuken (Standard), Vickers (Optional)
- Motor Drives: Phase (Standard), Rexroth (Optional)
- Hydraulic Motors: Dandun (Standard), Intermot (Optional)
- Electronic Feet: Bonny (Standard), Novotechnik (Optional)
- Lubrication Systems: Herg
- Seals: Hallite
Clamping Unit
Clamping Unit Features
5-Point Double ToggleTriple Chain Security ProtectionLow-pressure Mold ProtectionAutomatic LubricationFast-mold Differential Device
Injection Unit
Injection Unit Features
Balance Cylinder InjectionMulti-stage Speed/Pressure SettingsAnti-cold Start Screw ProtectionBarrel PID Temperature ControlAuto-purge Function
