Hydraulic Plastic Injection Molding Machine
This hydraulic plastic injection molding machine is designed for sophisticated control, rapid response, and low energy consumption. It is ideal for producing high-quality plastic parts with consistent results.
Technical Specifications
Overview

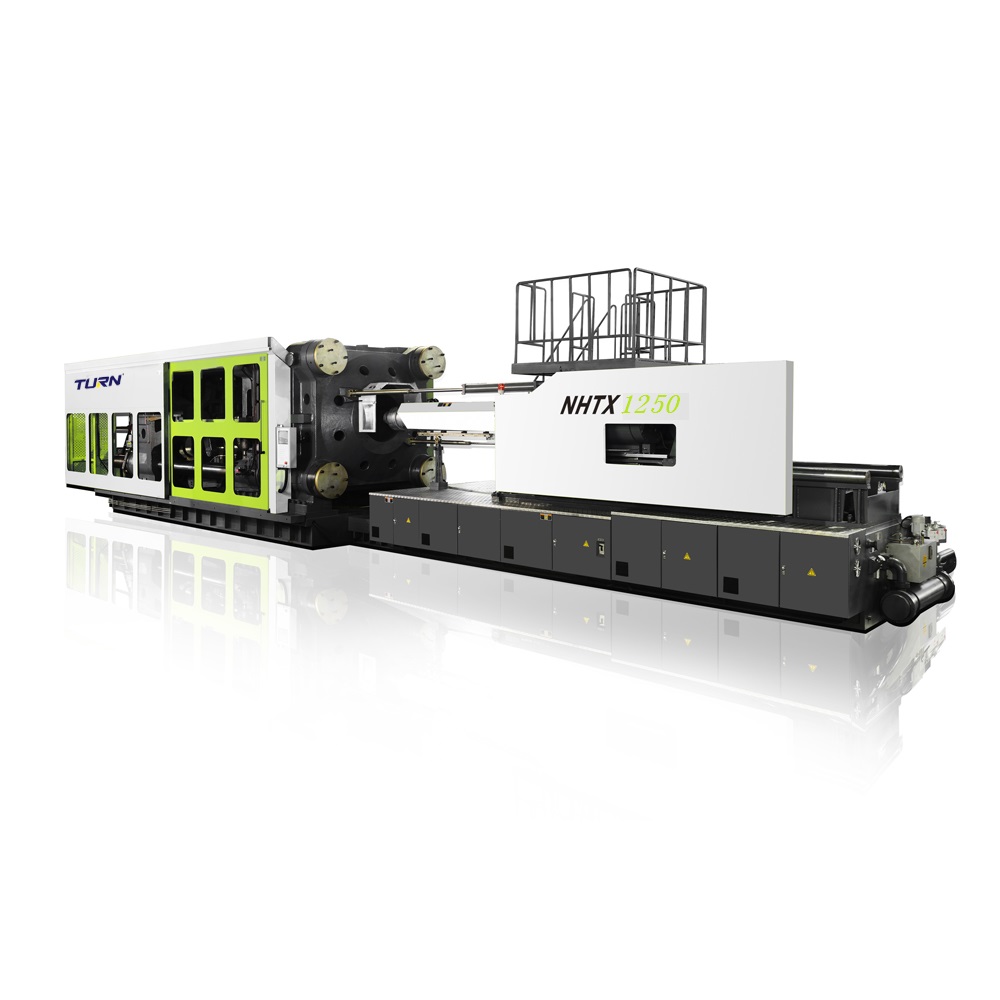

NHTX Series Hydraulic Injection Molding Machine
The NHTX series is a high-performance hydraulic plastic injection molding machine engineered with advanced Japanese technology to deliver sophisticated control and rapid response times. Designed for efficiency and durability, it features low energy consumption and a robust structure suitable for high-volume production across automotive, electronics, and consumer goods industries. The system offers versatile configuration options, including constant pump, variable pump, and servo hydraulic schemes to meet specific operational requirements.
Key Features
- Core Features
- Japanese TechnologySophisticated ControlRapid ResponseLow Energy ConsumptionRobot Interface Ready
Technical Specifications
Performance Parameters
| Specification | NHTX1250 | NHTX1500 | NHTX1800 |
|---|---|---|---|
| Clamping Force (kN) | 12500 | 15000 | 18000 |
| Max. Pump Pressure (MPa) | 16 | 16 | 16 |
| Heating Power (kW) | 74.4 | 81.9 | 94.9 |
| Machine Weight (t) | 59 | 83 | 123 |

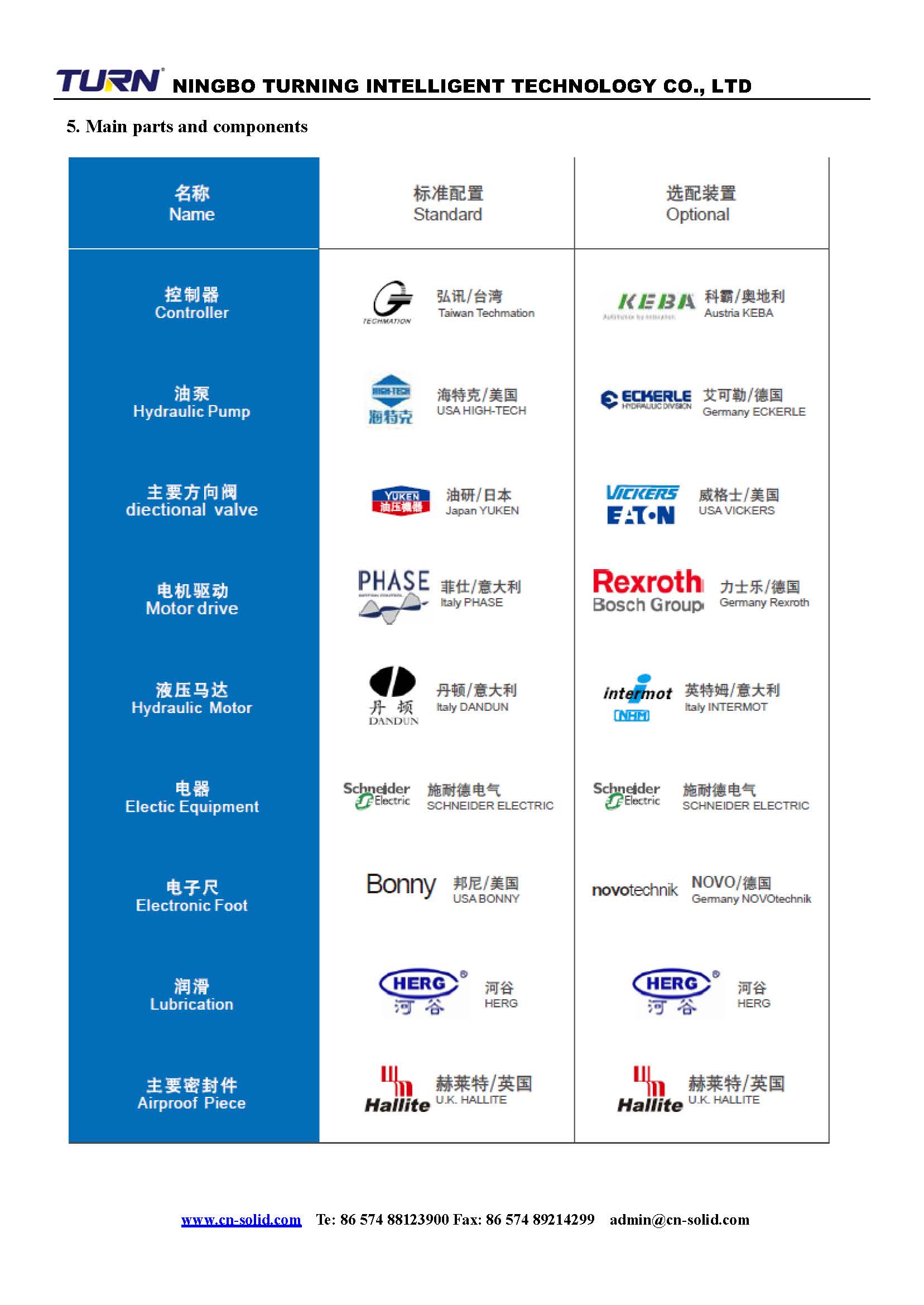

System Components
Standard & Optional Components
- Controllers: Techmation / KEBA
- Hydraulic Pumps: USA High-Tech / Eckerle
- Directional Valves: Yuken / Vickers Eaton
- Motor Drives: Phase / Rexroth Bosch Group
- Hydraulic Motors: Dandun / Intermot
- Electric Equipment: Schneider Electric
- Electronic Feet: Bonny / Novotechnik
- Lubrication Systems: HERG
- Airproof Pieces: Hallite

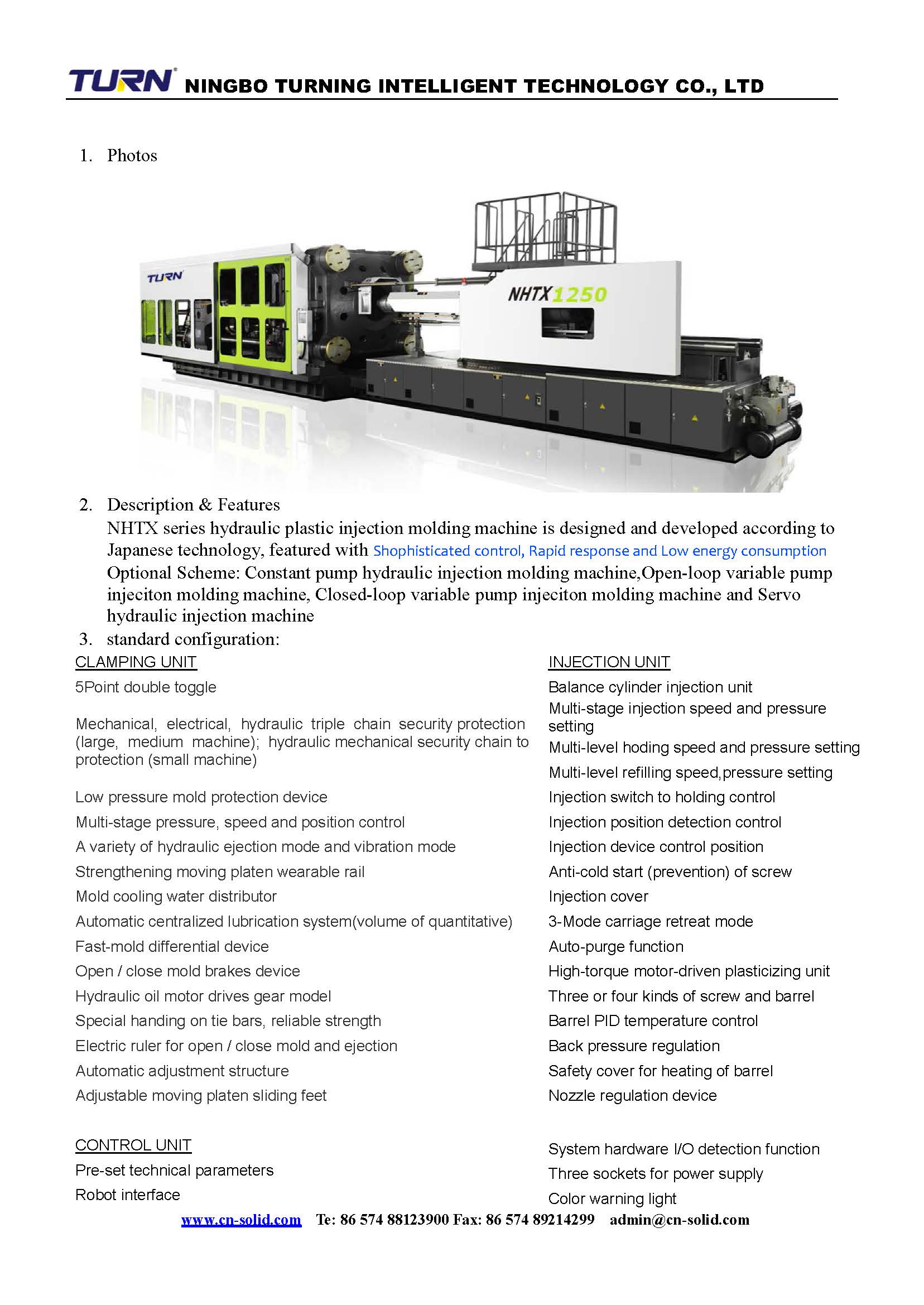

Clamping Unit
Clamping System Configuration
- 5-Point double toggle system
- Mechanical, electrical, and hydraulic triple chain security protection
- Low pressure mold protection device
- Strengthening moving platen wearable rail
- Automatic centralized lubrication system
- Fast-mold differential device
Injection Unit
Injection Unit Features
- Balance cylinder injection unit
- Multi-stage injection speed and pressure setting
- Multi-level holding speed and pressure setting
- Anti-cold start screw protection
- 3-Mode carriage retreat
- High-torque motor-driven plasticizing unit
