Hydraulic Plastic Injection Molding Machine
This hydraulic plastic injection molding machine is engineered with Japanese technology for sophisticated control. It features rapid response and low energy consumption.
Technical Specifications
Overview

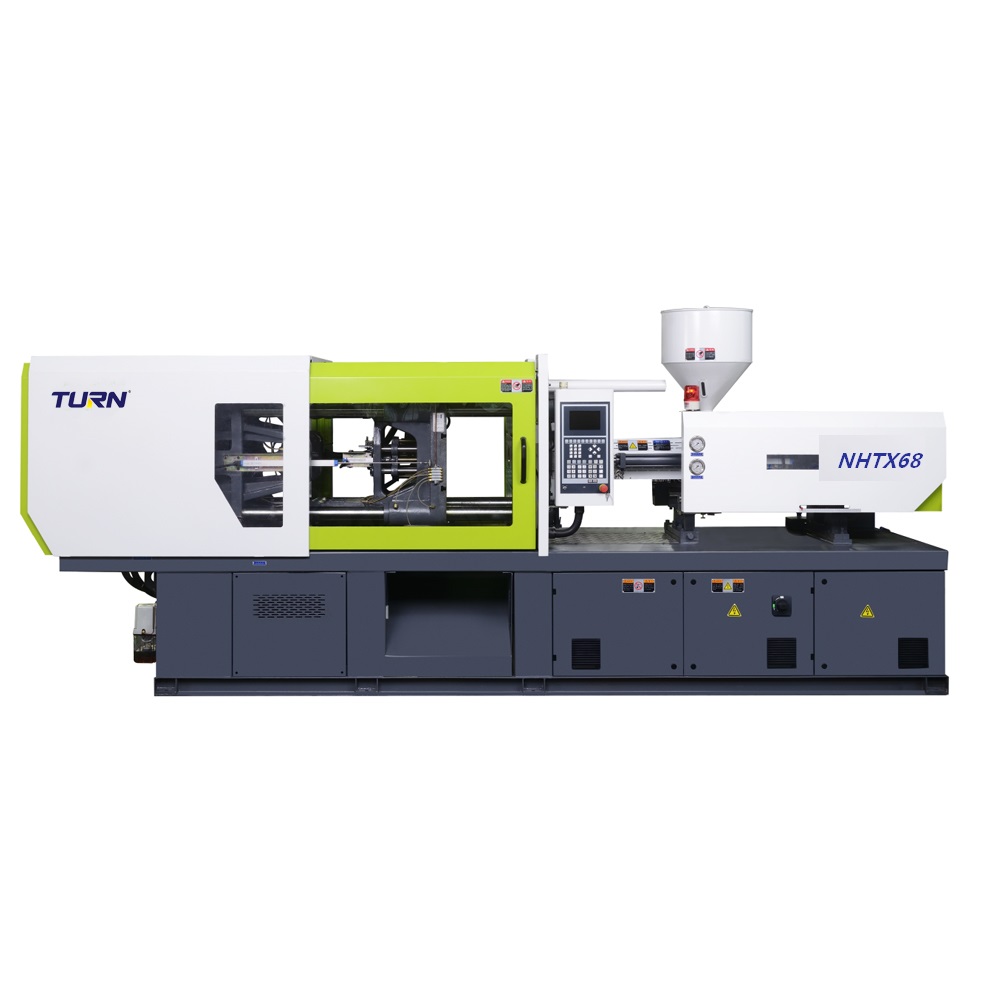

NHTX Series Injection Molding Machine
This high-performance hydraulic plastic injection molding machine is engineered for precision, rapid response, and low energy consumption. Designed with advanced technology, the series offers versatile configurations including constant pump, open-loop variable pump, closed-loop variable pump, and servo hydraulic options. It is built for reliability and efficiency, ensuring consistent product quality and high throughput for demanding industrial manufacturing applications.

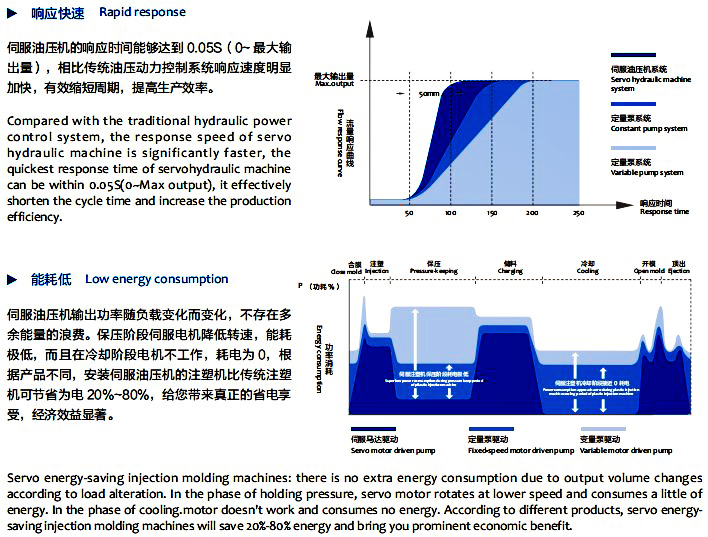

Performance & Efficiency
- Response Time
- 0.05 s

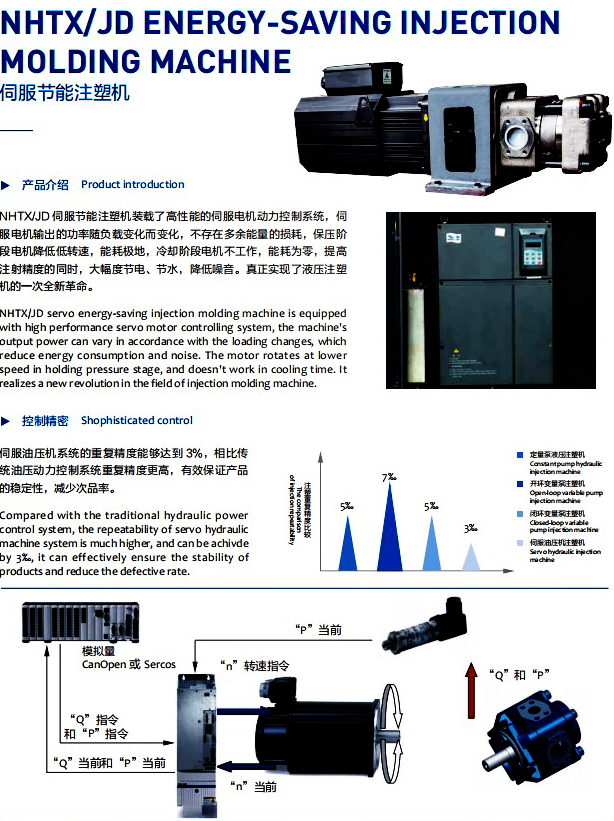

- Energy Savings
- 20% - 80% compared to traditional machines
- Available Drive Systems
- Constant PumpOpen-Loop Variable PumpClosed-Loop Variable PumpServo Hydraulic
Technical Specifications
Key Model Specifications
| Feature | NHTX780 | NHTX1000 |
|---|---|---|
| Clamping Force | 7800 kN | 10000 kN |
| Screw Diameter (Range) | 90-110 mm | 90-115 mm |
| Injection Pressure | 199-232 MPa | 200-255 MPa |

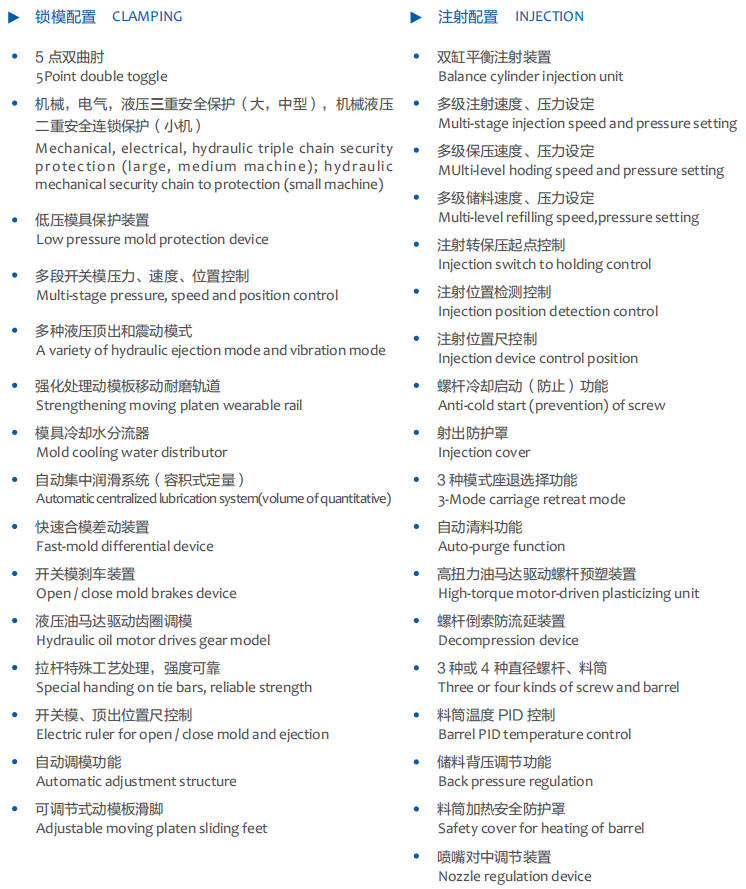

Clamping System
Clamping Configuration
- 5-point double toggle system
- Mechanical, electrical, and hydraulic triple chain security protection
- Low-pressure mold protection
- Automatic centralized lubrication system
- Fast-mold differential device
- Strengthening moving platen wearable rail
Injection System
Injection Configuration
- Balance cylinder injection unit
- Multi-stage injection speed and pressure control
- High-torque motor-driven plasticizing unit
- Anti-cold start screw protection
- Barrel PID temperature control
- 3-mode carriage retreat selection

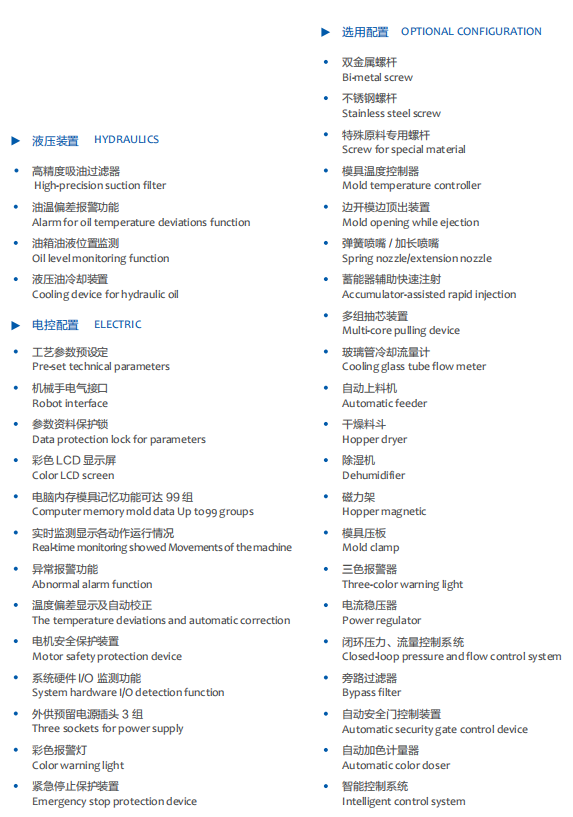

Optional Configurations
Optional Upgrades
Bi-metal screwStainless steel screwMold temperature controllerAccumulator-assisted injectionMulti-core pullingAutomatic feederDehumidifierClosed-loop control
