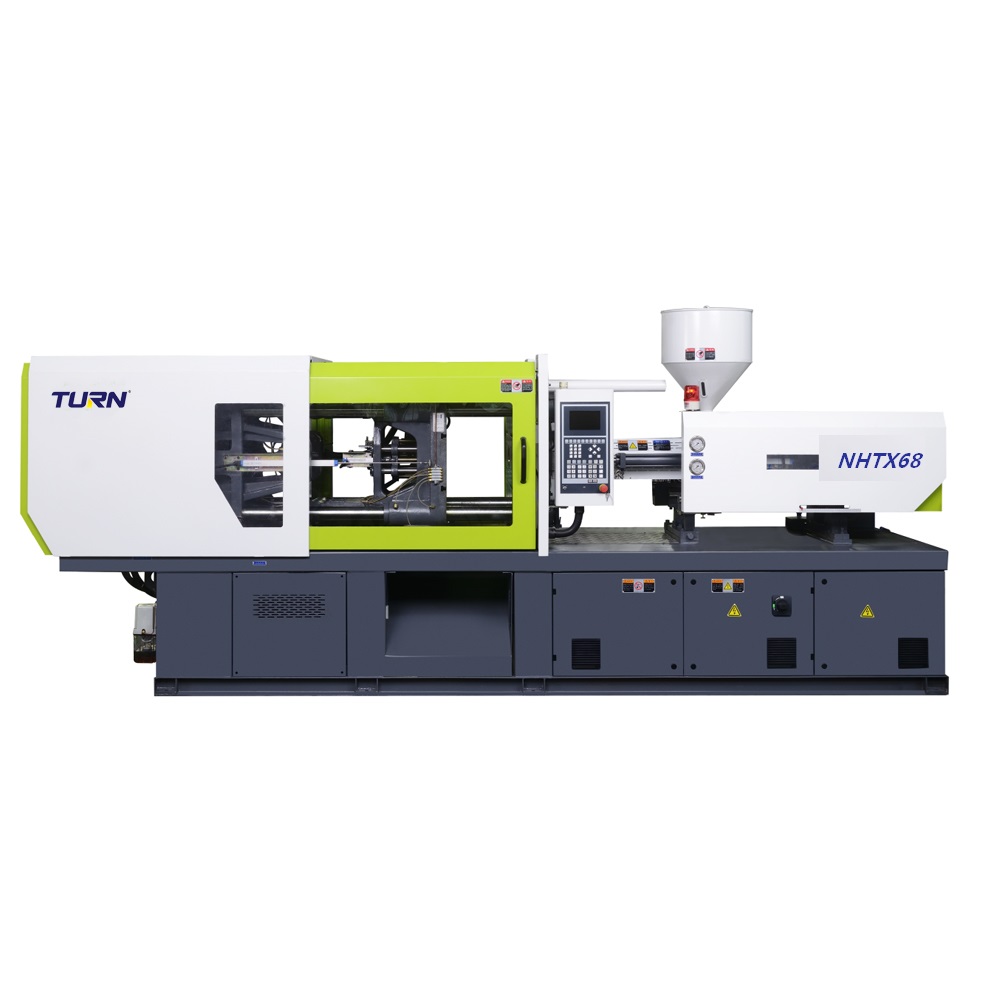

Hydraulic Plastic Injection Molding Machine
The NHTX series hydraulic plastic injection molding machine is designed with Japanese technology for sophisticated control. It features rapid response and low energy consumption.
Technical Specifications
Overview
High-Performance Hydraulic Injection Molding
The NHTX series hydraulic plastic injection molding machine is engineered with advanced technology to deliver sophisticated control, rapid response times, and superior energy efficiency. Designed for precision manufacturing, this series offers flexible configuration options, including constant pump, variable pump, and servo-driven hydraulic systems to suit diverse production needs. Built for reliability and safety, it features robust clamping mechanisms, automated monitoring, and intelligent fault detection to ensure consistent quality and operational safety.
Technical Specifications
Injection Unit Parameters
| Specification | NHTX140 | NHTX160 | NHTX200 |
|---|---|---|---|
| Screw Diameter (mm) | 38/42/45 | 42/45/50 | 45/50/55 |
| Shot Volume (cm³) | 193-270 | 305-432 | 340-510 |
| Injection Pressure (MPa) | 139-205 | 143-203 | 139-207 |
| Injection Rate (g/s) | 94-132 | 138-196 | 124-186 |

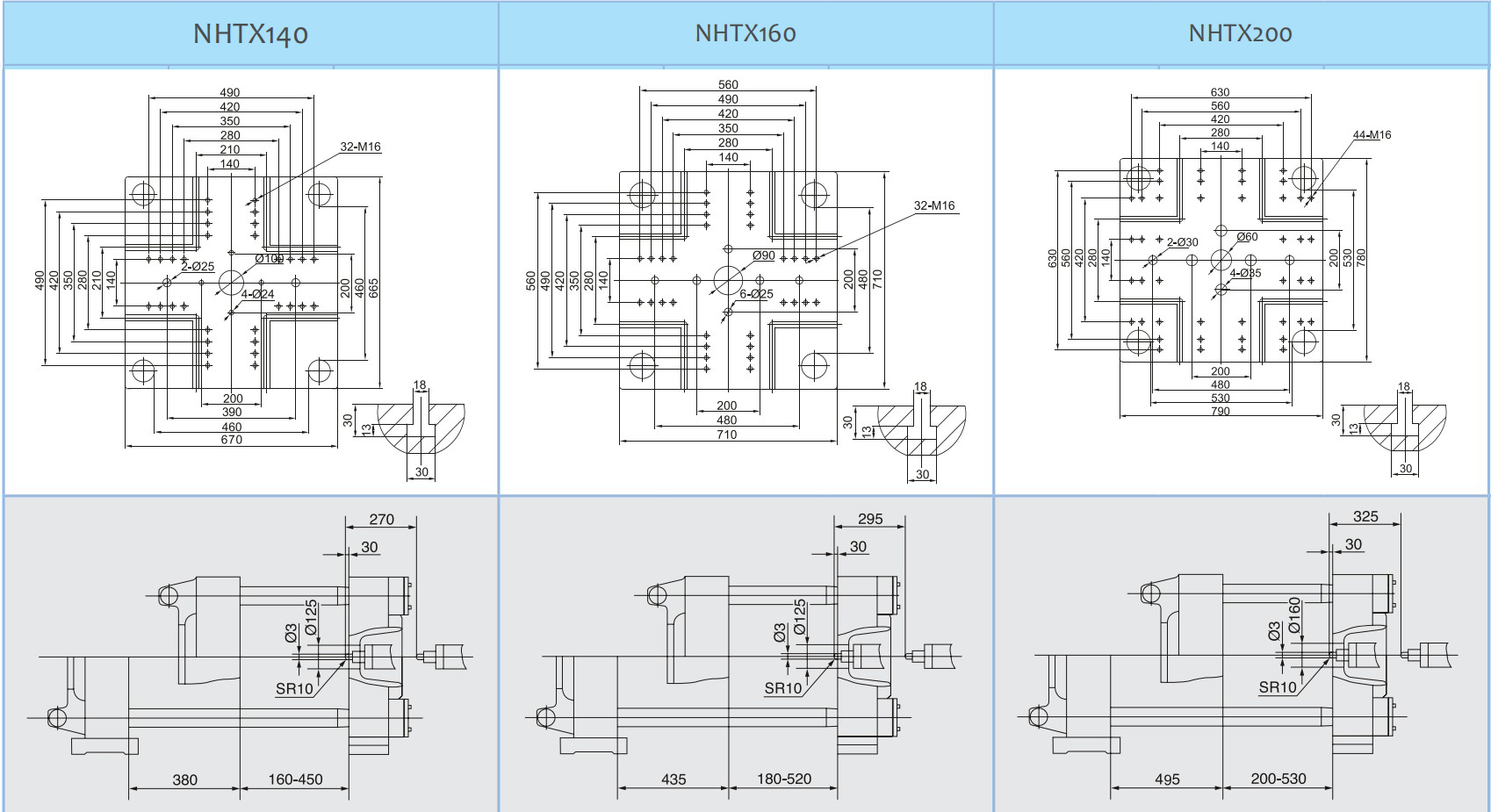

Clamping Unit Parameters
| Specification | NHTX140 | NHTX160 | NHTX200 |
|---|---|---|---|
| Clamping Force (KN) | 1400 | 1600 | 2000 |
| Open Stroke (mm) | 380 | 435 | 495 |
| Max Mold Height (mm) | 450 | 520 | 530 |
| Tie Bar Space (mm) | 460x460 | 480x480 | 530x530 |

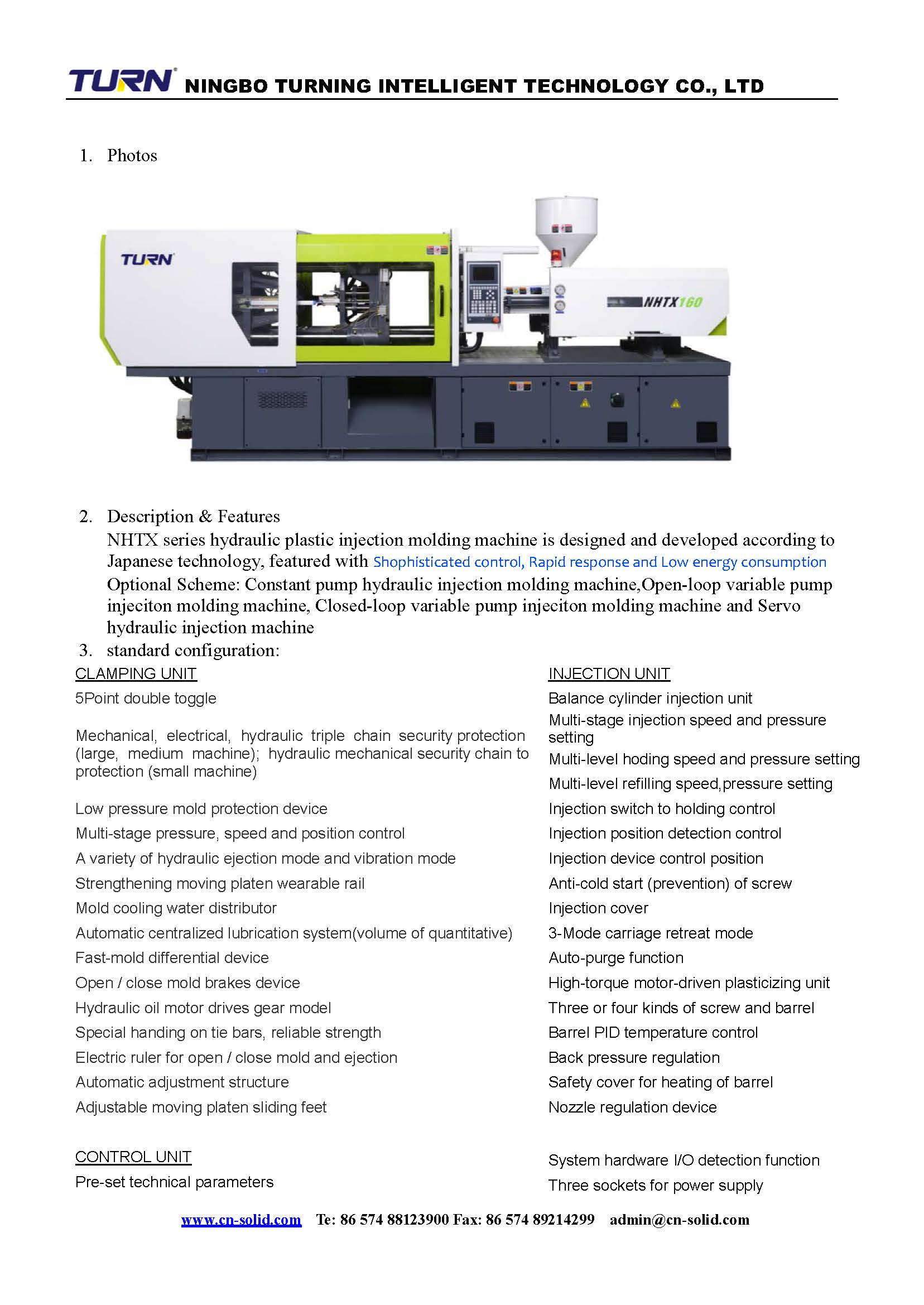

Features
- Clamping Unit Features
- 5-Point Double ToggleTriple Chain Security ProtectionLow Pressure Mold ProtectionAutomatic Centralized LubricationFast-Mold Differential Device
- Injection Unit Features
- Balance Cylinder InjectionMulti-Stage Speed/Pressure ControlAnti-Cold Start ProtectionAuto-Purge FunctionPID Barrel Temperature Control
System Metrics
Machine Performance
16 MPa
Max Pump Pressure
99 Groups
Mold Data Memory
300 L
Max Oil Tank Capacity
Hydraulic System Options
- Constant Pump System
- Open-loop Variable Pump System
- Closed-loop Variable Pump System
- Servo Hydraulic System
