Hydraulic Pilot Valve Supply Unit
This hydraulic pilot valve supply unit diverts flow in steering and working hydraulic systems at low pressure drop. It can be integrated with a solenoid valve and serves as a substitute for a pilot pump.
Technical Specifications
Overview
High-Efficiency Hydraulic Pilot Control
This hydraulic pilot valve supply unit is designed to efficiently divert flow in steering and working hydraulic systems with minimal pressure drop. It serves as a compact and reliable substitute for traditional pilot pumps, offering stable output pressure and long holding times. The unit's versatile design allows for integration with solenoid valves to meet specific operational requirements in demanding industrial environments.
Key Performance Metrics
Performance Highlights
25 MPa
Max Input Pressure
16 L/min
Rated Flow
40 L/min
Instantaneous Flow

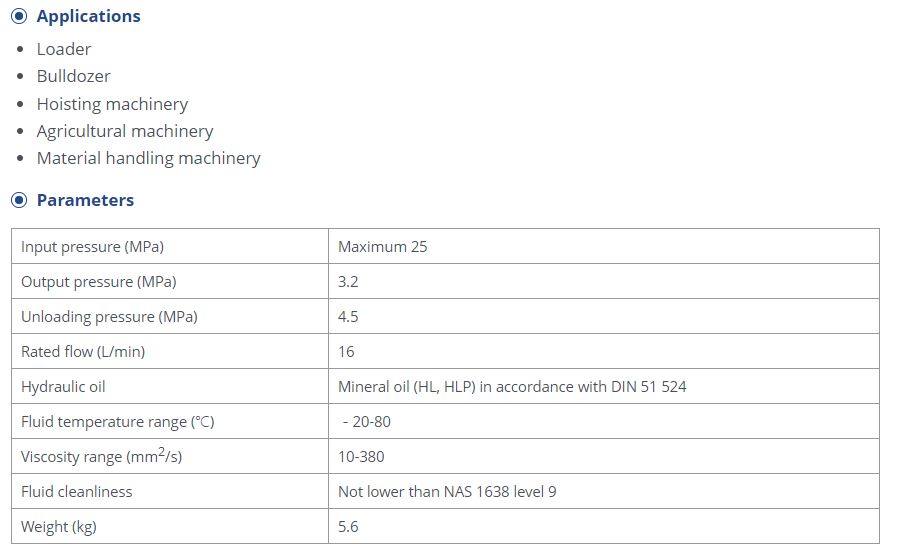

Technical Specifications
Pressure & Flow Ratings
| Parameter | Value |
|---|---|
| Output Pressure | 3.2 MPa |
| Unloading Pressure | 4.5 MPa |
| Weight | 5.6 kg |
Operating Conditions
Fluid & Temperature Requirements
| Property | Requirement |
|---|---|
| Hydraulic Oil Type | Mineral oil (HL, HLP) per DIN 51 524 |
| Fluid Temperature Range | -20 to 80 °C |
| Viscosity Range | 10-380 mm²/s |
| Fluid Cleanliness | Not lower than NAS 1638 level 9 |
Applications
- Compatible Machinery
- LoaderBulldozerHoisting MachineryAgricultural MachineryMaterial Handling MachineryMining MachineryUnderground Conveyors
Features
Key Features
- Small and compact design for simple installation
- Low pressure drop during flow diversion
- Stable output pressure with long holding time
- Integratable with solenoid valves
- Durable construction for harsh environments
