Technical Specifications
Overview
Precision Hydraulic Shearing

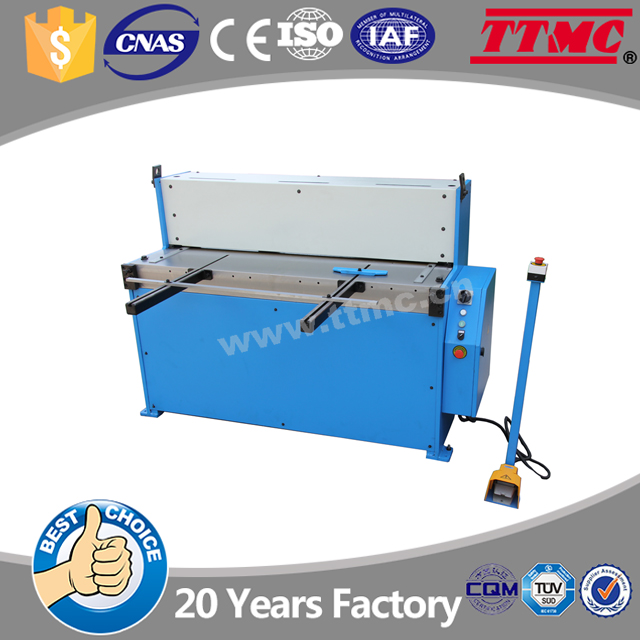

This steel-welded hydraulic shearing machine is engineered for high-precision cutting of mild steel in industrial environments. It features a robust design with high-chromium blades that are reversible for extended service life. Equipped with fine-adjustment front and back gauges and a mobile 24V foot pedal, this machine ensures consistent, accurate, and safe operation for demanding metalworking tasks.
Performance Metrics
Key Performance Metrics
4 mm
Max Shearing Thickness
2,032 mm
Max Shearing Width
15 min
Strokes per Minute
4 kW
Motor Power
Technical Dimensions
Machine Dimensions and Weight
| Metric | Value |
|---|---|
| Back Gauge | 650 mm |
| Front Gauge | 600 mm |
| Net Weight | 1700 kg |
| Gross Weight | 1810 kg |
| Packing Size | 273 x 104 x 160 cm |
- Model Number
- THS-2030X4
Features
Key Features
- Steel-welded construction for enhanced stability
- High chromium blades with double-sided cutting edges
- Mobile 24V foot pedal switch for operator safety
- Fine adjustment capability for front and back gauges
- Included Accessories
- Cutting Blade24V Foot PedalFront GaugeBack Gauge
