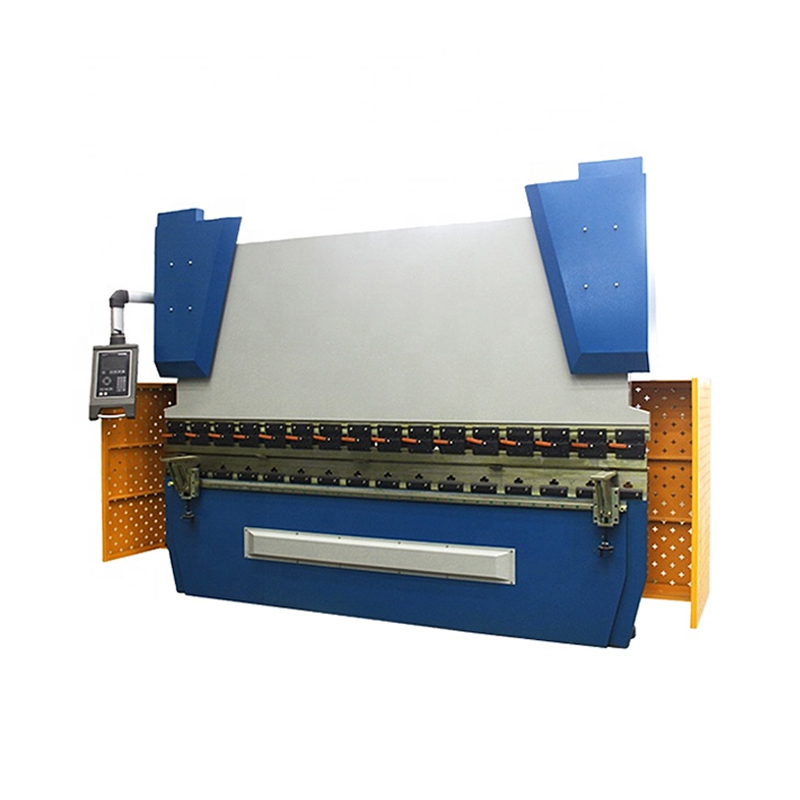

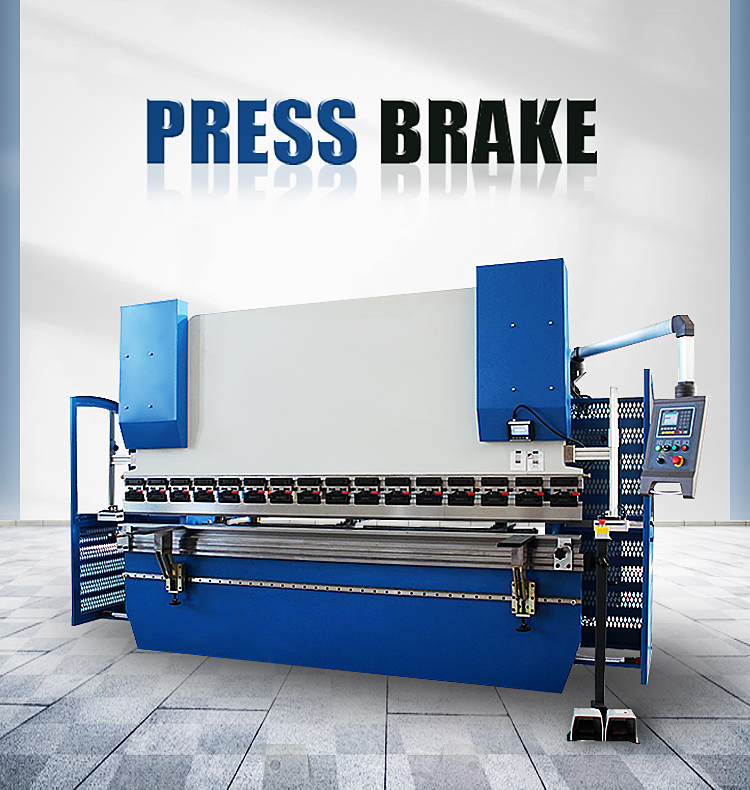

Hydraulic Metal Press Brake 3000 kN 5000 mm
This hydraulic metal press brake is designed for bending and forming metal sheets with precision and efficiency. It features an integrated hydraulic transmission system and electrical adjustment for the rear stopper and sliding block.
Technical Specifications
Product Overview

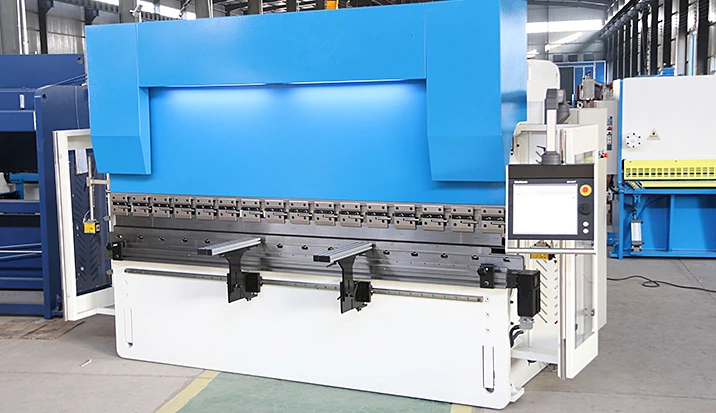

Industrial Hydraulic Metal Press Brake

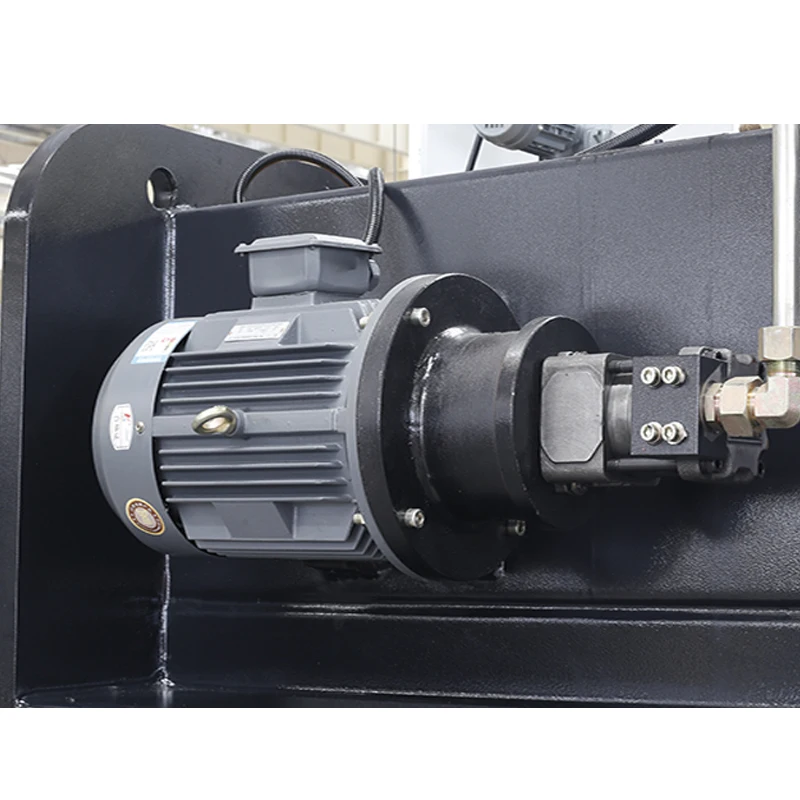

This high-performance hydraulic metal press brake is engineered for industrial metal forming applications, including bending, folding, and straightening. Built with an all-steel welded structure and subjected to vibrating aging treatment, the machine offers exceptional rigidity and stability. It features an integrated hydraulic transmission system that ensures consistent pressure, reliable operation, and a wide range of speed regulation for high-precision metal processing.
Key Performance Metrics
Featured Metrics
3,000 kN
Pressing Force
5,000 mm
Working Length
560 mm
Daylight Opening
250 mm
Ram Stroke
Technical Specifications
Operational Data
| Parameter | Value |
|---|---|
| Model | PB-300/5000 |
| Distance Between Housings | 3820 mm |
| Depth of Throat | 400 mm |
| Approaching Speed | 60 mm/s |
| Working Speed | 5 mm/s |
| Returning Speed | 48 mm/s |
| Ram Travel Adjustment | 110 mm |
Features & Capabilities
Core Functionalities
- Torsion shaft forced synchronization
- Mechanical limit stopper balance

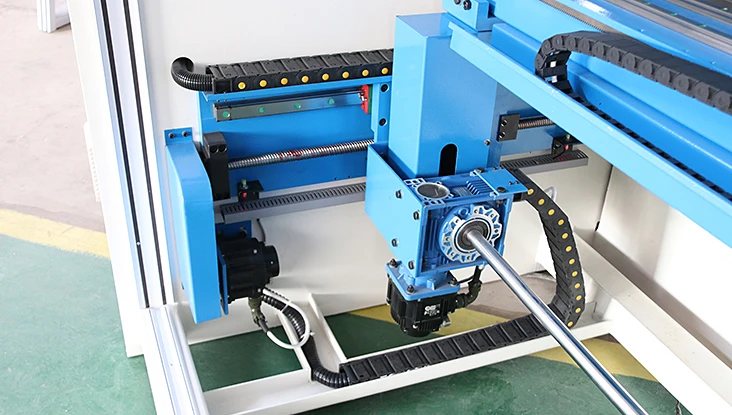

- Electrical adjustment for rear stopper and ram stroke
- Digital indication for fine tuning
- Tilting warp offset mechanism
- Multi-machine combined operation capable
Compliance & Logistics
- Certifications & Terms
- CE Certified1-Year Quality GuaranteePlywood Case PackagingGlobal Shipping Support
