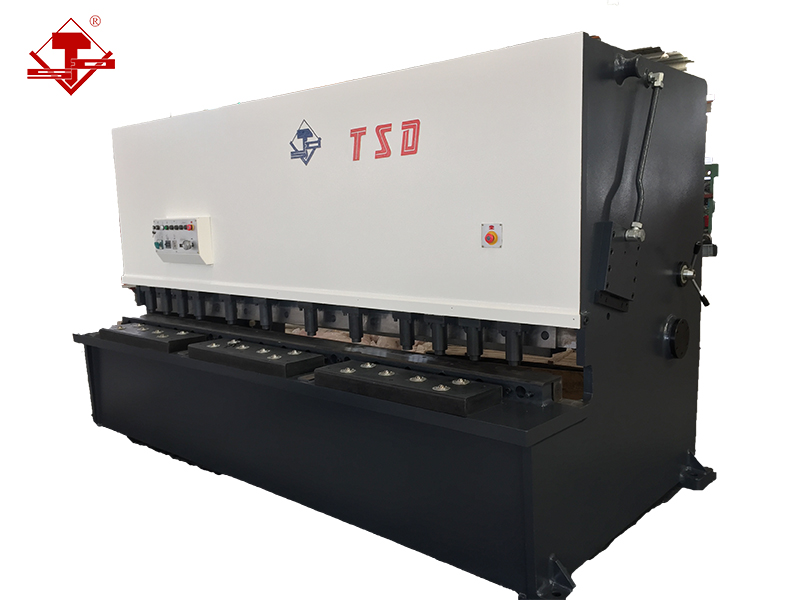

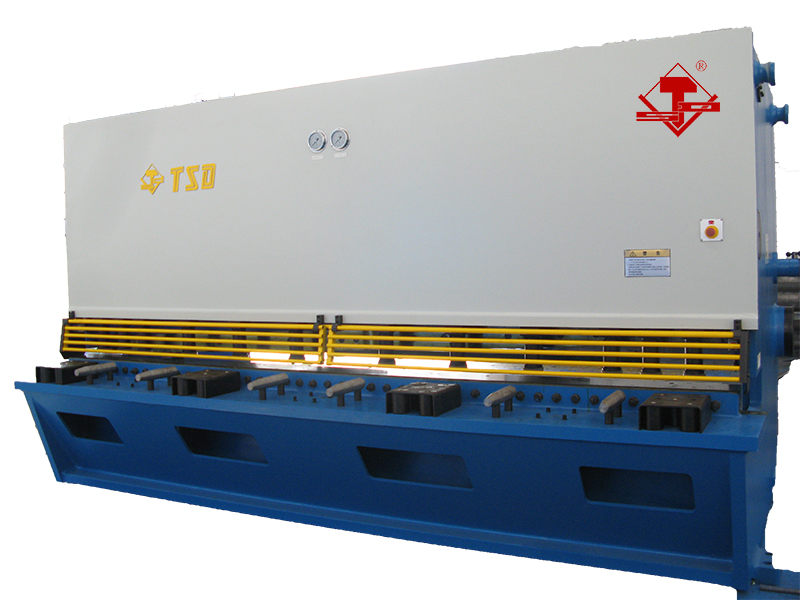

Hydraulic Metal Guillotine Shear
This hydraulic guillotine shear is engineered for precise and efficient metal cutting. It features a heavy-duty frame, hydraulic clamping system, and adjustable blade gap to accommodate different material thicknesses.
Technical Specifications
Product Overview
Professional Hydraulic Guillotine Shear
The Hydraulic Guillotine Shear (Model QC11Y-6×3200) is a robust metal forming solution designed for high-precision cutting in industries such as vehicle manufacturing, construction, and electrical engineering. Built with high-quality steel and stress-relieved construction, this machine ensures long-term durability and consistent performance. It features advanced controls, including motorized blade clearance adjustment and a secure hydraulic clamping system, to facilitate efficient, safe, and precise metal processing operations.
Performance Metrics
Key Performance Metrics
Technical Specifications
Detailed Specifications
| Parameter | Value |
|---|---|
| Shear Angle | 0.5° – 2° |
| Back Gauge Stroke | 600 mm |
| Strokes | ≥10 |
| Overall Dimensions (L*W*H) | 4010 * 2329 * 2100 mm |
Machine Features
Machine Capabilities
- Fully welded construction using ASTM283M Gr.D steel with stress relief
- Knife beam with 3-point roll guide rail and clearance adjusting device
- Motorized blade clearance adjustment with digital display
- Hydraulic hold-down clamping system
- Nitrogen gas accumulator for beam return
- Lighting alignment cutting device
- Movable foot pedestal with emergency stop
Compliance & Standards
- Certifications
- ISO 9001Export Safety Standards
