Technical Specifications
Overview
Industrial Hydraulic Bending Solution

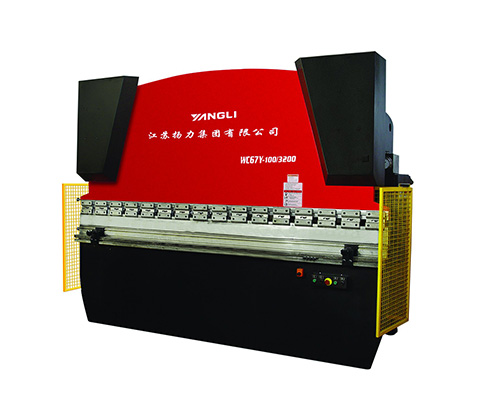

This hydraulic metal bending machine is engineered for precision and reliability in demanding industrial environments. It features a robust welded frame with tempering for structural integrity and a hydraulic top drive system with stepless pressure adjustment. The machine is designed for high-accuracy operations, incorporating synchronized compensation mechanisms and precise slide stroke adjustments to meet professional manufacturing requirements.
Technical Capabilities
Key Performance Metrics
160 T
Rated Capacity
Adjustment Methods
- Electric quick adjustment for slide stroke
- Manual micro-adjustment for back gauge
- Digital display for parameter monitoring
- Stepless pressure adjustment
- Operating Modes
- Inch ModeSingle StrokeContinuous Mode
Safety & Control
Safety Compliance
Safety RailingDoor-Open Power-OffEmergency Stop
Control Settings
| Function | Component |
|---|---|
| Reversing time | Time relay |
| Pressurizing time | Time relay |
