Technical Specifications
Overview
High-Precision Hydraulic Metal Bending Solutions

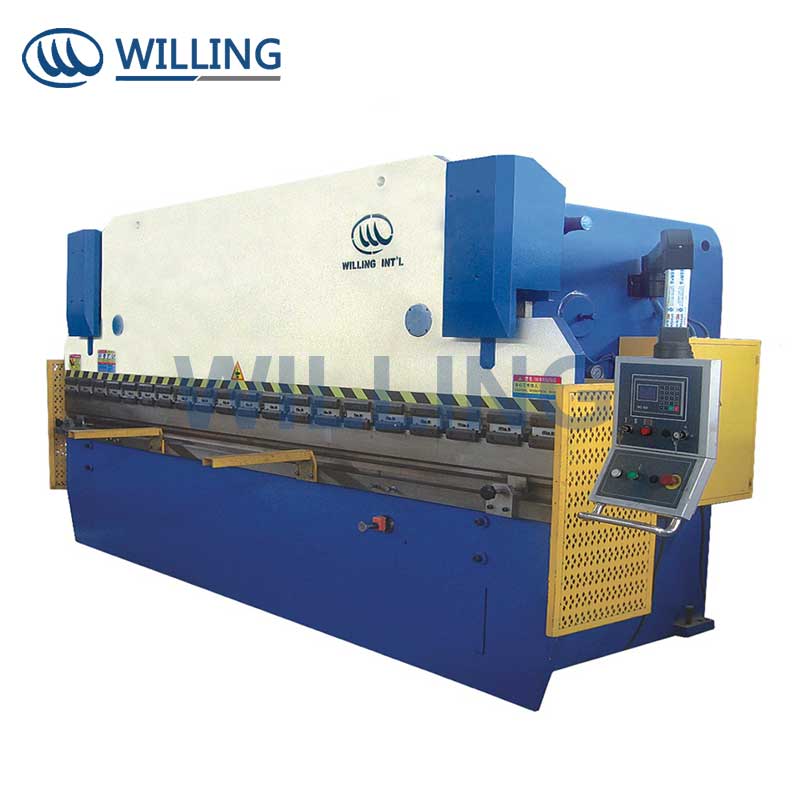

This hydraulic metal bending machine is engineered for high-accuracy metal forming and folding operations. Equipped with advanced digital control systems, it allows operators to program precise bending parameters for repeatable and efficient production. The robust, heavy-duty construction ensures durability in demanding industrial environments, making it an ideal choice for professional metal fabrication workshops.
Performance Metrics
Bending Capacity Range
63 t
Minimum Pressure
200 t
Maximum Pressure
Technical Specifications
Technical Data by Model
| Model | Pressure (KN) | Table Length (mm) | Weight (kg) |
|---|---|---|---|
| 63t/2500 | 630 | 2,500 | 4,200 |
| 63t/3200 | 630 | 3,200 | 5,000 |
| 80t/3000 | 800 | 3,200 | 5,600 |
| 80t/4000 | 800 | 4,000 | 6,200 |
| 100t/3200 | 1,000 | 3,200 | 6,400 |
| 100t/4000 | 1,000 | 4,000 | 7,100 |
| 125t/3200 | 1,250 | 3,200 | 6,800 |
| 125t/4000 | 1,250 | 4,000 | 7,400 |
| 160t/3200 | 1,600 | 3,200 | 10,000 |
| 160t/4000 | 1,600 | 4,000 | 11,000 |
| 160t/5000 | 1,600 | 5,000 | 14,000 |
| 200t/3200 | 2,000 | 3,200 | 11,000 |
| 200t/4000 | 2,000 | 4,000 | 13,000 |
| 200t/5000 | 2,000 | 5,000 | 15,500 |
| 200t/6000 | 2,000 | 6,000 | 19,000 |
- Power Range
- 5.5 kW7.5 kW11 kW18.5 kW
Features
Key Capabilities
- Digital control interface for precise programming
- Robust hydraulic system for heavy-duty metal forming
- High-capacity bending die set
- Repeatable and accurate folding operations
