Hydraulic Limit Valve
This hydraulically operated limit valve is designed for heavy machinery such as road construction equipment. It regulates hydraulic fluid flow based on position or pressure limits within a system.
Technical Specifications
Product Overview
High-Reliability Hydraulic Limit Valve
This hydraulic limit valve is engineered for rapid response and high reliability in demanding industrial environments. Featuring a compact, dust-proof construction, it is designed for extended service life in heavy machinery. It provides precise fluid flow regulation, ensuring robust performance across diverse heavy-duty applications.

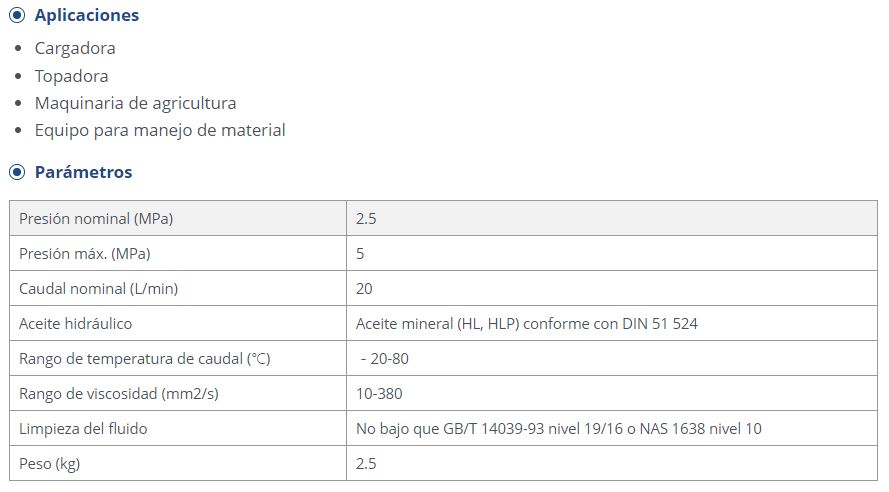

Technical Specifications
- Nominal Pressure
- 2.5 MPa
- Maximum Pressure
- 5 MPa
- Nominal Flow Rate
- 20 L/min
- Operating Temperature
- -20 to 80 °C
- Viscosity Range
- 10-380 mm²/s
- Weight
- 2.5 kg
Compliance and Standards
- Compatible Fluids
- Mineral Oil (HL)Mineral Oil (HLP)DIN 51 524
- Fluid Cleanliness Standard
- GB/T 14039-93 level 19/16 or NAS 1638 level 10
Applications
Typical Applications
- Loaders
- Bulldozers
- Agricultural machinery
- Material handling equipment
Product Features
Core Features
Compact sizeRapid responseDust-proofEasy installation
