Hydraulic Injection Molding Machine

This hydraulic injection molding machine offers faster injection and plasticizing speeds, leading to more stable and efficient operation. It is suitable for producing food and beverage packaging, home appliances, and automotive parts.

Request a QuotePDF

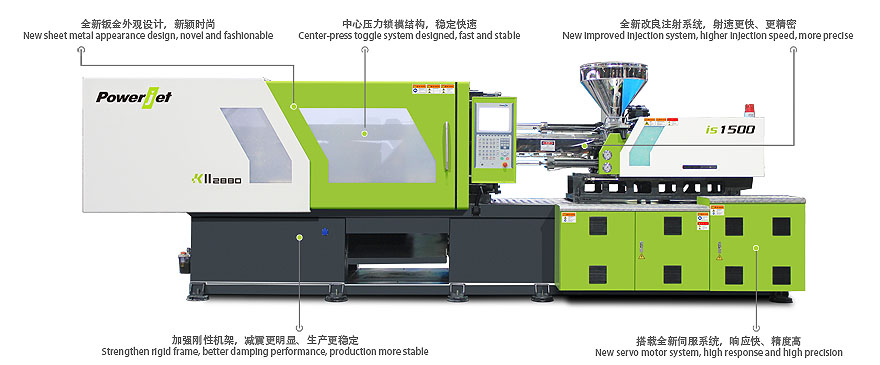

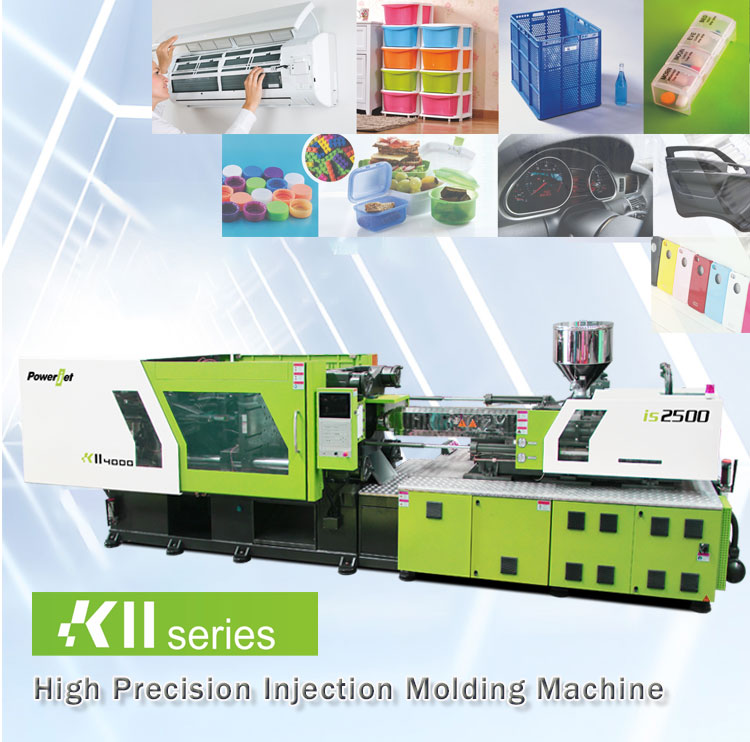

KII SERIES HIGH PRECISION INJECTION MOLDING MACHINE - Image 1

Technical Specifications

Overview

High-Precision Injection Molding Performance

This series of hydraulic injection molding machines is engineered for superior stability, speed, and efficiency in plastic manufacturing. Featuring a center-press toggle system and a strengthened rigid frame, the machine provides excellent damping performance for consistent, high-quality production. Advanced servo motor technology ensures high response times and precision, while energy-saving designs help significantly reduce operational costs.

Technical Specifications

Clamping Force Range
900 - 10000 KN
Driving System
Hydraulic
Motor Type
Servo
Clamping Force
2880 KN
Opening Stroke
550 mm
Max Daylight
1160 mm
Platen Size
850 x 850 mm

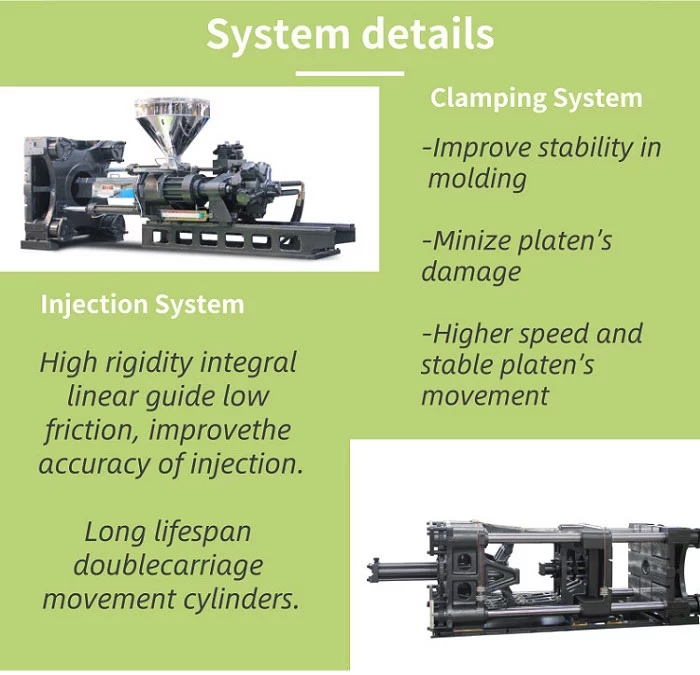

Close up of the injection molding clamping and injection system components.
The clamping system is designed to improve stability and minimize platen damage, while the injection system utilizes high-rigidity integral linear guides for enhanced accuracy.

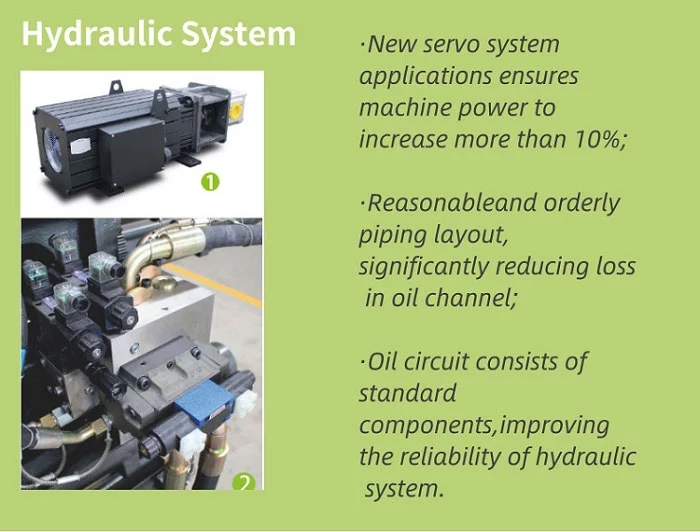

Diagram of the hydraulic system and piping layout.
The hydraulic system features a high-efficiency servo application and an optimized piping layout to reduce oil channel loss and improve reliability.

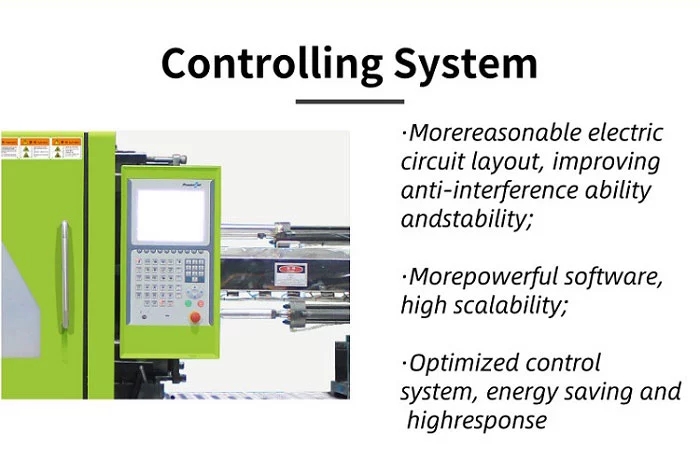

Control system interface and electrical components.
The optimized control system offers high scalability, energy-saving capabilities, and improved anti-interference stability.

Features

Key Features

Servo Motor SystemCenter-Press ToggleHigh-Rigidity FrameEnergy EfficientLinear Guide Injection

Applications

Suitable Industries
Food & Beverage PackagingDaily NecessitiesHome AppliancesElectrical ComponentsAutomotive Parts
Collage of plastic products including automotive parts and packaging.
Versatile applications ranging from food packaging and household appliances to automotive components.
