Hydraulic Guillotine Shearing Machine

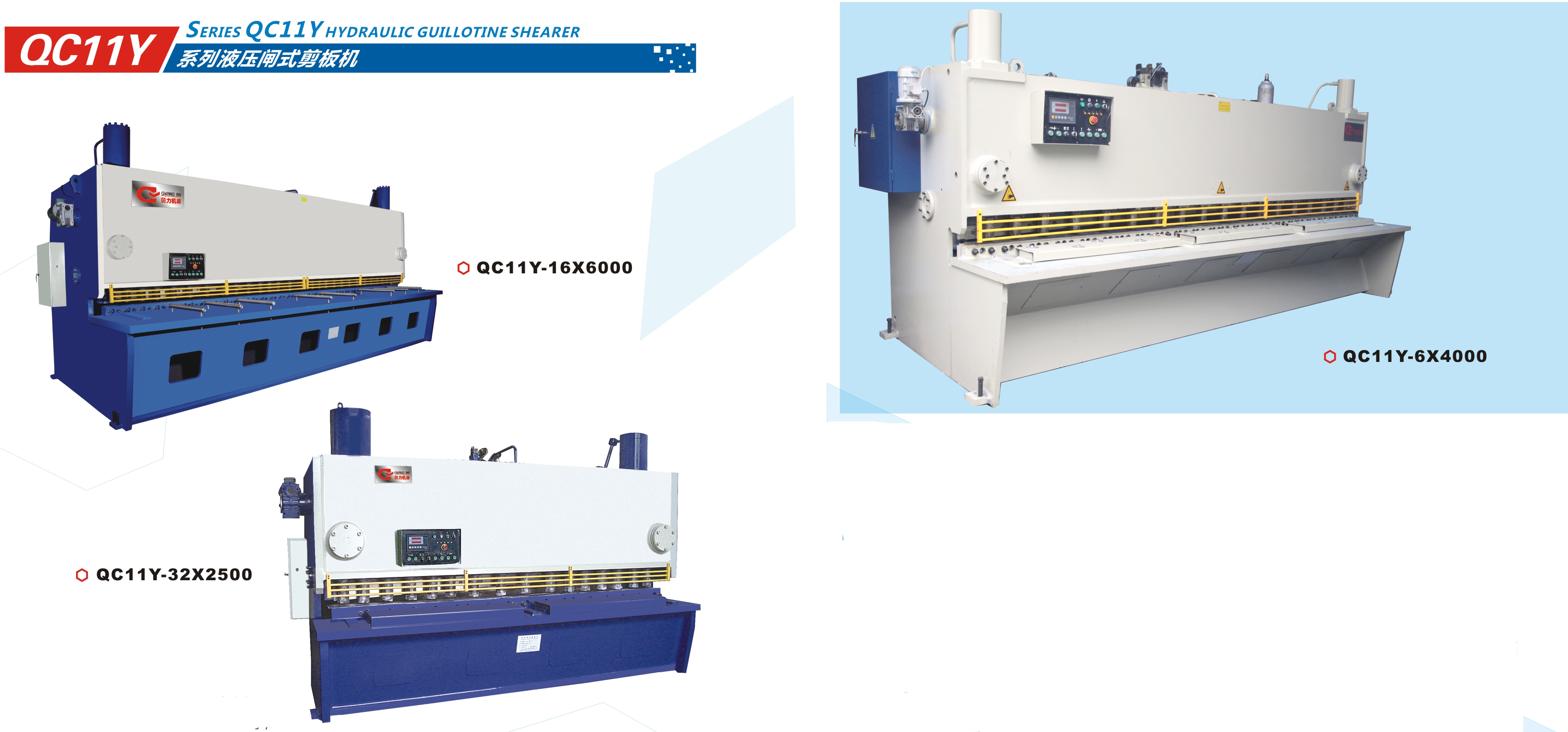

This hydraulic guillotine shearing machine is designed for shearing metal sheets with precision. It is available in models QC11Y-32X2500, QC11Y-16X6000, and QC11Y-6X4000 to cater to different sheet sizes and cutting requirements.

Request a Quote Download PDFPDF

Hydaulic guillotine shearing machine - Image 1

Technical Specifications

Overview

QC11Y Series Hydraulic Guillotine Shearing Machine

The QC11Y series hydraulic guillotine shearing machine is a robust metal cutting tool engineered for high-precision industrial applications. Designed to handle varying sheet sizes and thicknesses, this series offers versatility for diverse manufacturing requirements. With a range of models capable of cutting thicknesses from 6mm up to 40mm, these machines provide reliable performance for heavy-duty metal fabrication.

Machine Series: QC11Y Hydraulic Guillotine

Performance Metrics

Key Capabilities

40 mm

Max Shear Thickness

6,000 mm

Max Shear Width

45 kw

Max Motor Power

Technical Data

Model Specifications

Model	Thickness (mm)	Width (mm)	Motor (kw)	Weight (kg)
QC11Y-6×2500	6	2,500	7.5	5,000
QC11Y-6×3200	6	3,200	7.5	6,100
QC11Y-6×4000	6	4,000	7.5	8,200
QC11Y-8×2500	8	2,500	11	5,800
QC11Y-8×3200	8	3,200	11	7,700
QC11Y-8×4000	8	4,000	11	9,100
QC11Y-8×6000	8	6,000	15	19,800
QC11Y-12×2500	12	2,500	18.5	8,700
QC11Y-12×3200	12	3,200	18.5	11,000
QC11Y-12×4000	12	4,000	18.5	14,000
QC11Y-12×6000	12	6,000	22	27,000
QC11Y-16×2500	16	2,500	22	9,600
QC11Y-16×3200	16	3,200	22	11,800
QC11Y-16×4000	16	4,000	22	17,500
QC11Y-16×6000	16	6,000	30	32,300
QC11Y-20×2500	20	2,500	30	12,300
QC11Y-20×3200	20	3,200	30	18,000
QC11Y-20×4000	20	4,000	30	24,500
QC11Y-25×2500	25	2,500	37	18,500
QC11Y-25×3200	25	3,200	37	23,800
QC11Y-32×2500	32	2,500	37	23,000
QC11Y-32×3200	32	3,200	37	29,000
QC11Y-40×2500	40	2,500	45	32,500
