Hydraulic Flow Meter with Pressure and Temperature Sensor

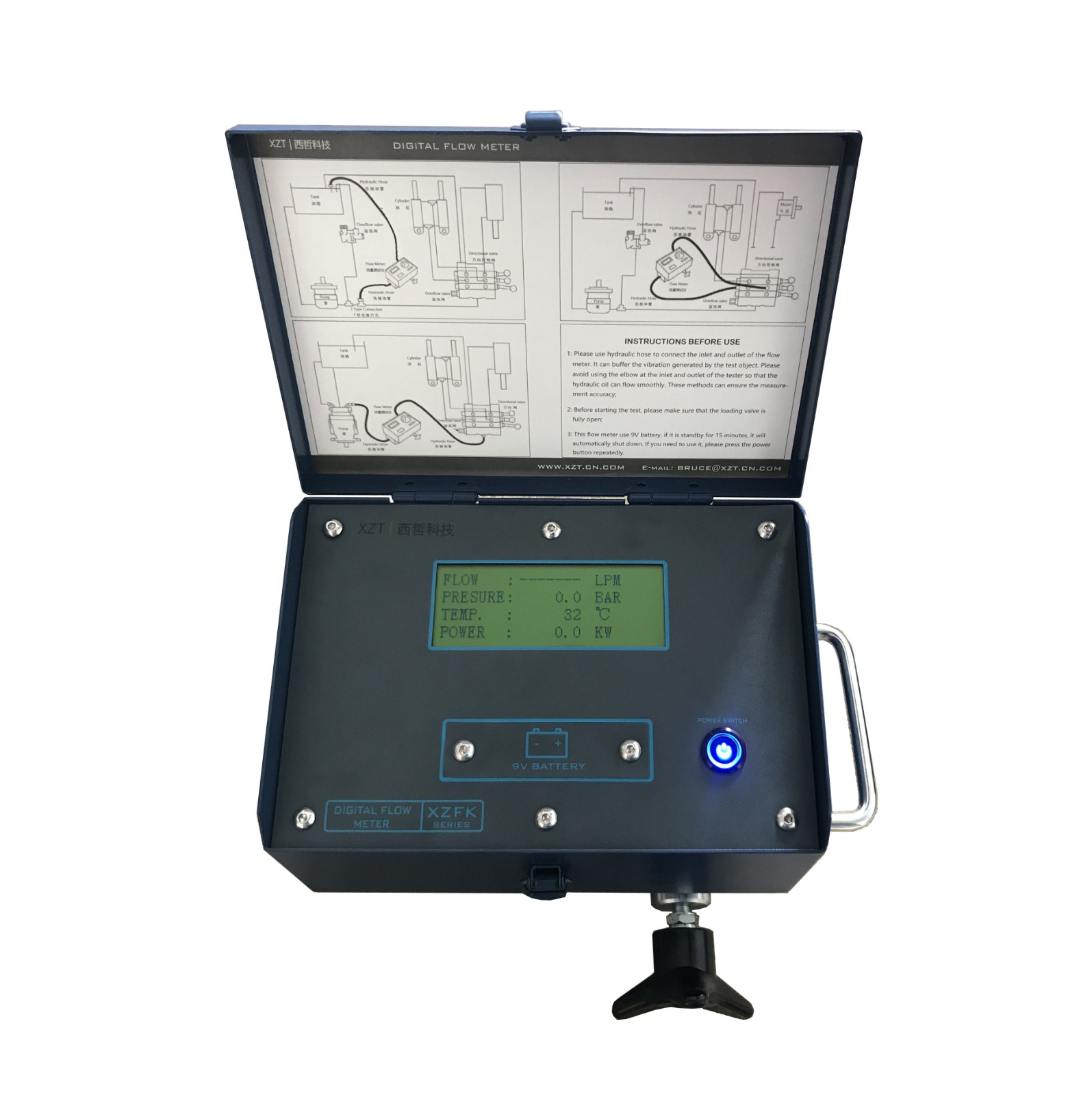

This digital flow meter measures hydraulic oil flow, pressure, and temperature at the same time. It is designed for hydraulic systems and displays flow rate, pressure, temperature, and power.
Technical Specifications
Overview
Precision Hydraulic Testing

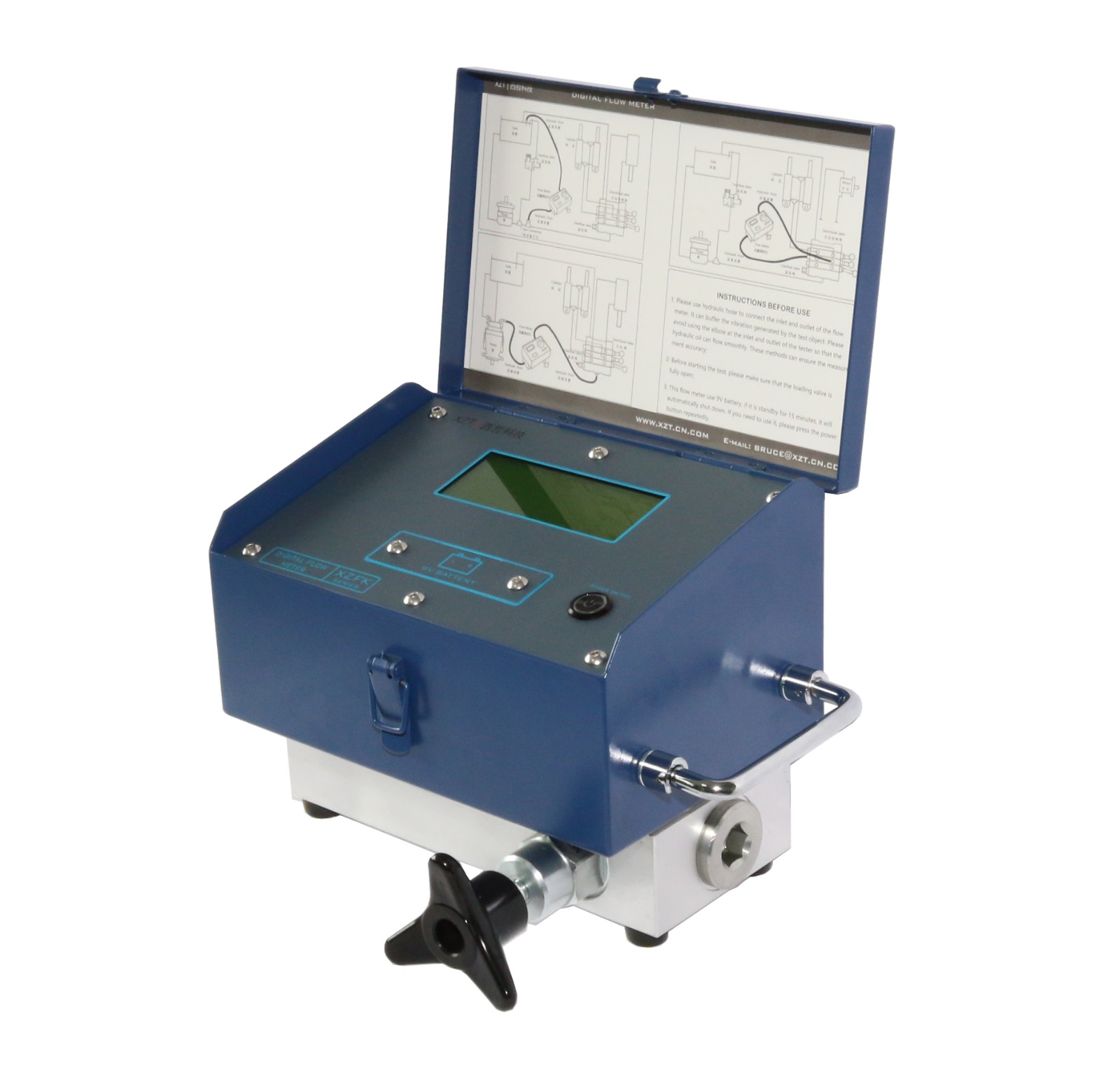

This digital hydraulic flow meter provides simultaneous measurement of flow, pressure, and temperature, making it an essential tool for rapid diagnostics. Designed for versatility, the unit supports bi-directional flow testing and is suitable for evaluating pumps, motors, valves, and cylinders. Its compact, portable design and battery-operated power source ensure ease of use in field conditions, while the integrated bypass system protects against overpressure.
Performance Metrics
Measurement Capabilities
800 LPM
Max Flow Rate
420 BAR
Max Pressure
- Key Testing Features
- Bi-Directional FlowPressure MonitoringTemperature MonitoringOverpressure Protection
Model Specifications
Model Specifications
| Model | Max Flow | Thread Size | Weight | Dimensions |
|---|---|---|---|---|
| XZFK-404 | 400 LPM | BSP 1"/G 1" | 6 Kg | 250*200*200 mm |
| XZFK-408 | 800 LPM | BSP 1-1/4"/G 1-1/4" | 9.5 Kg | 250*230*200 mm |
Operational Details
Usage Recommendations
- Use hydraulic hoses to connect inlet and outlet to buffer vibrations
- Avoid using elbows at the inlet and outlet for smooth oil flow
- Ensure loading valve is fully open before starting test
- Power Source
- 9V Battery
- Automatic Power Off
- Yes
