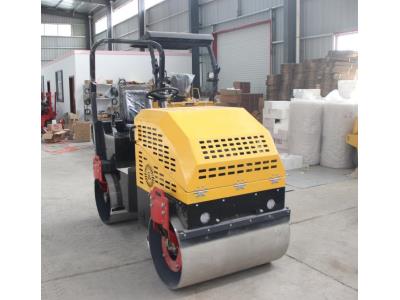

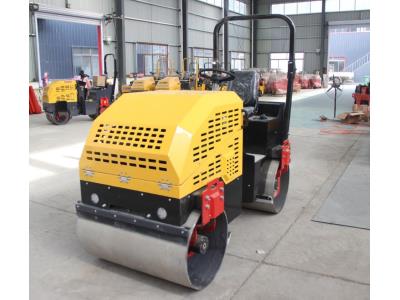

Hydraulic Double Drum Vibratory Road Roller
This road roller utilizes a hydraulic system for smooth operation and powerful vibration. The double drum design ensures uniform compaction, making it suitable for road construction and maintenance projects.
Technical Specifications
Overview
Compact Vibratory Roller for Municipal Maintenance
This hydraulic double drum vibratory road roller is engineered for precision compaction in municipal maintenance, trench well edges, and highway construction. Its compact design allows for effective operation in confined spaces, while the dual-drum configuration ensures uniform density on asphalt and stabilized soil layers. Equipped with a powerful hydraulic system and electronically controlled water spraying, it offers reliable performance for professional road maintenance and repair projects.
Performance Metrics
Key Performance Metrics
39 HP
Power
30 KN
Exciting Force
75 HZ
Vibration Frequency
30 %
Gradeability
Technical Specifications
Technical Specifications
| Feature | Specification |
|---|---|
| Drive Method | Hydraulic two-wheel drive |
| Vibration Method | Hydraulic, front wheel |
| Steering Method | Hydraulic steering |
| Sprinkling Method | Electronically controlled pressure water spray |
| Static Line Load | 100 N/CM |
| Nominal Amplitude | 0.5 mm |
- Key Components
- Hydraulic SystemFront Wheel VibrationTwo-Wheel Drive
Dimensions and Weight
Physical Dimensions
- Steel wheel width: 1100mm
- Steel wheel diameter: 610mm
- Total length: 2300mm
- Total width: 1120mm
- Total height: 1700mm
- Working weight: 1980kg
Engine and Operations
Engine and Fuel
- Engine speed: 2600rpm
- Fuel tank capacity: 36L
- Fuel consumption: 240g/kw.h
