Hydraulic Distributor Remote Control Joystick
This remote control joystick is designed for hydraulic distributors. It features reliable mechanical positioning and a wide range of response curve characteristics for proportional flow control.

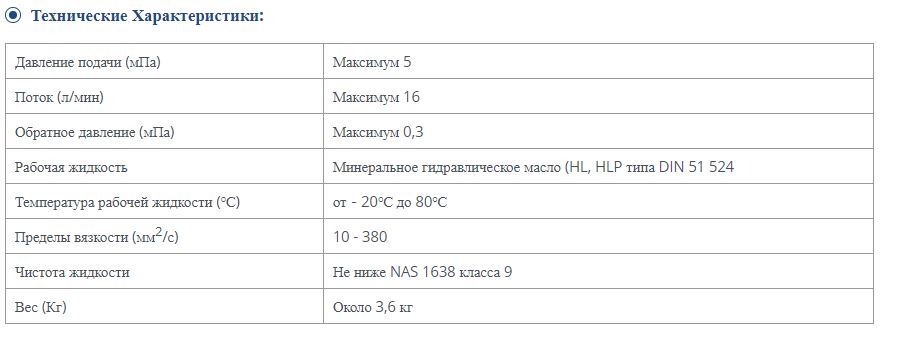

Technical Specifications
Product Overview
High-Performance Hydraulic Control
This hydraulic distributor remote control joystick offers precise, dual-axis control for a variety of heavy-duty applications. It features a compact design with parallel port configuration, ensuring easy installation and integration into existing hydraulic systems. Built for durability and responsiveness, it utilizes mechanical positioning and customizable pressure curves to meet specific operational requirements.
Technical Metrics
Performance Capabilities
5 MPa
Max Feed Pressure
16 l/min
Max Flow Rate
0.3 MPa
Max Back Pressure
Fluid and Environmental Specifications
| Parameter | Specification |
|---|---|
| Working Fluid | Mineral hydraulic oil (HL, HLP DIN 51 524) |
| Temperature Range | -20°C to 80°C |
| Viscosity Range | 10-380 mm²/s |
| Fluid Cleanliness | NAS 1638 class 9 |
Key Features
Operational Advantages
- Low actuation force for operator comfort
- Reliable mechanical positioning
- Proportional flow control
- Dust-proof design for longevity
- Fast pressure response time
Application Areas
- Compatible Equipment
- LoadersBulldozersLifting EquipmentAgricultural MachineryMaterial HandlingCompactorsForestry MachineryContainer Cranes
Physical Properties
- Weight
- 3.6 kg
