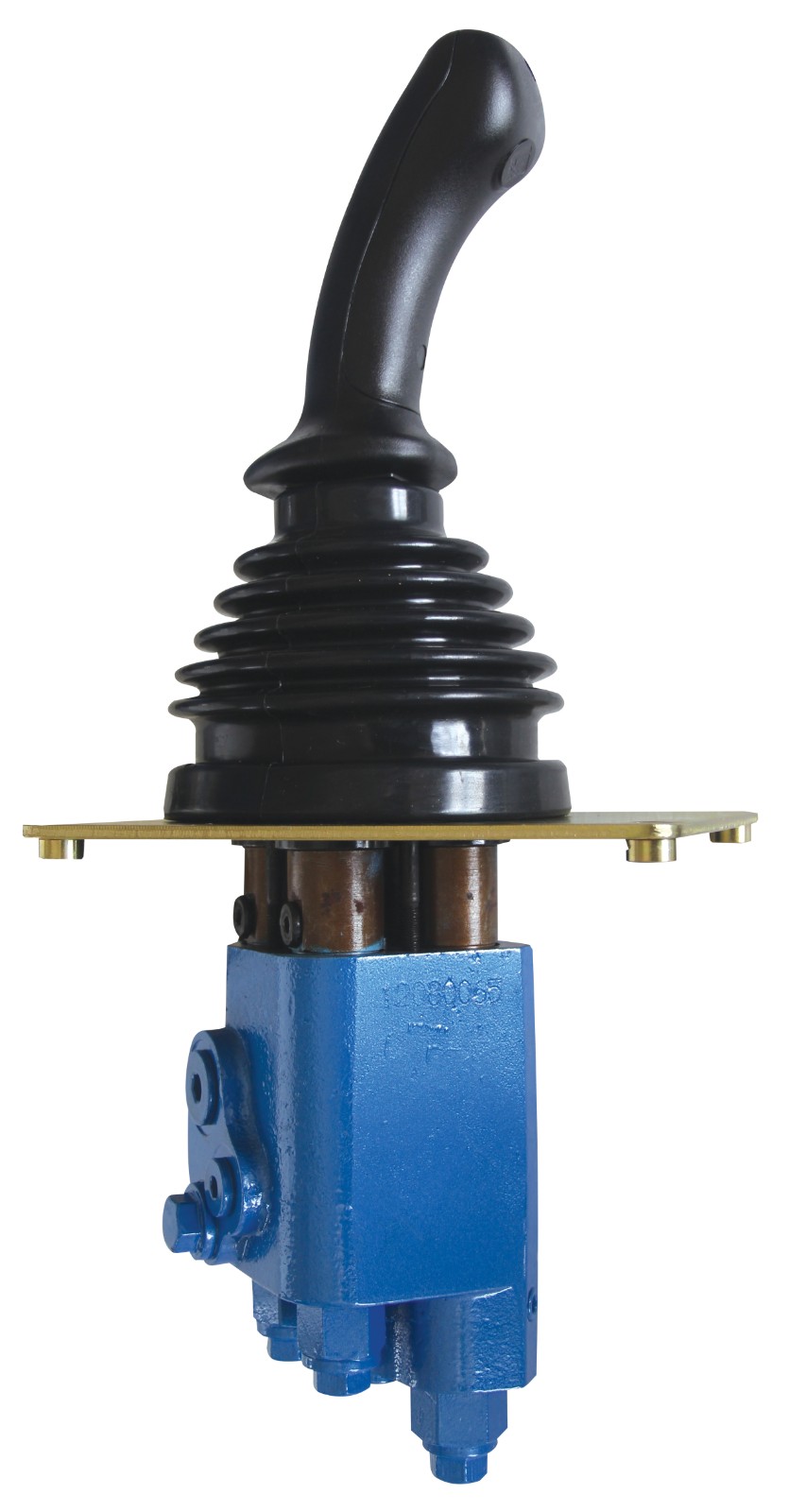

Hydraulic Directional Control Valve Joystick
This hydraulic joystick control valve offers convenient operation and rapid response. The ergonomic joystick handle is available with various switches or buttons, ensuring comfortable operating conditions with minimal effort.

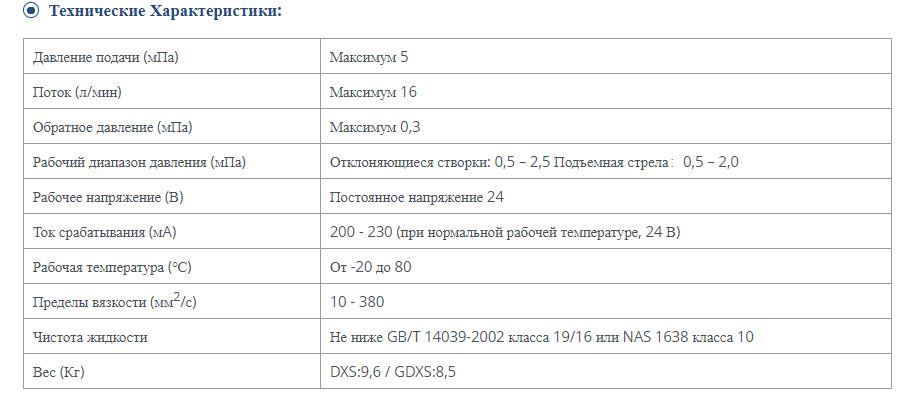

Technical Specifications
Product Overview
High-Performance Hydraulic Control
This hydraulic directional control valve joystick is engineered for exceptional responsiveness and operator comfort. Featuring an ergonomic grip with integrated switches, it minimizes operator fatigue while providing precise, reliable control over hydraulic functions. Its compact design allows for easy installation, while the built-in logical valve ensures smooth, proportional control and optimal cylinder speed management.
Technical Specifications
Key Performance Metrics
5 MPa
Supply Pressure
16 l/min
Flow Rate
24 V
Operating Voltage
Pressure Specifications
| Parameter | Value/Range |
|---|---|
| Back Pressure | Max 0.3 MPa |
| Deflecting Valve Range | 0.5-2.5 MPa |
| Lifting Arrow Range | 0.5-2.0 MPa |
Operating Conditions
- Operating Temperature: -20 to 80 °C
- Viscosity: 10-380 mm²/s
- Actuation Current: 200-230 mA (at 24V)
Weight by Model
- DXS: 9.6 kg
- GDXS: 8.5 kg
Applications
- Suitable Applications
- LoadersBulldozersAgricultural MachineryMaterial HandlingRollersForestry MachineryContainer CranesDrilling Rigs
