Hydraulic Directional Control Valve - 15mm, 63L/min
This sectional hydraulic directional control valve features a 15mm nominal diameter and a 63L/min nominal flow rate. It is designed for precise control over fluid direction and flow in hydraulic systems.
Technical Specifications
Overview
High-Performance Sectional Control Valve
The CDB2-F15 is a versatile sectional multiple directional control valve designed for precise fluid management in demanding hydraulic systems. Its modular construction includes inlet, working, and oil return sections, allowing for tailored configurations such as tilt self-locking and specialized lifting functions. Engineered for durability and reliability, it is an essential component for optimizing the performance of mobile and industrial machinery.
Key Performance Metrics
Key Performance Metrics
63 L/min
Nominal Flow Rate
200 bar
Nominal Pressure
15 mm
Nominal Diameter
Technical Specifications

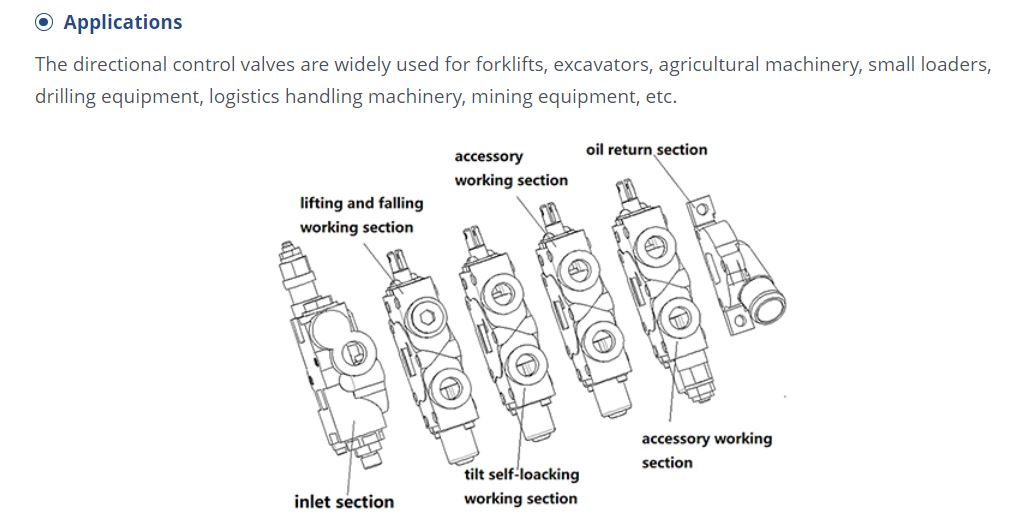

Valve Structure
- Inlet section
- Lifting and falling working section
- Tilt self-locking working section
- Accessory working section
- Oil return section
- Maximum Pressure
- 280 bar
- Maximum Flow
- 80 L/min
Applications
- Suitable Machinery
- ForkliftsExcavatorsAgricultural MachinerySmall LoadersDrilling EquipmentLogistics HandlingMining Equipment

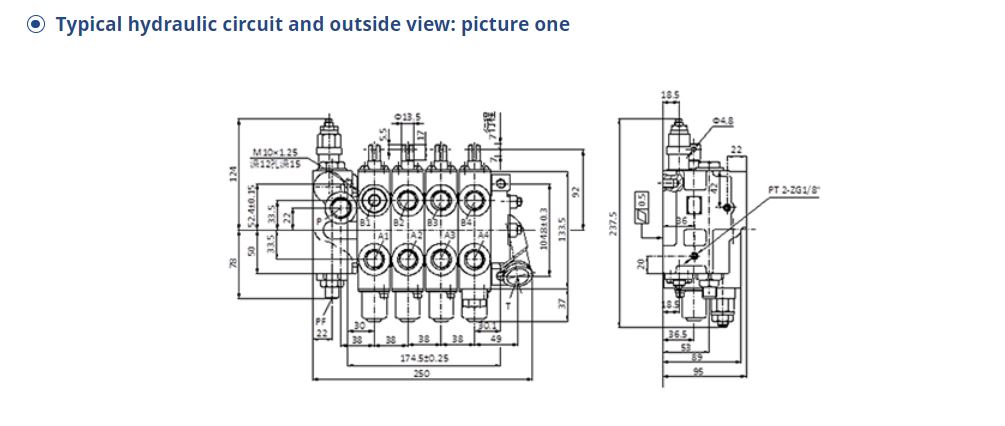

Installation & Dimensions
Mounting & Port Specifications
| Feature | Specification |
|---|---|
| Threaded Connections | M10x1.25, M12x15, M14x1.5R14 |
| Section Spacing | 38mm |
| Port Identifiers | P, T, PF, A1-A4, B1-B4 |
| Mounting Holes | 2-Ø10.5 or Ø13.5 |
