Hydraulic Control Valve for Lift Platforms
This hydraulic control valve contains an accumulator to absorb road shocks, ensuring a smooth and safe drive. It can integrate a charge valve to supply oil and prevent cavitation noises.
Technical Specifications
Product Overview
Hydraulic Control Valve for Lift Platforms
This hydraulic control valve is specifically engineered for lift platform applications, including scissor lifts and self-propelled devices. It features an integrated accumulator to absorb road shocks, ensuring smooth and safe operation, alongside a back pressure regulator to manage excess pressure. With a modular design and customizable spool functions, it offers high reliability and straightforward installation for various hydraulic systems.
Key Performance Metrics
Performance Highlights
25 MPa
Nominal Pressure
16 L/min
Rated Flow
22 L/min
Max Flow
15.5 kg
Weight

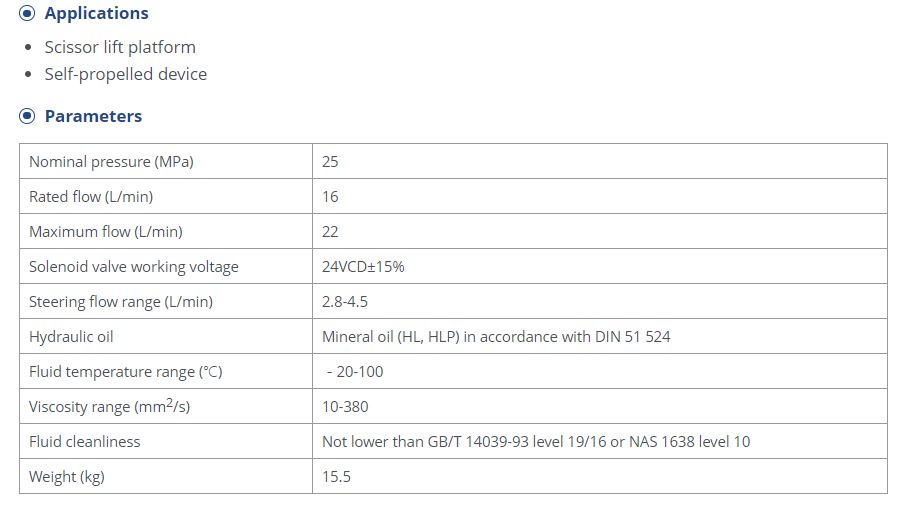

Technical Specifications
- Electrical Requirements
- 24VCD ±15%
- Steering Flow Range
- 2.8 - 4.5 L/min
- Recommended Hydraulic Oil
- Mineral oil (HL, HLP) conforming to DIN 51 524
- Fluid Temperature Range
- -20 to 100 °C
- Viscosity Range
- 10-380 mm²/s
- Fluid Cleanliness Level
- GB/T 14039-93 level 19/16 or NAS 1638 level 10
Features & Applications
Key Design Features
- Accumulator for shock absorption
- Back pressure regulator
- Integrated charge valve to prevent cavitation noise
- Solenoid valve for high reliability
- Customizable spool functions
- Parallel port design for easy installation
- Suitable Applications
- Scissor lift platformSelf-propelled device
