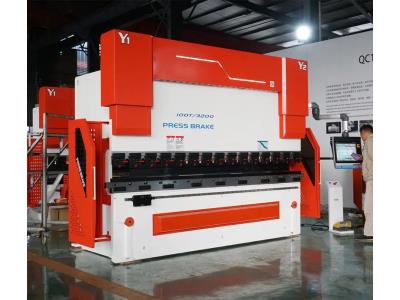

Hydraulic CNC Servo Press Brake with DA66T Control
This hydraulic CNC servo press brake utilizes a DA66T control system for enhanced precision and automation in metal forming. The steel frame provides exceptional rigidity and stability for demanding bending operations.
Technical Specifications
Product Overview
High-Performance Hydraulic CNC Servo Press Brake
This hydraulic CNC servo press brake is engineered for high-precision metal forming, bending, and straightening tasks. Featuring an advanced DA66T control system, it offers multi-step programming and simulation capabilities to enhance productivity and reduce setup times. The machine is built with a robust, stress-relieved steel frame and utilizes high-precision ball screws and rolling guideways for exceptional reliability and repeatable accuracy.
Technical Specifications
- CNC Control Unit

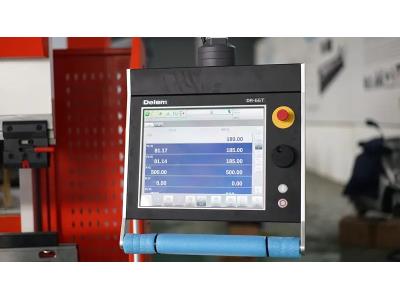

- Delem DA66T
- Frame Material
- Welded steel structure with tempering
- Synchronization Method
- Torsion axis
- Controlled Axes
- Y1Y2XRZ
Performance & Efficiency
Energy Efficiency
50 %
Energy Savings
70 %
Oil Volume Savings
Engineering Standard
ANSYS Finite Element Analysis
Safety & Features
Safety Equipment
- Safe fence
- Electric interlocker
Backgauge Components
- High-precision ball screw
- Rolling guideway
