Hydraulic Brake Valve with Pressure Reducing Valve

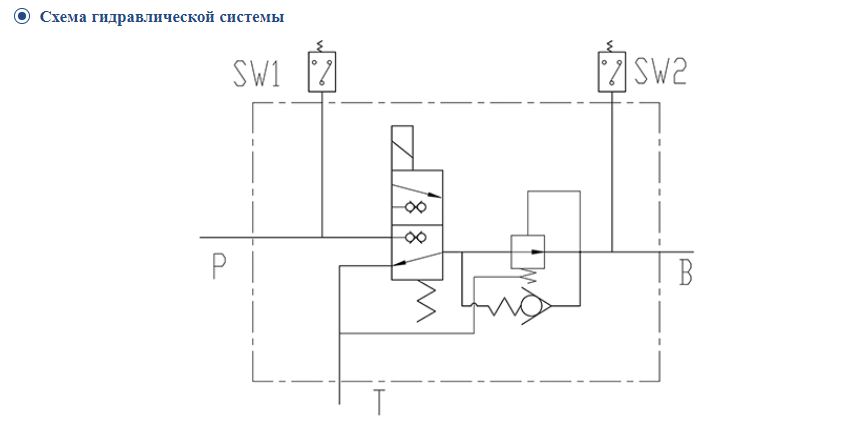

This brake valve incorporates an integrated pressure reducing valve. A 3-way 2-position solenoid valve regulates hydraulic oil flow to facilitate electrically controlled braking.
Technical Specifications
Product Overview
Hydraulic Brake Valve with Integrated Pressure Reduction
This hydraulic brake valve is engineered with an integrated pressure reducing valve for precise control. It utilizes a 3-way, 2-position solenoid valve to regulate hydraulic oil flow and fluid pressure, enabling reliable, electrically controlled braking operations. Designed for integration into demanding hydraulic circuits, it provides robust performance and consistent operation.
Technical Specifications
- Max Oil Inlet Pressure
- 20 MPa
- Electromagnetic Valve Voltage
- DC24V
- Max Drain Pressure
- 0.5 MPa
- Viscosity Limits
- 10-380 mm²/s
- Operating Temperature
- -20°C to 100°C
- Required Oil Cleanliness
- GB/T 14039-2002 class 19/16NAS 1638 class 10
- Mass
- 3.8 kg
Port & Connection Details
Port Configuration
| Port | Thread | Diameter (mm) | Depth (mm) |
|---|---|---|---|
| P | M18x1.5 | 28 | 14 |
| T | M18x1.5 | 28 | 14 |
| B | M16x1.5 | 24 | 14 |
