Hydraulic Brake Valve for Engineering Vehicles
This hydraulic brake valve, along with the GLT05 filling valve, creates a complete braking system for engineering vehicles. It offers smooth operation, brake sensitivity, and reliable performance.
Technical Specifications
Overview
High-Performance Hydraulic Brake Valve
This fully hydraulic brake valve is engineered for heavy-duty engineering vehicles, ensuring precise, responsive, and reliable braking performance. Designed for compatibility with various hydraulic systems, it features a robust slide valve construction that allows for smooth, stepless regulation at all pressure levels. With its double-circuit architecture, the system maintains operational safety even if one circuit fails, making it an essential component for graders, excavators, loaders, and hoisting machinery.
Key Features
- Application Areas
- GraderWheel excavatorForkliftWheel loadersHoisting MachineryWalking machinery
Technical Specifications
Rated Flow
36 L/min
Rated Flow
- Maximum Braking Pressure
- 10 MPa
- Mass
- 4 Kg
Operating Environment
- Hydraulic Fluid
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Oil Temperature Range
- -20 to 100
- Viscosity Range
- 10 to 380
Design & Configuration
Available Configurations
- Single circuit brake valve

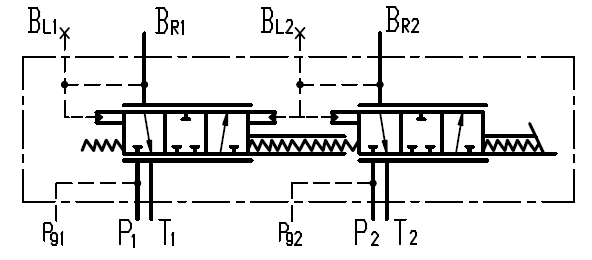

- Dual circuit brake valve
