Hydraulic Accumulator Charging Valve
The accumulator charging valve is designed to work with a hydraulic brake valve, together creating a complete hydraulic braking system. It ensures efficient and reliable charging for optimal performance.
Technical Specifications
Product Overview
Hydraulic Accumulator Charging Valve
The PDF15-00 accumulator charging valve is an essential component for hydraulic braking systems, designed to pair seamlessly with hydraulic brake valves. It ensures optimal pressure maintenance in hydraulic accumulators, contributing to the overall performance, reliability, and longevity of the hydraulic system. Featuring robust construction and precise control mechanisms, this valve provides dependable operation and easy integration for various industrial applications.

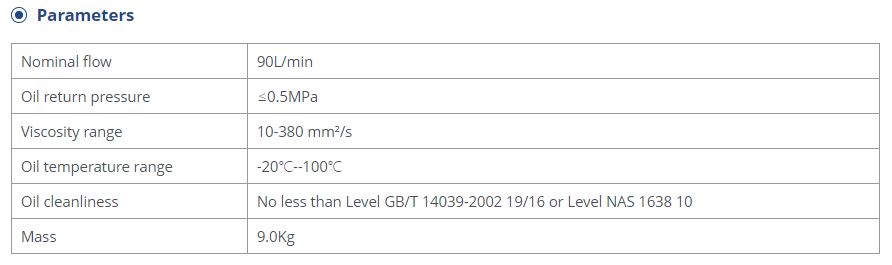

Performance Specifications
- Nominal Flow Rate
- 90 L/min
- Oil Return Pressure
- 0.5 MPa
- Viscosity Range
- 10-380 mm²/s
- Oil Temperature Range
- -20°C to 100°C
- Required Oil Cleanliness
- GB/T 14039-2002 19/16NAS 1638 10

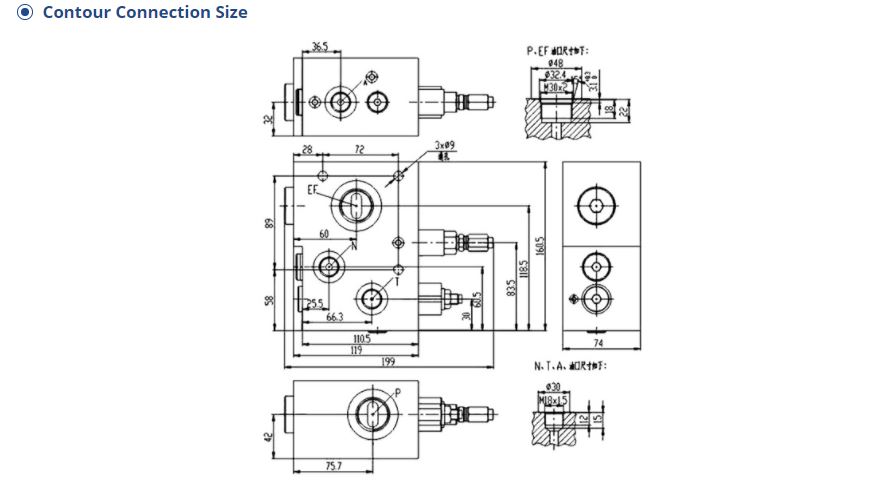

Physical Characteristics
Overall Dimensions
199 mm
Length
74 mm
Width
160.5 mm
Height
- Mass
- 9 Kg

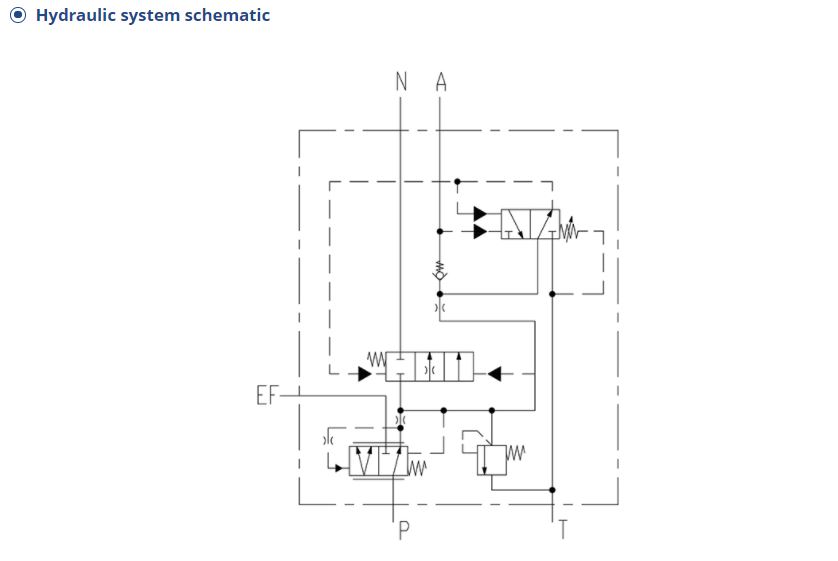

Connection Details
Port Configuration
| Port Type | Diameter/Thread |
|---|---|
| P / EF | 48mm / M30x2 |
| N / T / A | 30mm / M18x1.5 |
- Mounting Details
- 3 x 9mm bolt pattern
