Technical Specifications
Product Overview
Double Accumulator Charging Valve
The ACV-L25F is a precision-engineered double circuit charging valve designed for high-performance hydraulic systems. It ensures efficient and reliable charging of hydraulic accumulators, providing consistent hydraulic power for smooth operation in heavy-duty environments. Ideal for diverse industrial applications, this robust component enables accurate pressure regulation for optimal actuator responsiveness.

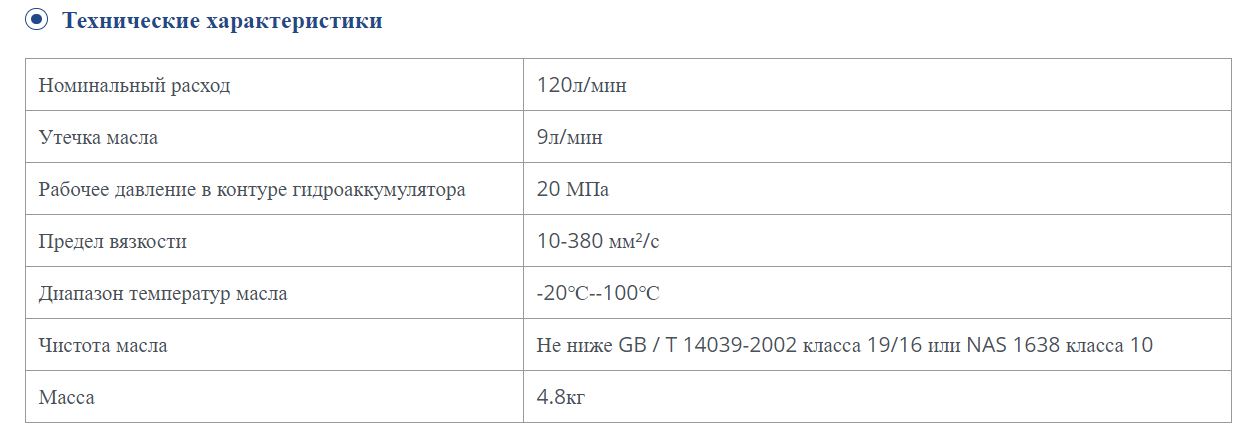

Technical Specifications
- Nominal Flow Rate
- 120 l/min
- Working Pressure (Accumulator Circuit)
- 20 MPa
- Oil Leakage
- 9 l/min
- Mass
- 4.8 kg
Operating Conditions
- Oil Temperature Range
- -20°C to 100°C
- Viscosity Limit
- 10-380 mm²/s
- Required Oil Cleanliness
- GB/T 14039-2002 class 19/16NAS 1638 class 10
Applications
Typical Applications
- Heavy-duty forklifts
- Agricultural machinery
- Loaders
- Utility vehicles
- Forestry equipment
- Mining equipment

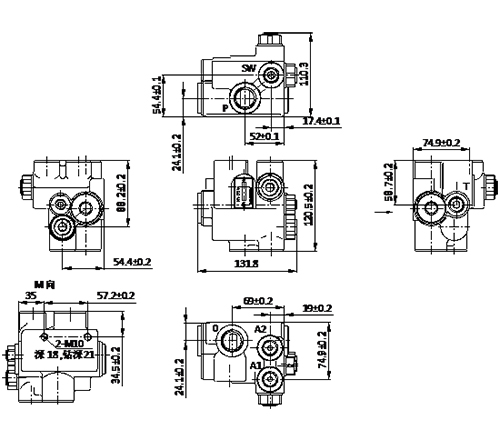

Dimensions
Key Dimensions
| Dimension | Value |
|---|---|
| Length | 131.8 mm |
| Width | 57.2±0.2 mm |
| Height | 88.2±0.2 mm |
