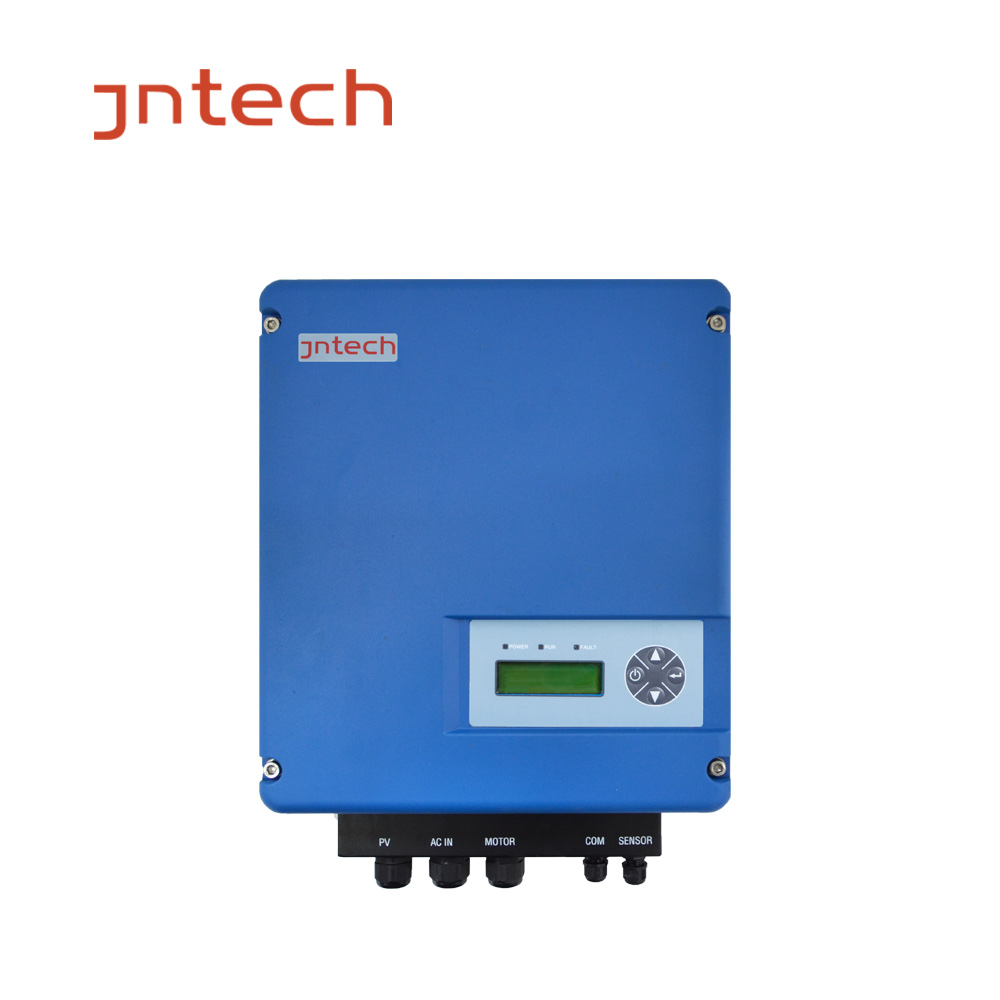

Hybrid Solar Pump Inverter 550W-7.5kW IP65
This hybrid solar pump inverter is designed for small field irrigation and drinking water systems. It uses a hybrid design with solar and utility/DG energy complementation.
Technical Specifications
Overview
Hybrid Solar Pump Inverter
This hybrid solar pump inverter is engineered for small-scale field irrigation and municipal drinking water systems. It features a robust design that allows for the seamless integration of solar energy with utility grid or generator power, ensuring reliable 24-hour water supply. With an IP65 protection rating, it is built to withstand harsh outdoor environments while delivering high-efficiency performance.
Technical Specifications
Max MPPT Efficiency
99 %
Efficiency
Available Power Models
- 2.2kW
- 3kW
- 3.7kW
- 4kW
- 5.5kW
- 7.5kW
- Max PV Input Voltage
- 880 V
- MPPT Voltage Range
- 460-850Vdc
- AC Input
- 360-460Vac, 3-phase, 50/60Hz
Features & Protection
Protection Grade
IP65Outdoor Ready
Safety Features
- Undervoltage protection
- Overload protection
- Overvoltage protection
- Overcurrent protection
- Grid phase loss protection
- Pump dry protection
- Short circuit protection
- Overheating protection
System Capabilities
- Automatic switching (Grid/Solar/DG)
- Solar priority logic
- Soft start and soft stop
- One-key startup
- 24H water supply capability
- Connectivity
- RS485GPRSRemote MonitoringAPP Management
