Technical Specifications
Overview
Hybrid Solar Air Conditioning System

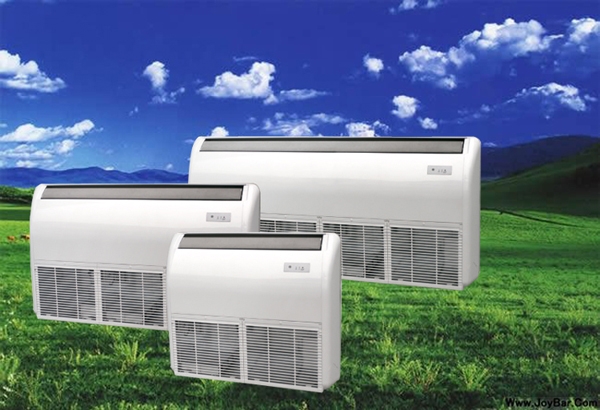

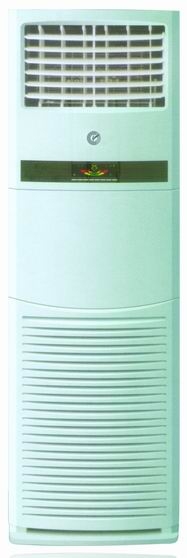

This hybrid solar air conditioner is designed to significantly reduce energy consumption by 30-50% by utilizing solar heat energy to reduce the compressor's burden. It features a high-efficiency heat exchange system, world-famous compressors for reliability, and a multi-fold heat exchanger for stronger cooling capacity. The unit is designed for versatility, with options including wall-mounted, floor-standing, floor-ceiling, and cassette types, ensuring suitability for various residential and commercial spaces.
Key Features
Key Features
- Energy saving 30-50%
- Easy installation
- Smooth operation at -7 to 53°C
- Digital LED display
- Intelligent defrosting
- Anti-dust air filter
- Fluorescent buttons for night visibility
- Digital e-Touch operation
Certifications
- Certifications
- ISOCE
Technical Specifications

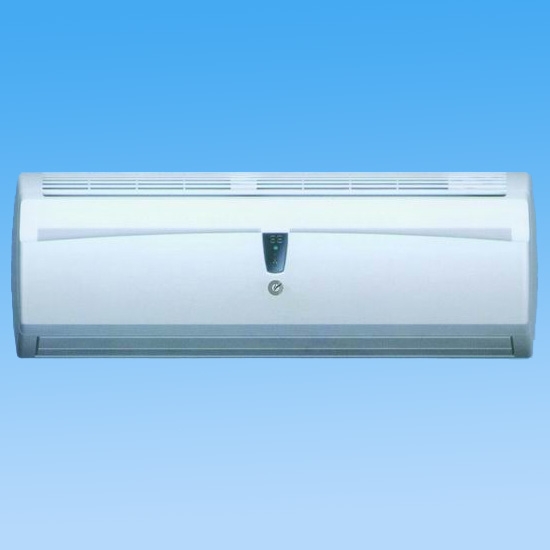

Wall Mounted Model Specifications
| Model | Cooling (Btu/h) | Heating (Btu/h) | Area (m²) |
|---|---|---|---|
| TKF(R)-26GW | 9,000 | 10,000 | 11~17 |
| TKF(R)-35GW | 12,000 | 13,000 | 15~23 |
| TKF(R)-60GW | 20,000 | 22,000 | 25~42 |
| TKF(R)-72GW | 24,000 | 27,000 | 30~48 |
- Power Supply
- 220-240VAC, 1PH, 50Hz
