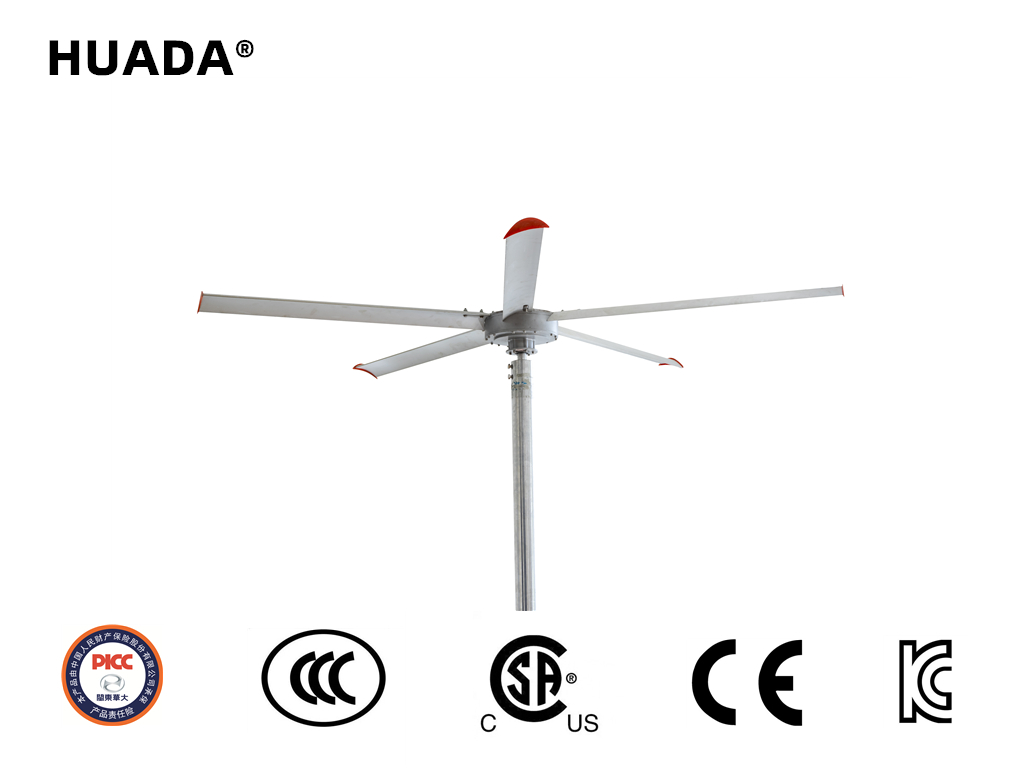

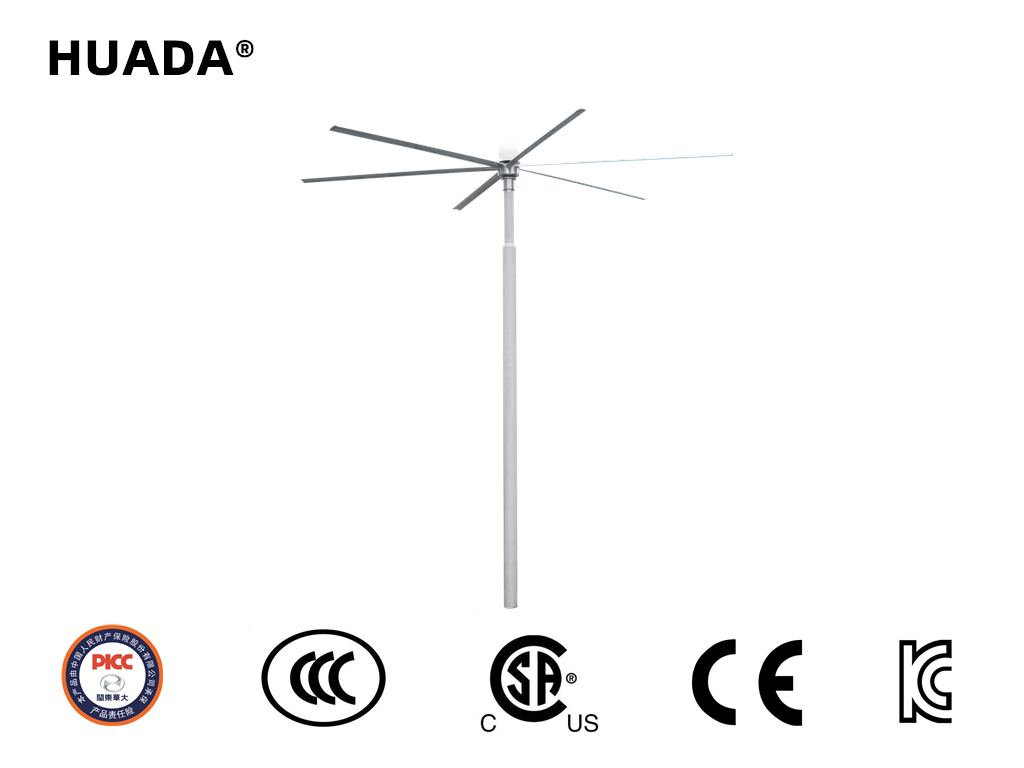

HVLS Vertical Fan with Integrated Lamp
This HVLS vertical fan is designed for large-scale air circulation. It features an integrated lamp for combined ventilation and lighting solutions.
Technical Specifications
Product Overview
High-Efficiency HVLS Ventilation

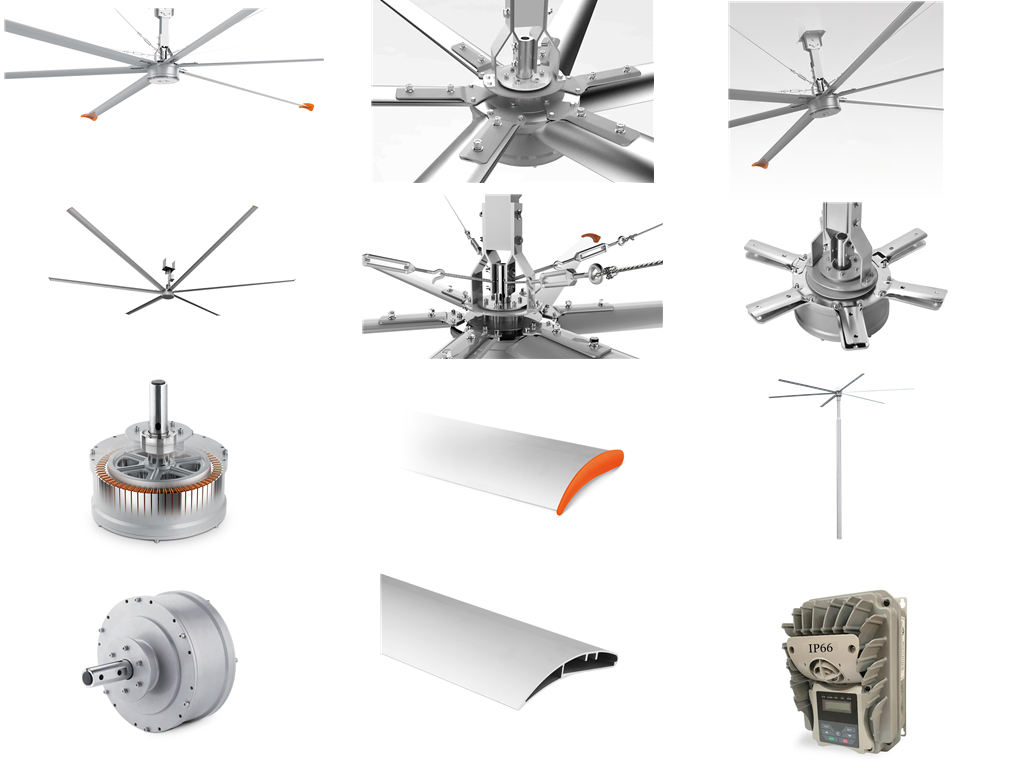

This smart permanent magnet large ceiling fan is engineered to significantly improve comfort in large-scale environments such as industrial plants, logistics warehouses, and commercial exhibition halls. Utilizing advanced variable frequency speed control and a high-efficiency external rotor motor, it delivers powerful airflow with minimal noise and energy consumption. The integrated lamp design provides a dual-purpose solution for both air circulation and illumination, creating a more comfortable and productive space.
Technical Specifications
Performance Matrix
| Model | Diameter (m) | Power (kW) | Air Volume (m³/min) |
|---|---|---|---|
| HDS-3 | 3 | 0.37 | 4,000 |
| HDS-3.7 | 3.7 | 0.37 | 5,000 |
| HDS-4.3 | 4.3 | 0.75 | 7,000 |
| HDS-5 | 5 | 0.75 | 10,000 |
| HDS-5.5 | 5.5 | 1.1 | 11,000 |
| HDS-6.1 | 6.1 | 1.1 | 11,500 |
| HDS-6.7 | 6.7 | 1.1 | 12,000 |
| HDS-7.3 | 7.3 | 1.1 | 13,000 |
Electrical Characteristics
220 V
Voltage Range
50 Hz
Frequency
38 dB
Noise Level
Design & Construction
Protection Rating
IP66
- Key Features
- Permanent Magnet MotorVariable Frequency ControlIntegrated LightingLow NoiseEnergy Efficient

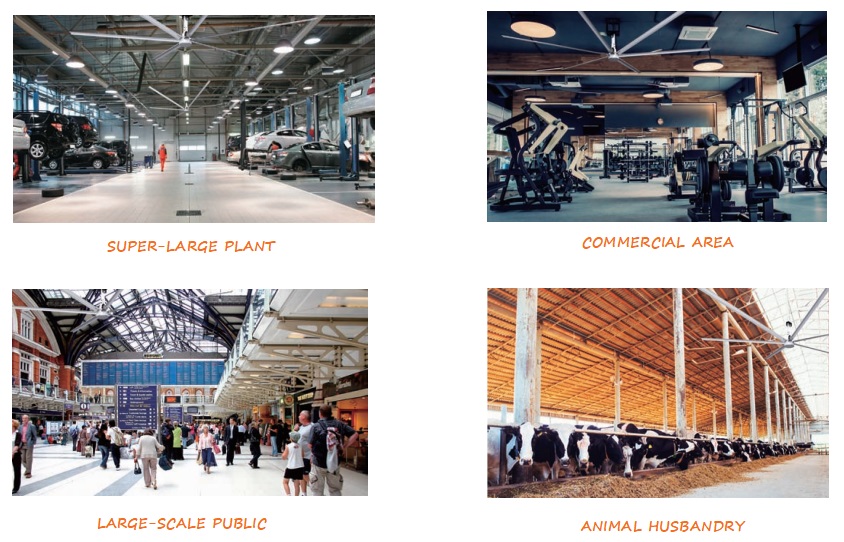

Applications
Recommended Use Cases
- Industrial Plants
- Logistics Warehousing
- Shopping Malls
- Exhibition Halls
- Gymnasiums
- Animal Husbandry
