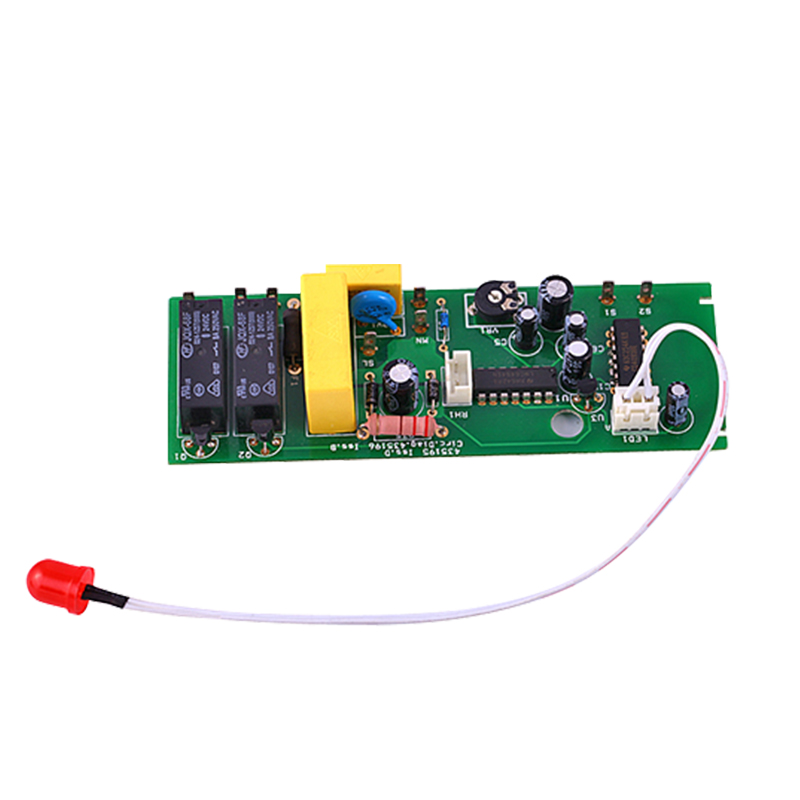

HVAC PCBA Controller
This PCBA controller is designed for HVAC systems. It manages temperature and airflow within air conditioning units.
Technical Specifications
Product Overview
Custom HVAC PCBA Solutions
We specialize in the design and manufacturing of high-performance PCBA controllers tailored for HVAC applications, including air purifiers, dehumidifiers, heaters, and ventilation systems. Our end-to-end OEM/ODM services cover everything from initial concept and prototype development to regulatory certification and mass production. With flexible design processes and robust supply chain management, we help you bring reliable, intelligent control solutions to market efficiently.
Technical Specifications
Control Capabilities
- Real-time temperature monitoring
- Humidity control triggers (50%-90% RH)
- PWM stepless speed control
- Timer and delay-off settings
- Wireless connectivity (WiFi/Bluetooth)
- Infrared remote control support
Key Components
- Relays (e.g., JQX-48F, 133-1A-12DS-F)
- Operational Amplifiers (e.g., LM358)
- Integrated Circuits (e.g., CD4009)
- Battery backup for settings
- Terminal blocks for wiring
- LED indicators
Performance Metrics
12 V
Operating Voltage (DC)
1,000 W
Max Load Power
60 °C
Max Operating Temp
- Supported Applications
- Air PurifiersDehumidifiersHeatersVentilatorsBlowersFansHumidifiersAir Conditioners
Service & Manufacturing
Our OEM/ODM Workflow
| Phase | Description |
|---|---|
| Consultation | Defining requirements and application specifications |
| Prototyping | Building network PCBA controllers for development |
| Certification | Completing regulatory certifications (CE, UL, FCC) |
| Production | Mass production, quality control, and logistics |
