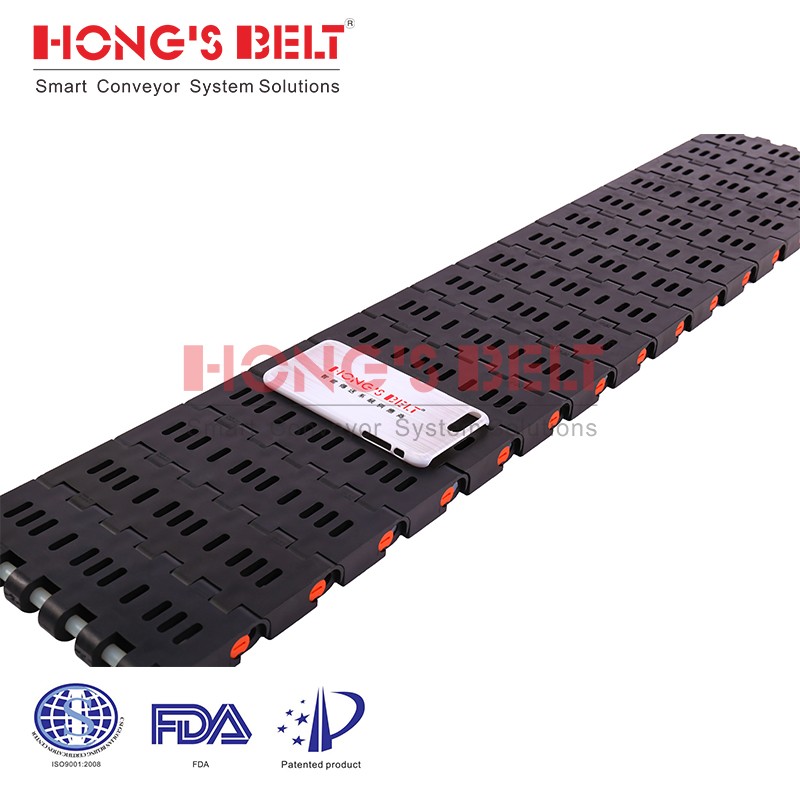

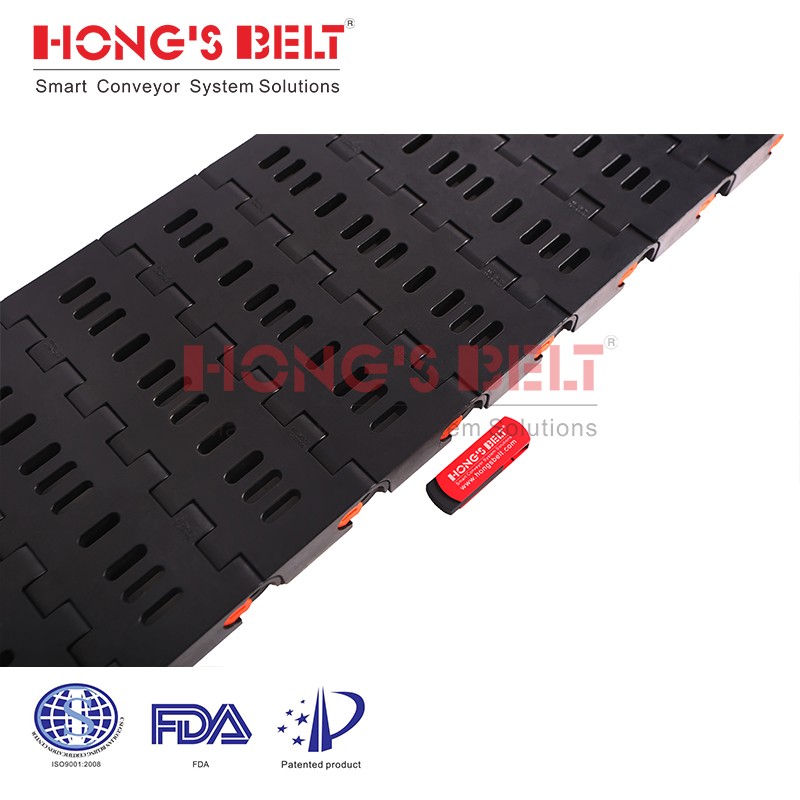

HS-1800B Modular Plastic Conveyor Belt
The HS-1800B modular plastic conveyor belt is designed for car washing lines and various industrial applications. Its modular design allows for easy assembly and maintenance, ensuring efficient operation.
Technical Specifications
Overview
High-Performance Modular Conveyor Solution
The HS-1800B is a high-performance modular plastic conveyor belt engineered for durability and versatility in demanding industrial environments. It features a robust design that is resistant to water, chemicals, and abrasion, making it ideal for applications ranging from car washing lines to complex food processing. With a modular structure that allows for easy assembly and maintenance, this belt ensures operational efficiency and minimal downtime.
Technical Specifications
- Pitch
- 63.5 mm
- Thickness
- 25 mm
- Minimum Width
- 200 mm
- Rod Diameter
- 10 mm
- Open Area
- 0%
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Available Colors
WhiteBlueGrayNatureDark-brown
Sprocket Dimensions
- Sprocket Size: 10T, 13T, 15T
- Bore Type: Square bore & Round bore
- Available Materials
- PPPOMPEPA
Features & Compliance
Key Advantages
- Floating in water
- Food defrosting capable
- Maintenance-free
- Easy to clean
- High load capacity (up to 1.2 tons/sqm)
- Approvals
- FDAEU
Applications
Industry Applications
| Sector | Applications |
|---|---|
| Food Industry | Meat (beef & pork), Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire manufacturing, Packaging, Printing/Paper, Postal, Corrugated cardboard, Can/PET manufacturing, Textile |
