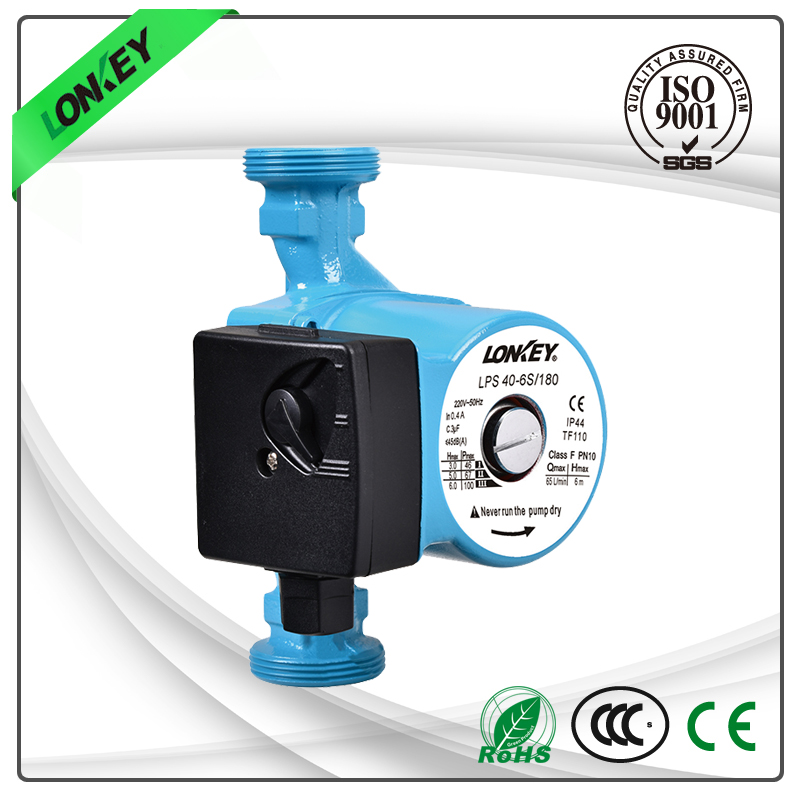

Hot Water Circulation Pump
This hot water circulation pump is designed for 220V-50Hz operation. It has a maximum flow rate of 65 l/min and a maximum head of 6 meters.
Technical Specifications
Overview
High-Efficiency Hot Water Circulation
This hot water circulator pump is engineered for reliable residential and light commercial heating applications. It features a robust design with thermal protection and an IP44 rating, ensuring durability against splashes and solid objects. With a maximum flow rate of 65 l/min and a maximum head of 6 meters, it provides consistent performance for hot water systems.
Technical Specifications
Electrical Requirements
220 V
Voltage
50 Hz
Frequency
0.4 A
Input Current
Performance Capacity
65 l/min
Max Flow Rate
6 m
Max Head
Power Consumption Settings
| Head (m) | Power (W) |
|---|---|
| 3 | 46 |
| 5 | 67 |
| 6 | 100 |
Safety & Compliance
Protection Ratings
IP44TF 110Class F PN10
Important Operating Warnings
- Never run the pump dry
- Noise levels less than 45dB(A)
- Certifications
- CEISO 9001SGSROHSCCE
