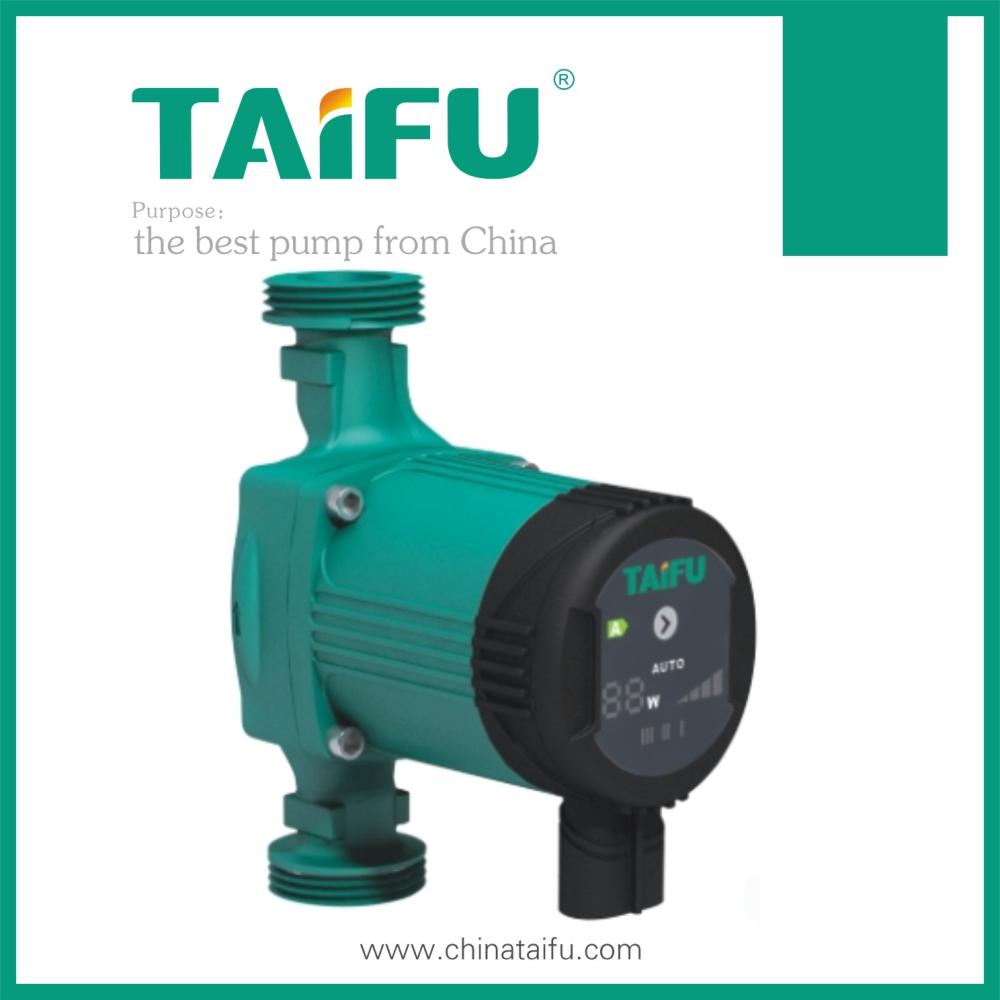

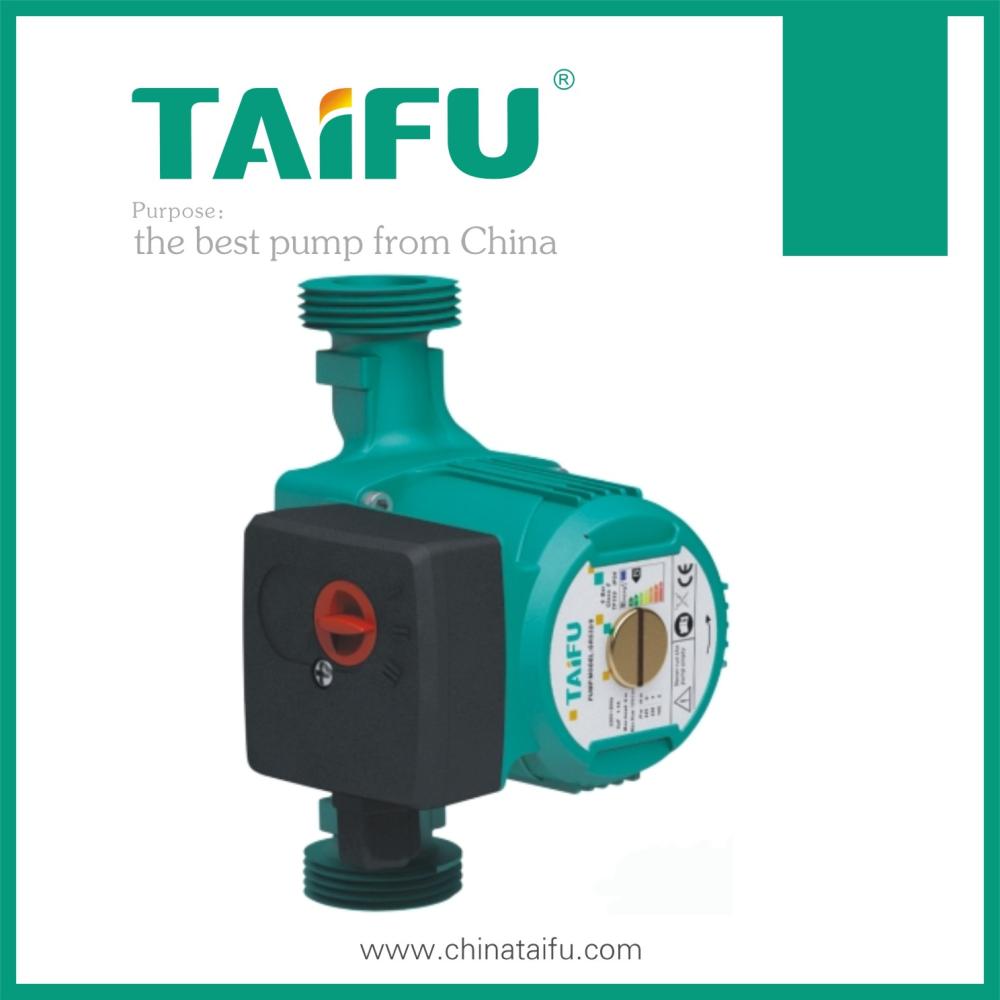

Hot Water Circulation Pump
This hot water circulation pump is designed for heating and air-conditioning systems. It is also suitable for hot-water service systems with bronze or stainless steel housings.
Technical Specifications
Overview
High-Efficiency Circulation Pump
This versatile circulation pump is engineered for heating, air-conditioning, and hot-water service systems. Designed for both residential and light commercial use, it offers reliable performance across a wide range of applications, including underfloor heating, solar systems, and heat recovery units. With a focus on energy efficiency and quiet operation, this maintenance-free unit provides a dependable solution for fluid circulation needs.
Technical Specifications
Key Performance Metrics
40 L/min
Flow Rate
6 m
Max Head
180 mm
Port-to-Port Distance
Electrical Specifications
| Parameter | Value |
|---|---|
| Voltage | 230V |
| Frequency | 50Hz |
| Current | 0.45A |
| Capacitor | 3µF |
- Protection Rating
- IP54 TF110
Features
Key Features
- Maintenance-free operation
- Low-noise performance
- Energy-efficient design
- Variable speed control
- Corrosion-resistant housing options (Bronze or Stainless Steel)
- Certifications
- CEISO9001
Applications
Typical Applications
- Heating systems (One- and two-pipe)
- Underfloor heating
- Solar and geothermal heating
- Air-conditioning systems
- Heat pump and heat recovery systems
- Domestic hot-water service
Warranty
- Warranty Period
- 2 years
