Hot-Dip Galvanized Steel Suspension Hook for Aerial Cables
This suspension hook is designed for aerial cables and service lines. It is made of hot-dip galvanized steel, and its installation length can be adjusted.
Technical Specifications
Product Overview
Professional Aerial Cable Suspension
The SOT101 hook is a precision-engineered solution designed specifically for the secure suspension of aerial cables and service lines. Constructed from high-quality steel with a hot-dip galvanized finish, it offers superior resistance to environmental degradation. The adjustable design allows for flexible installation, ensuring compatibility with diverse utility pole configurations.
Technical Specifications
Dimensions and Load Performance

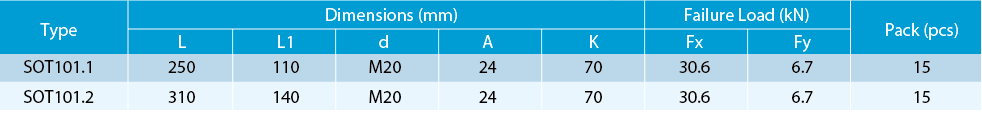

| Type | Length L (mm) | L1 (mm) | Thread (d) | Fx Load (kN) | Fy Load (kN) |
|---|---|---|---|---|---|
| SOT101.1 | 250 | 110 | M20 | 30.6 | 6.7 |
| SOT101.2 | 310 | 140 | M20 | 30.6 | 6.7 |
General Information
Key Features
- Hot-dip galvanized steel for corrosion resistance
- Adjustable installation length via nut and flexible braces
- M20 standard thread diameter
- Standardized dimension A (24mm) and K (70mm)
Packaging
15 pcs
Pieces per Pack
