Hot-Dip Galvanized Steel Aerial Cable Hook
This steel hook is designed for aerial cable and service line applications. It features adjustable installation length using a nut, flexible brace, and welded brace.
Technical Specifications
Overview
High-Performance Aerial Cable Hook
This hot-dip galvanized steel hook is designed specifically for securing aerial cables and service lines. It features a robust construction that ensures durability and long-term reliability in outdoor electrical transmission and distribution systems. The design incorporates a flexible and welded brace system with an adjustable nut, allowing for precise installation length adjustments to meet specific site requirements.
- Key Features
- Hot-dip galvanized steelAdjustable installation lengthCorrosion resistantAerial cable support
Technical Specifications

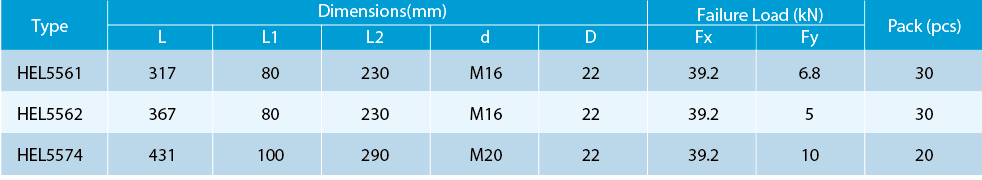

Dimensions and Load Capacities
| Model | L (mm) | L1 (mm) | L2 (mm) | Thread (d) | D (mm) | Fx Load (kN) | Fy Load (kN) | Pack (pcs) |
|---|---|---|---|---|---|---|---|---|
| HEL5561 | 317 | 80 | 230 | M16 | 22 | 39.2 | 6.8 | 30 |
| HEL5562 | 367 | 80 | 230 | M16 | 22 | 39.2 | 5 | 30 |
| HEL5574 | 431 | 100 | 290 | M20 | 22 | 39.2 | 10 | 20 |
