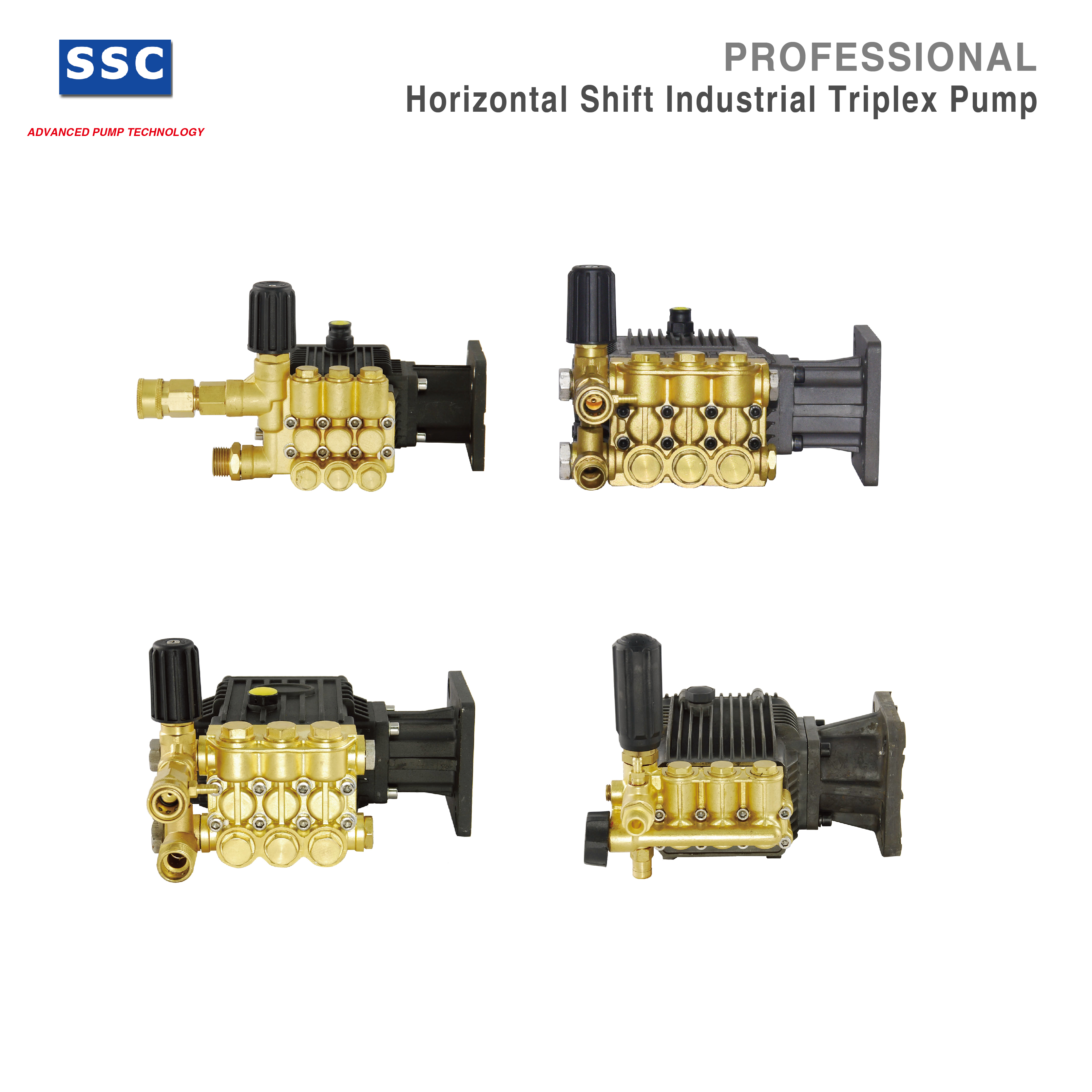

Horizontal Triplex Pump for Industrial Applications
This horizontal triplex pump is designed for demanding industrial applications. It features a brass pump head, low-pressure detergent injection, and thermal and safety valves.
Technical Specifications
Overview
Professional-Grade Triplex Pump
This horizontal shift industrial triplex pump is engineered for demanding high-pressure applications, including industrial cleaning and fluid transfer. Featuring a robust brass pump head and a precision crank mechanism, it is designed for compatibility with horizontal shaft engines. With advanced safety features like thermal relief and safety valves, this pump delivers consistent, reliable performance in rigorous work environments.
Technical Specifications
- Pump Type
- Crank (For Horizontal Shaft Engine)
- Pump Head Material
- Brass
Performance Metrics
Model Performance Data
| Model | Max Pressure | Rated Pressure | Rated Flow | Engine Req. |
|---|---|---|---|---|
| GA-34A | 200 bar (2900 psi) | 150 bar (2200 psi) | 8 L/min (2.1 GPM) | 5.5 HP |
| GA-34B | 220 bar (3200 psi) | 175 bar (2500 psi) | 9 L/min (2.4 GPM) | 6.5 HP |
Features
Safety and Operation Features
- Low-pressure detergent injection
- Thermal relief valve
- Safety valve
