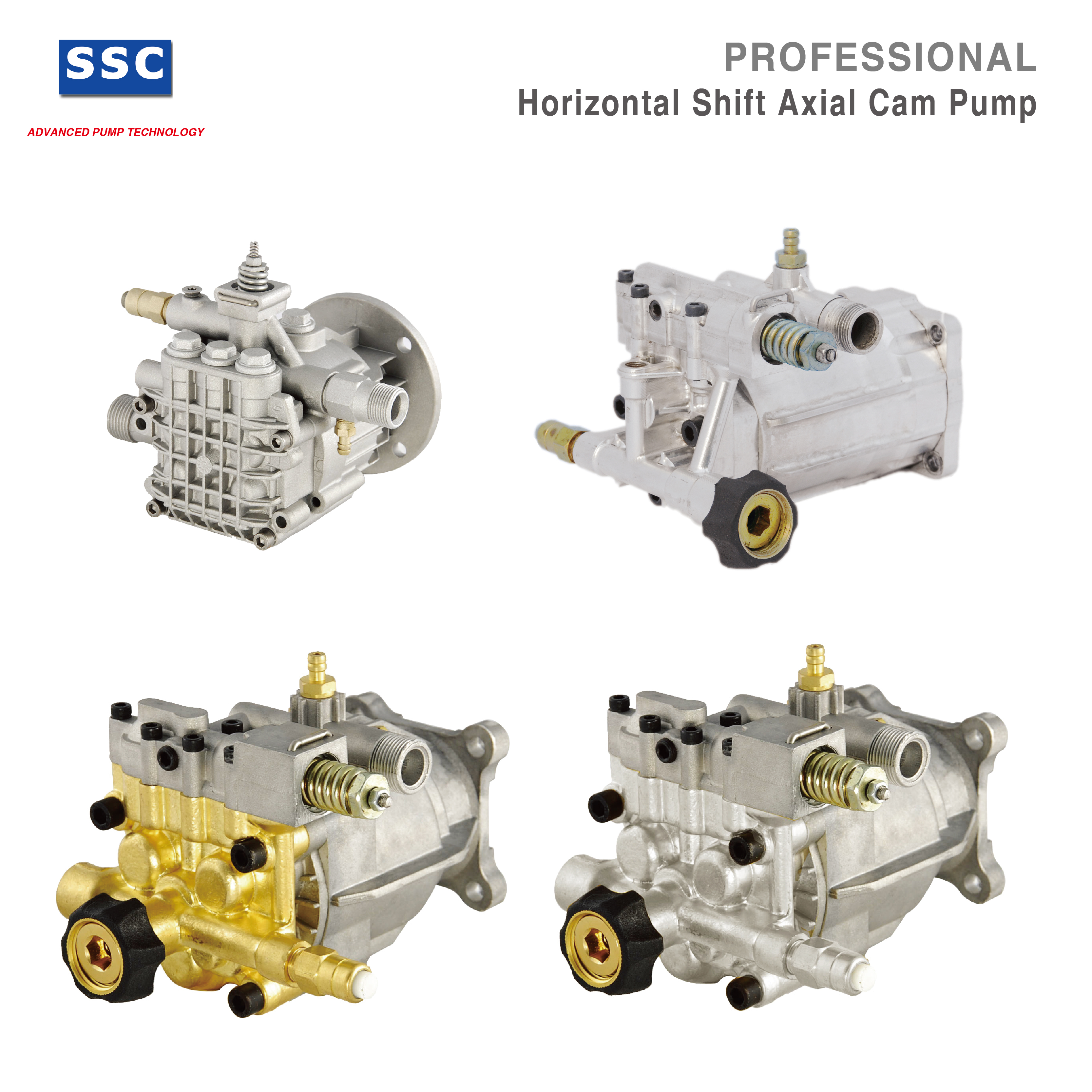

Horizontal Shift Axial Cam Pump for Pressure Washers
This horizontal shift axial cam pump is designed for residential applications. Its robust construction ensures durability and efficient operation for pressure washers and other high-pressure cleaning equipment.
Technical Specifications
Overview
Professional Residential Axial Cam Pump
This horizontal shift axial cam pump is engineered for residential pressure washing applications, offering high efficiency and a compact design. Built with robust materials for long-lasting durability, it provides consistent performance in demanding cleaning tasks. The series is available in two distinct configurations to match your specific power requirements and pressure needs.
Performance Data
Technical Specifications Table
| Model | Max Pressure | Rated Pressure | Rated Flow | Required HP |
|---|---|---|---|---|
| GQX-31B | 130 bar (1900 psi) | 90 bar (1300 psi) | 6 L/min (1.6 GPM) | 2.6 HP |
| GQX-31E | 150 bar (2200 psi) | 110 bar (1600 psi) | 6 L/min (1.6 GPM) | 4.0 HP |
Construction
- Pump Head Material
- Aluminum
Applications
- Ideal Use Cases
- Pressure WashersResidential CleaningHigh-Pressure Equipment
