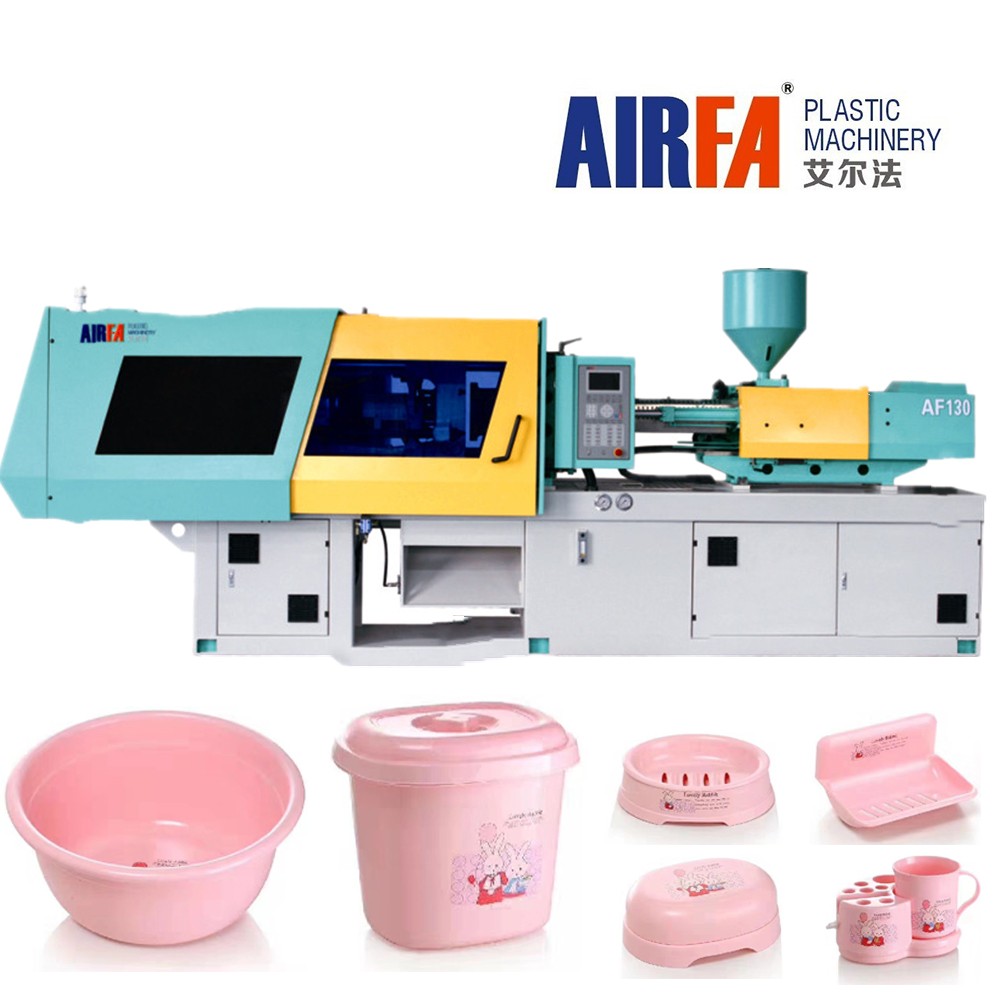

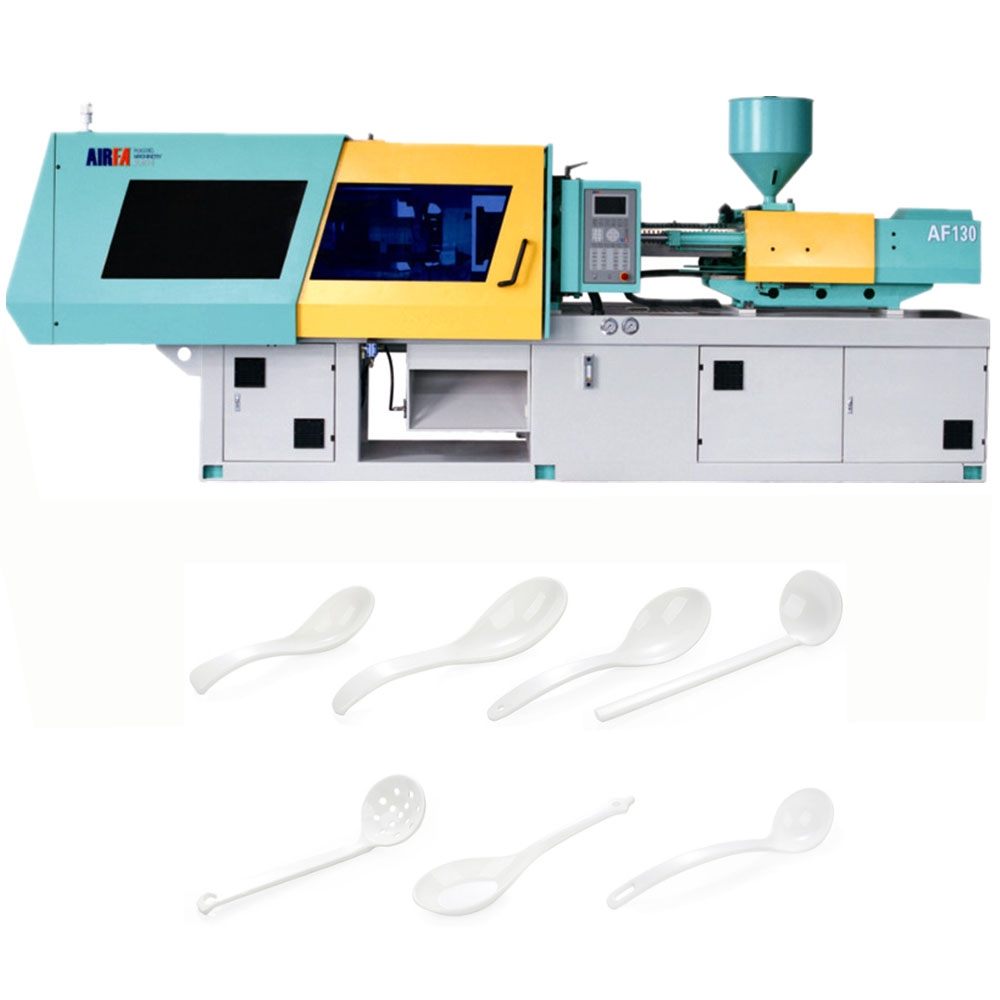

Horizontal Plastic Injection Molding Machine

High-Precision Horizontal Injection Molding Machine

The AF series injection molding machine is designed for high-speed, reliable production using double linear motion guides and an energy-saving servo control system. It features a robust clamping unit with an optimized platen design and a twin-nozzle injection structure for stable performance. This machine is ideal for professional buyers seeking a precise, efficient solution for manufacturing a wide range of plastic products with reduced noise and lower power consumption.

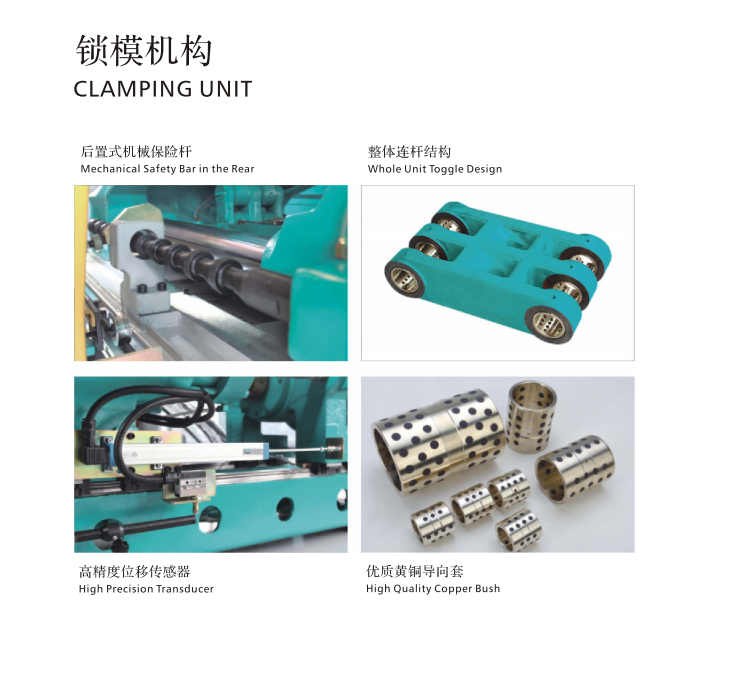

Clamping System Features

• Optimized Platen Design with high rigidity
• Enlarged space between tie bars
• Euromap-based Platen Layout (T-slot & tap holes)
• Longer ejection stroke and bigger space
• Hydraulic driven gear-type mold height adjustment
• Mechanical safety interlock relocation for easier operation
• Linkage structure for front connecting rod

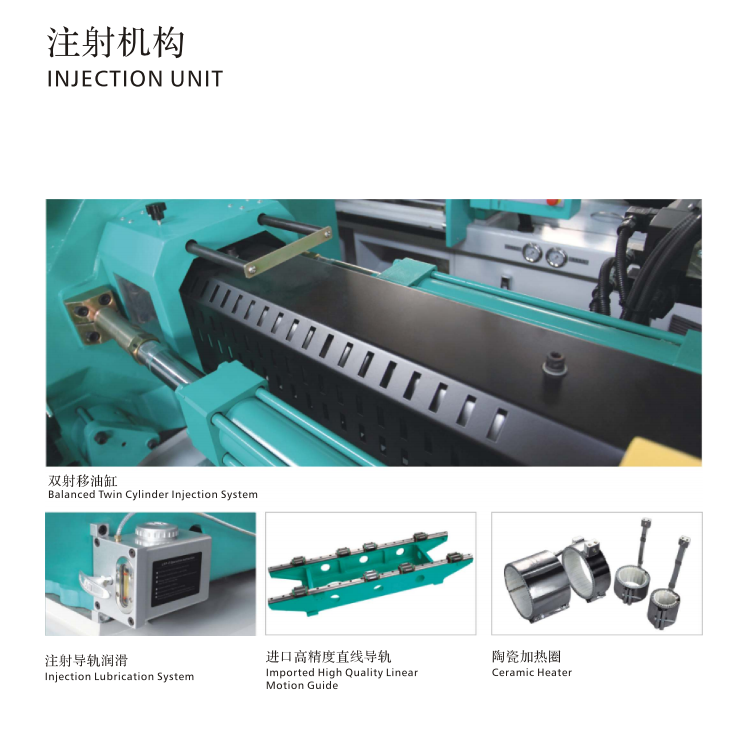

Injection System Features

• High Quality Linear Motion Guides
• High Speed & Pressure injection structure
• Twin nozzle cylinder for even stability
• Specialized screw barrel designs available
• Balanced Twin Cylinder Injection System
• Ceramic Heaters

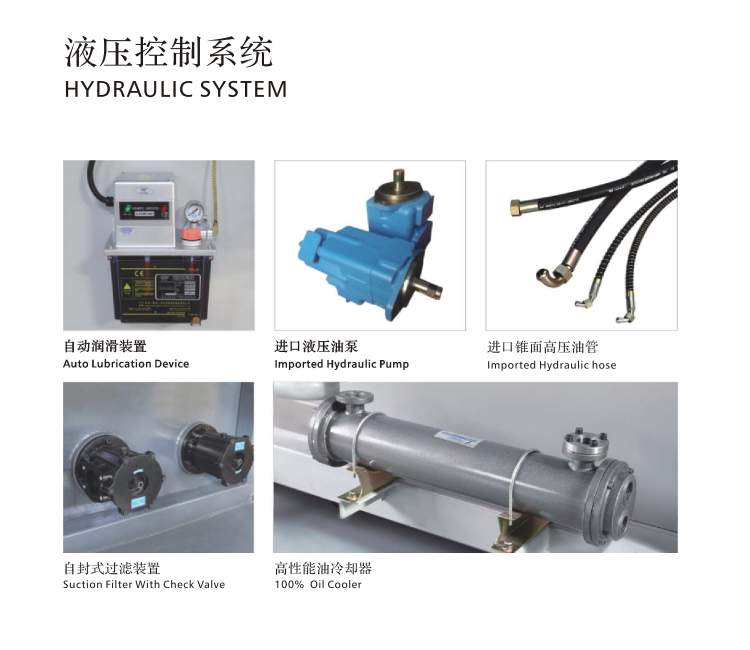

Hydraulic Performance

• Double proportional compound valve control
• Imported high-quality low-noise pump
• Low pressure mold protection system
• Independent grease & lubrication oil system
• Suction filter with check valve
• High-performance oil cooler

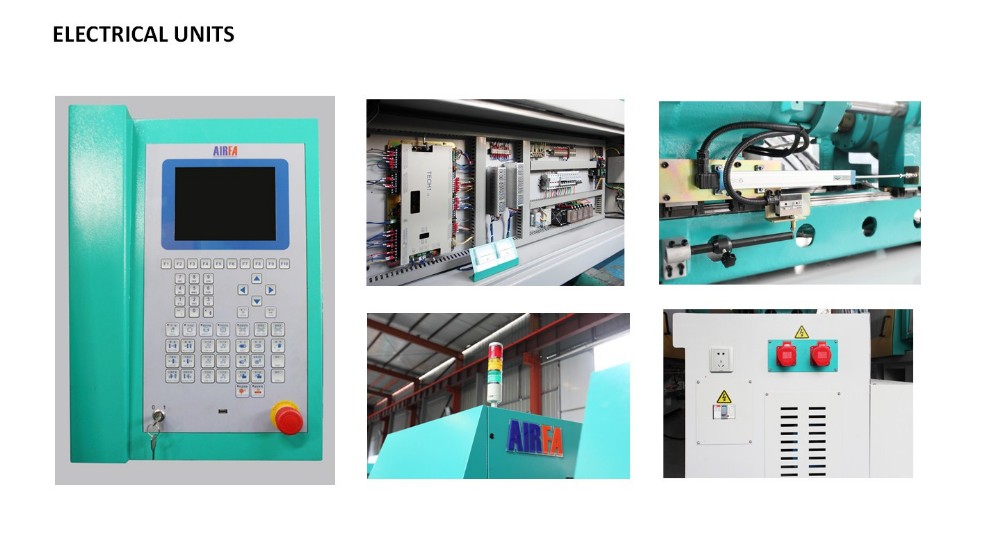

Control Hardware

Servo System Benefits
