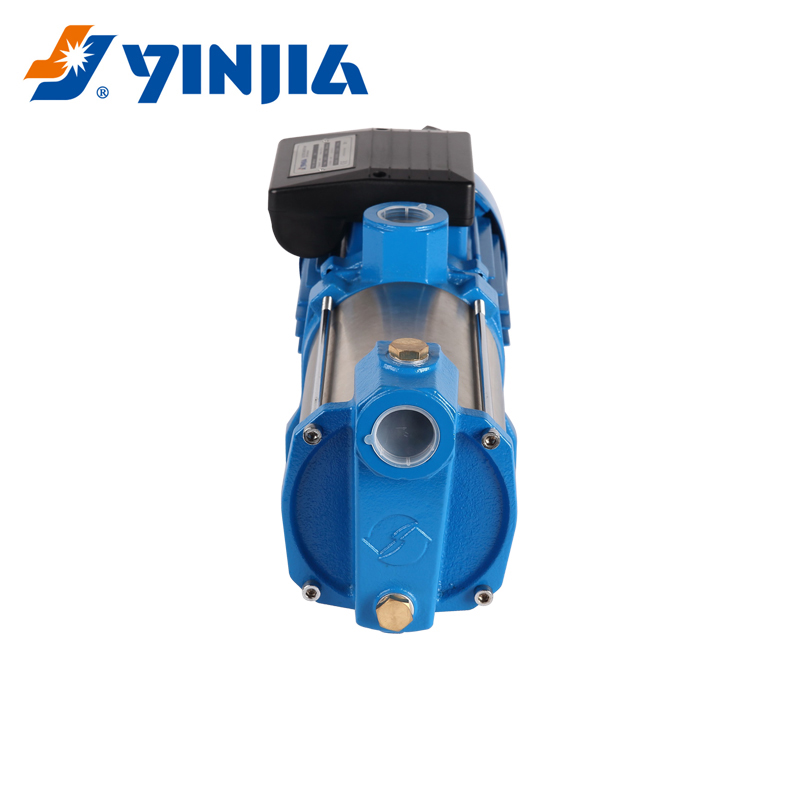

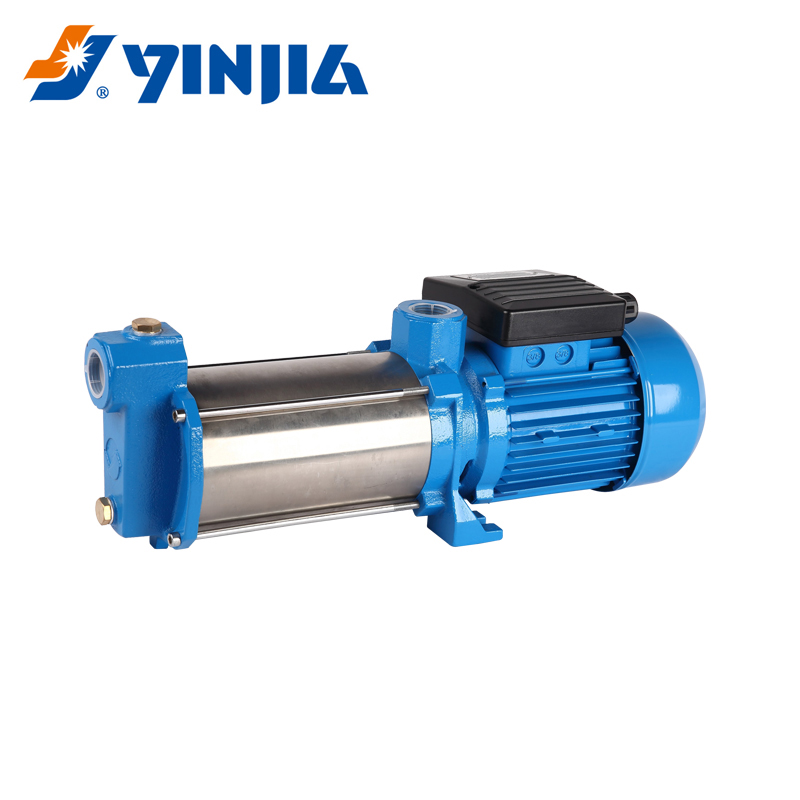

Horizontal Multistage Centrifugal Water Pump
This horizontal multistage centrifugal pump is designed for water boosting and irrigation. It features a stainless steel pump body and PPO diffusers.

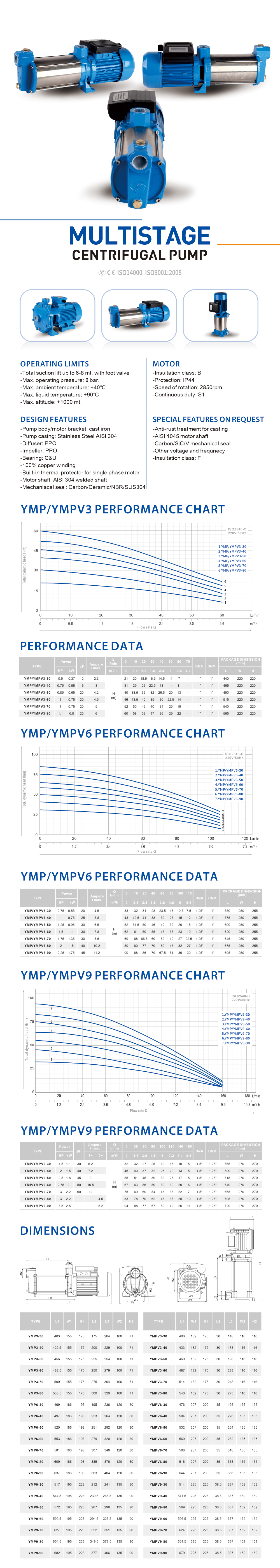

Technical Specifications
Overview
High-Efficiency Multistage Pumping
This horizontal multistage centrifugal pump is engineered for reliable water transfer and pressure boosting in residential, agricultural, and industrial settings. Featuring a durable stainless steel AISI 304 pump casing and high-performance PPO impellers, it ensures long-lasting operation with clean water. The unit is equipped with a built-in thermal protector and 100% copper winding, making it a robust choice for continuous duty applications.
Operating Limits
- Total Suction Lift
- 8 meters
- Max Operating Pressure
- 8 bar
- Max Ambient Temperature
- 40 °C
- Max Liquid Temperature
- 90 °C
- Max Altitude
- 1000 meters
Construction Materials
- Pump Casing
- Stainless Steel AISI 304
- Diffuser & Impeller
- PPO
- Pump Body/Bracket
- Cast Iron
- Motor Shaft
- AISI 304 Welded Shaft
- Mechanical Seal
- Carbon/Ceramic/NBR/SUS304
Motor Specifications
- Insulation Class
- B
- Protection Rating
- IP44
- Rotation Speed
- 2850 rpm
- Duty Cycle
- Continuous (S1)
Certifications
- Certifications
- CEISO 9001:2008ISO 14000
Special Options
Available Customizations
- Anti-rust treatment for casting
- AISI 1045 motor shaft
- Carbon/SiC/V mechanical seal
- Insulation class F
- Alternative voltage and frequency
