Product Overview

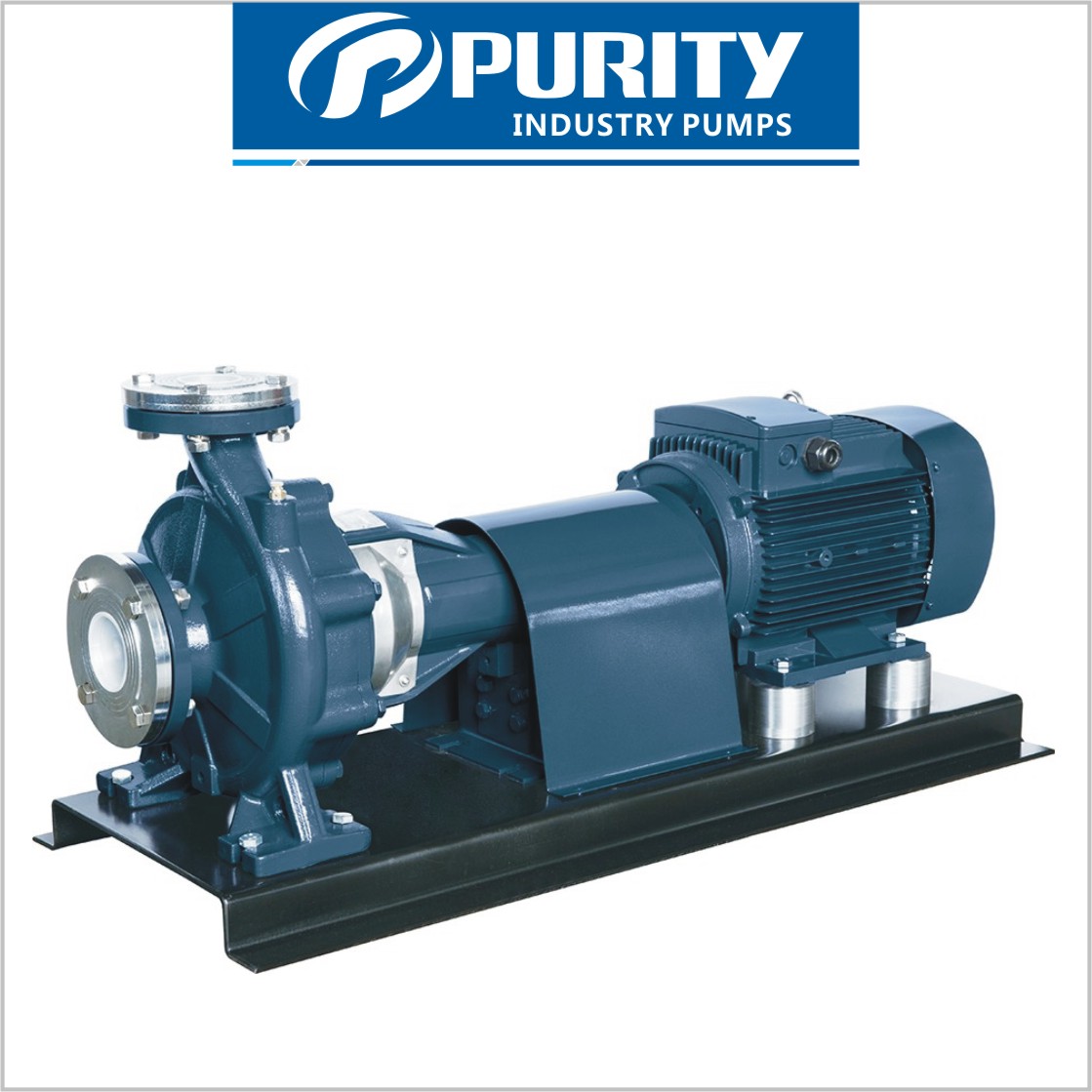

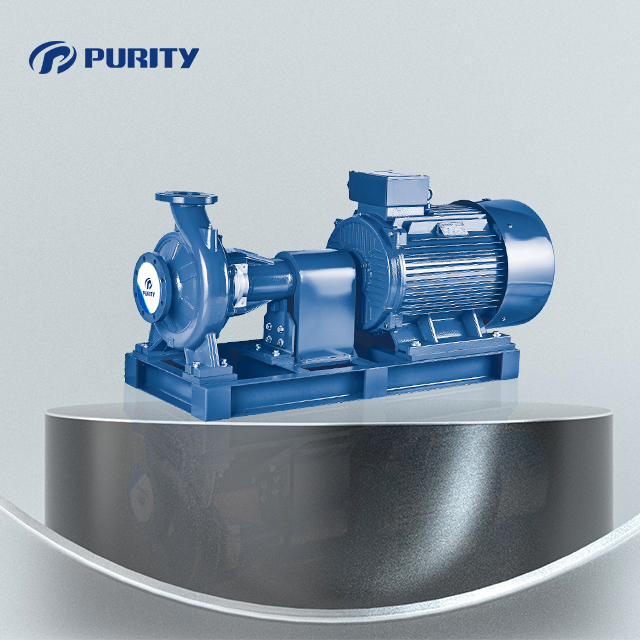

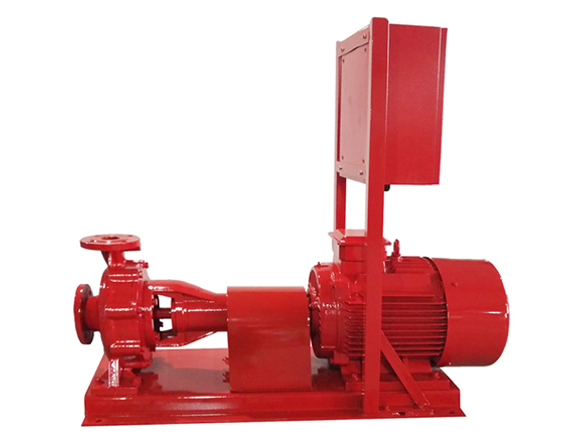

Professional Horizontal Centrifugal Pump
This EN733 standard centrifugal pump is engineered for high efficiency and reliability in professional water management systems. Featuring a robust, anti-corrosive coated case and high-performance mechanical seals, it is designed for demanding industrial, agricultural, and municipal applications. The unit supports continuous S1 service and offers versatile material options for impellers and shafts, ensuring long-term durability and consistent fluid transfer.
Technical Specifications
Materials
| Component | Material Options |
|---|---|
| Impeller | Stainless Steel AISI 304 or Cast Iron |
| Shaft | Stainless Steel AISI 304 or Galvanized Iron |
| Pump Case | Anti-corrosive coated cast metal |
- Design Standards
- EN733 StandardCE ApprovedIP55 Protection
Performance & Limits
Operating Limits
-10 °C
Min Liquid Temp
120 °C
Max Liquid Temp
50 °C
Max Ambient Temp
16 bar
Max Working Pressure
- Service Duty
- Continuous S1
Applications
Recommended Applications
- Water supply systems
- Pressure boosting sets
- Firefighting systems
- Irrigation and agricultural use
- Industrial water circulation
- Climatisation sets
