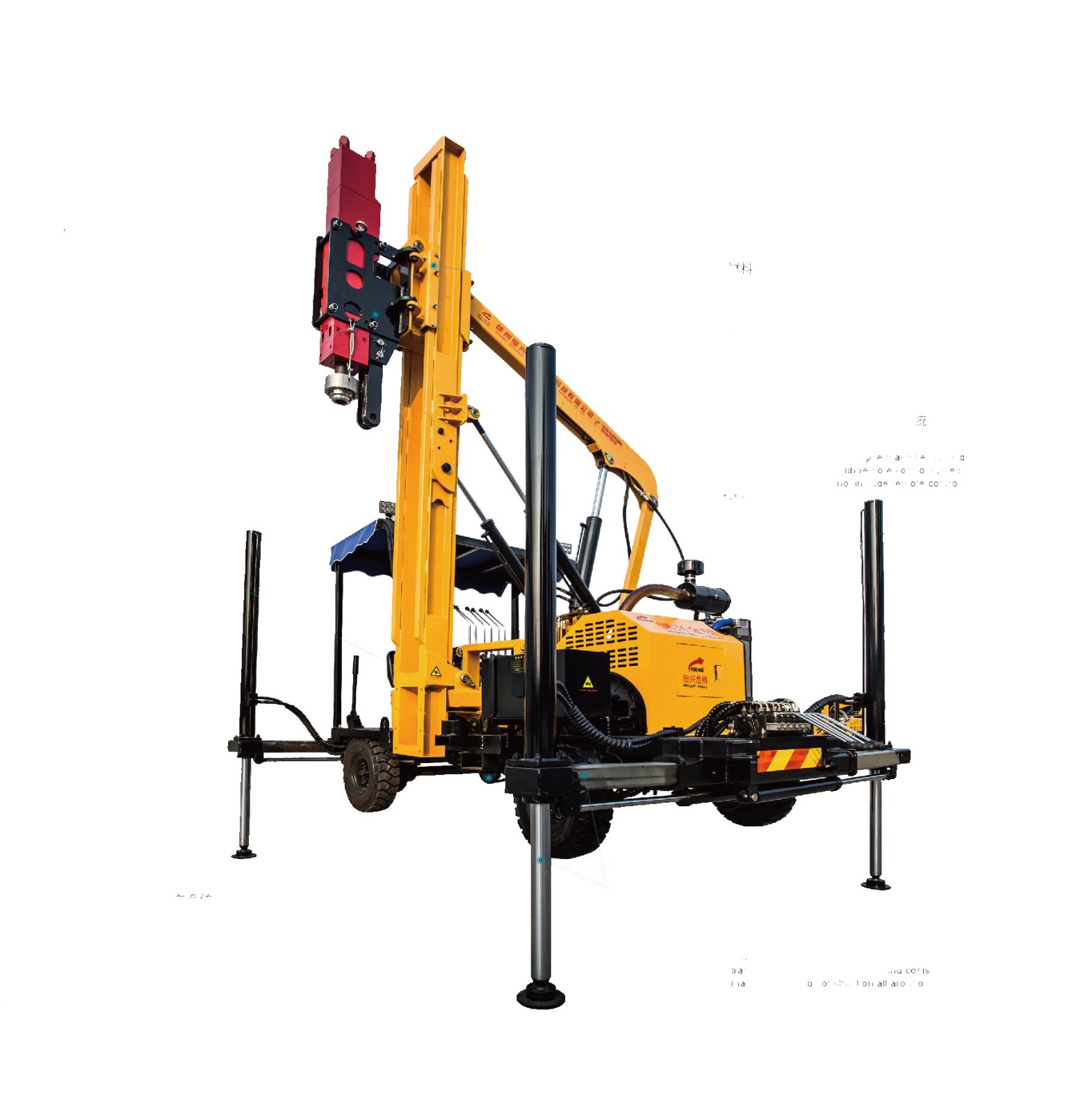

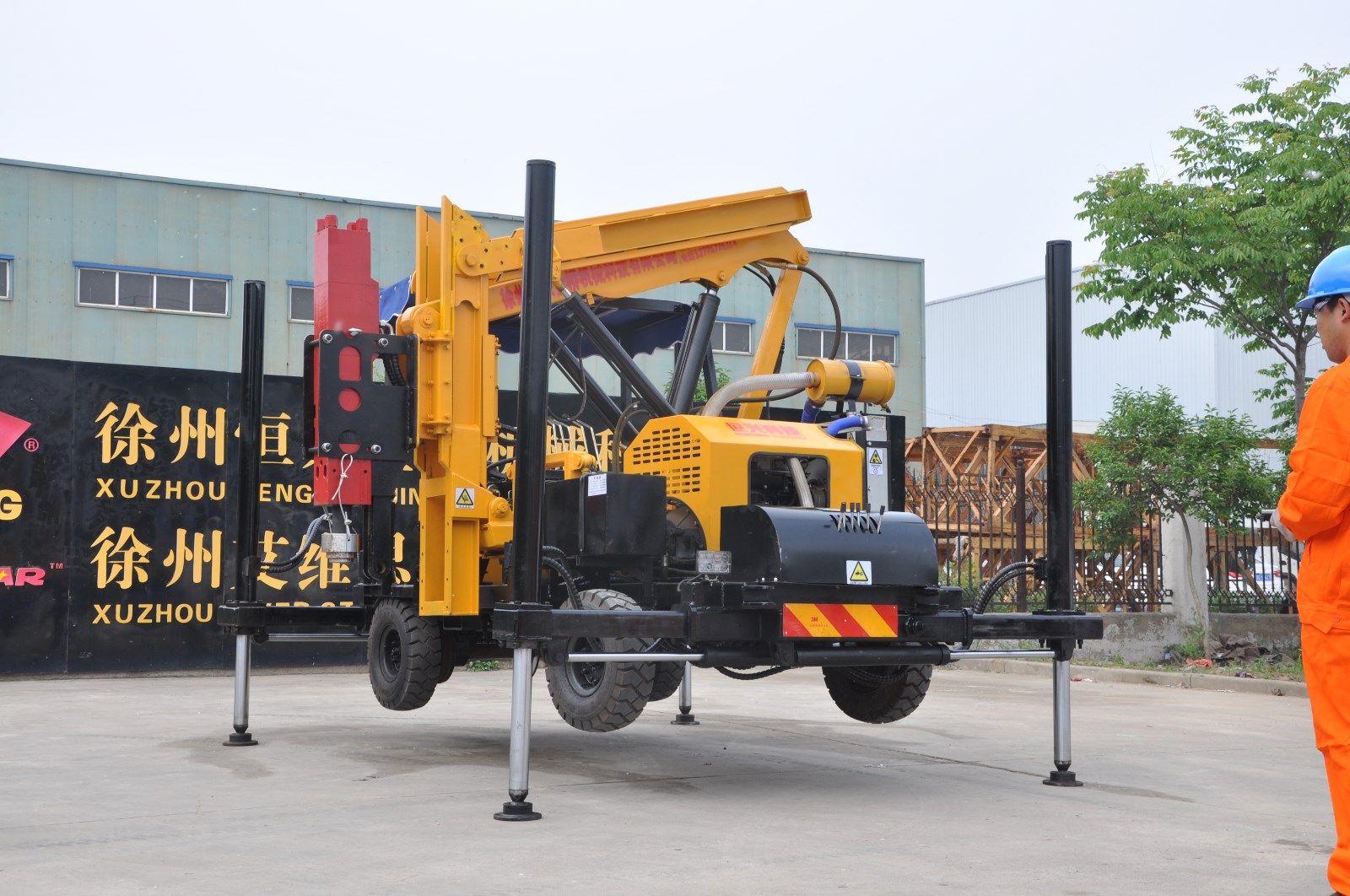

Highway Guardrail Post Driver with Hydraulic Hammer
This highway guardrail post driver is designed for efficient guardrail installation. It uses a hydraulic hammer and lifting guide rail for stable, precise pile driving.
Technical Specifications
Overview
High-Efficiency Piling Solution
This highway guardrail piling machine with an integrated hydraulic hammer is engineered for precision and stability in large-scale construction projects. It features a robust lifting guide rail system and a high-performance hydraulic setup, ensuring effective penetration across various soil conditions. Designed for versatility, it is an ideal choice for solar power station construction and highway guardrail installation, offering reliable operation and consistent performance.
- Primary Applications
- Highway Guardrail InstallationSolar Power Station ConstructionPiling Operations
- Warranty
- 1 year (excluding hammer)
- Standard Lead Time
- 3 days
Performance Metrics
Performance Highlights
33 KW
Engine Power
2,200 r/min
Rated Engine Speed
700 mm/min
Max Drilling Efficiency
30 degrees
Climbing Ability
Technical Specifications
Drilling Capabilities
| Parameter | Value |
|---|---|
| Borehole Diameter | 0-300 mm |
| Drilling Depth | 1700 mm |
| Mast Stroke | 2300 mm |
| Walking Speed | 3000-8000 m/h |
Hydraulic System
Hydraulic System Details
- System Pressure: 16-20 Mpa
- Flow Rate: 60-90 l/min
- Walking Motor Torque: 1850 Nm
- Rotary Motor Torque: 800-1800 Nm
Components & Features

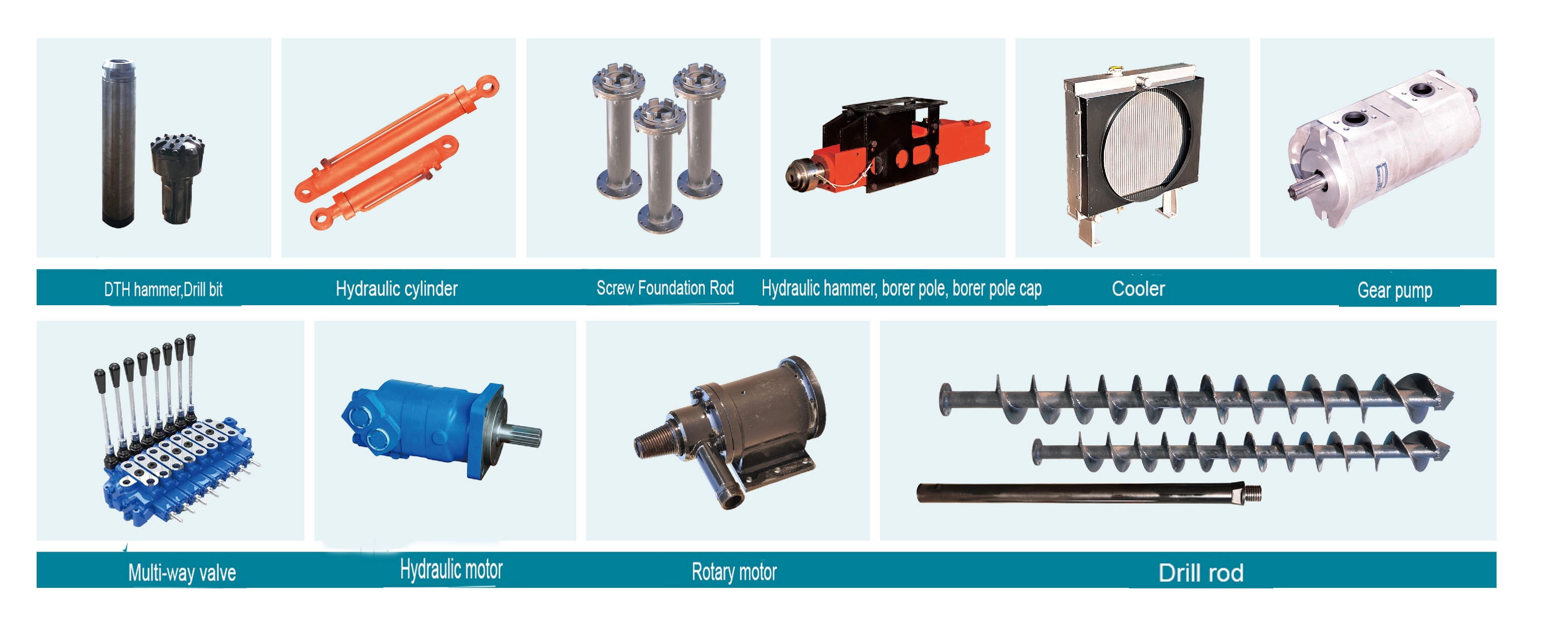

- Included Components
- DTH HammerDrill BitHydraulic CylinderScrew Foundation RodHydraulic MotorRotary MotorGear PumpCoolerMulti-way Valve
