Technical Specifications
Overview

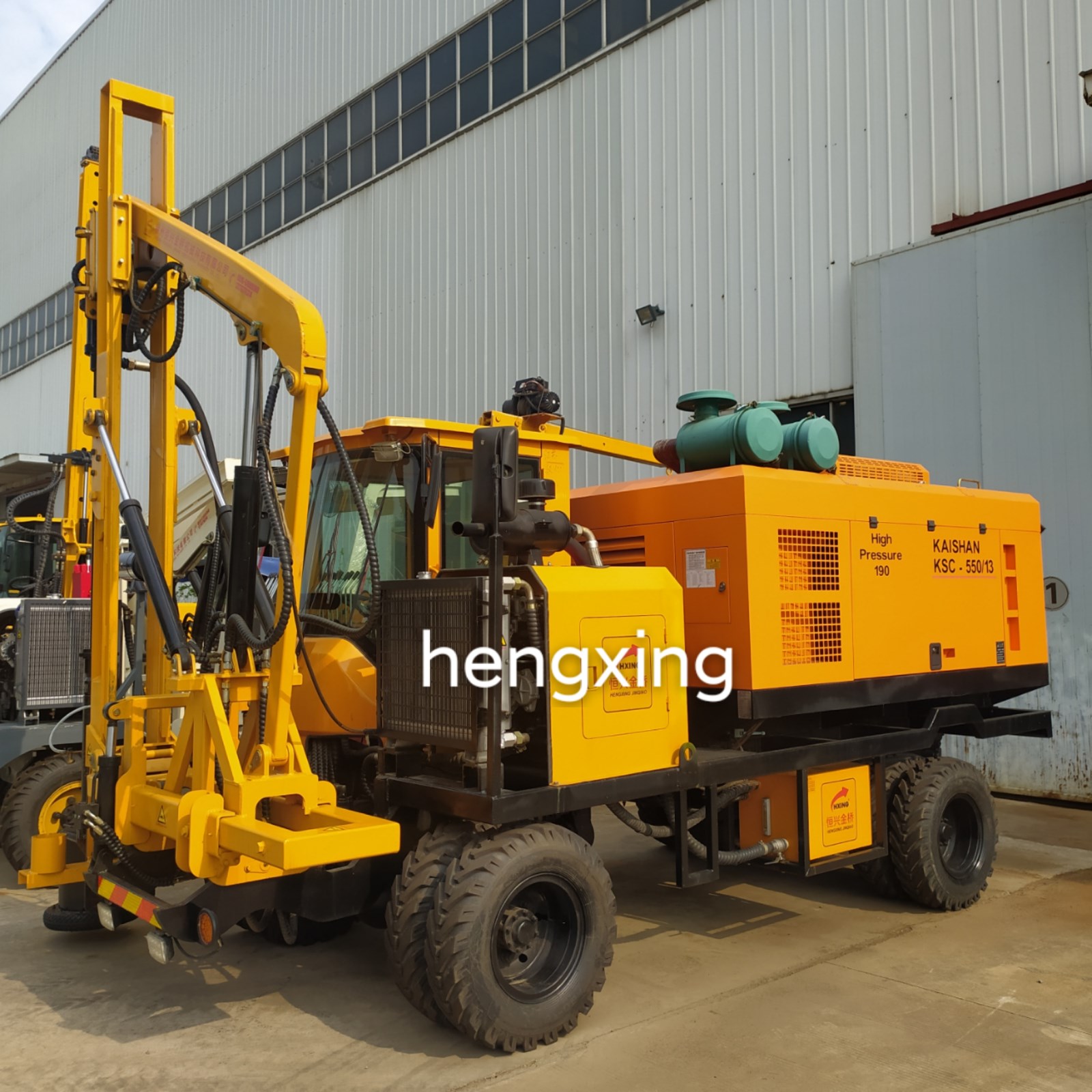

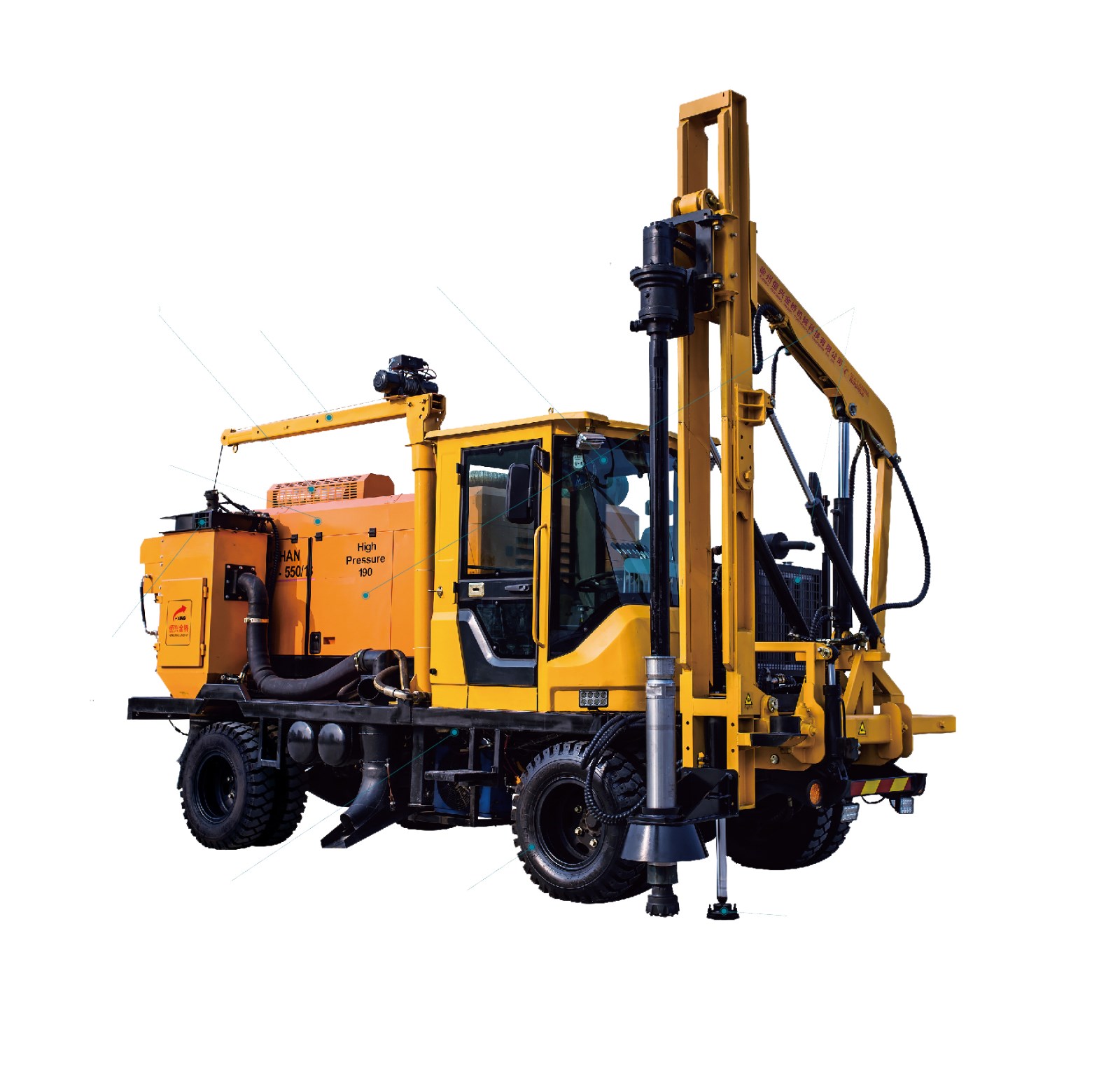

High-Efficiency Highway Pile Driver

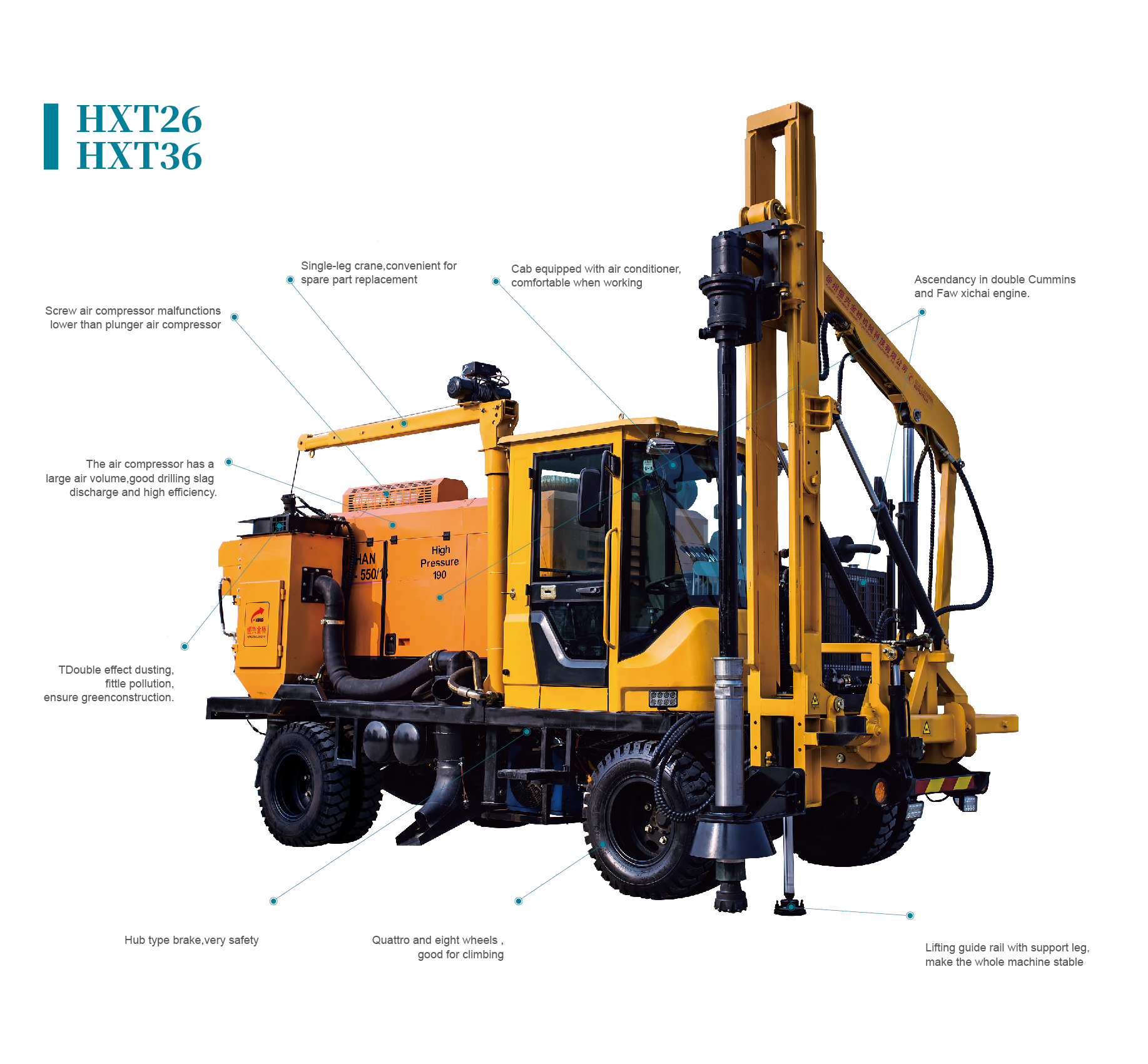

The HXT series highway guardrail construction pile driver is a self-propelled, integrated machine designed for precision installation of guardrails. Featuring a combined hydraulic system and powerful air compressor, it offers a self-contained solution for drilling and pile driving across various soil conditions. Engineered for stability and productivity, this equipment includes advanced features like a double-engine configuration and a comfortable operator cab, making it an essential tool for large-scale highway construction and maintenance projects.
Technical Specifications
Machine Dimensions
| State | Dimensions (L*W*H) |
|---|---|
| Folded | 5600*2250*2600 mm |
| Working | 5600*2650*3970 mm |
Physical Properties
7,000 kg
Vehicle Weight
2,150 mm
Chassis Body Width
3,000 mm
Turning Radius
Adjustable Angles
- Slide guide rack inclination: Left 30° / Right 10°
- Frame front/rear adjusting angle: ±12°
Performance
Hydraulic Hammer Performance
| Metric | Value |
|---|---|
| Hammer Type | YC260/YC360 |
| Working Flow | 50-90 l/min |
| Pressure | 11-14 / 12-15 Mpa |
| Shock Frequency | 400-800 Bpa |
| Hitting Force | 6-8 / 7-14 T |
Drilling Capabilities
1,700 mm
Drilling Depth
300 mm
Max Drilling Diameter
2,500 mm/min
Max Driving Efficiency
Engine & Mobility
Engine Power
132 Kw
Drilling Engine Power
53 Kw
Pile Driving Engine Power
- Mobility & Drive
- Four-wheel driveFour-wheel type air brake7.5-16 Tire type
