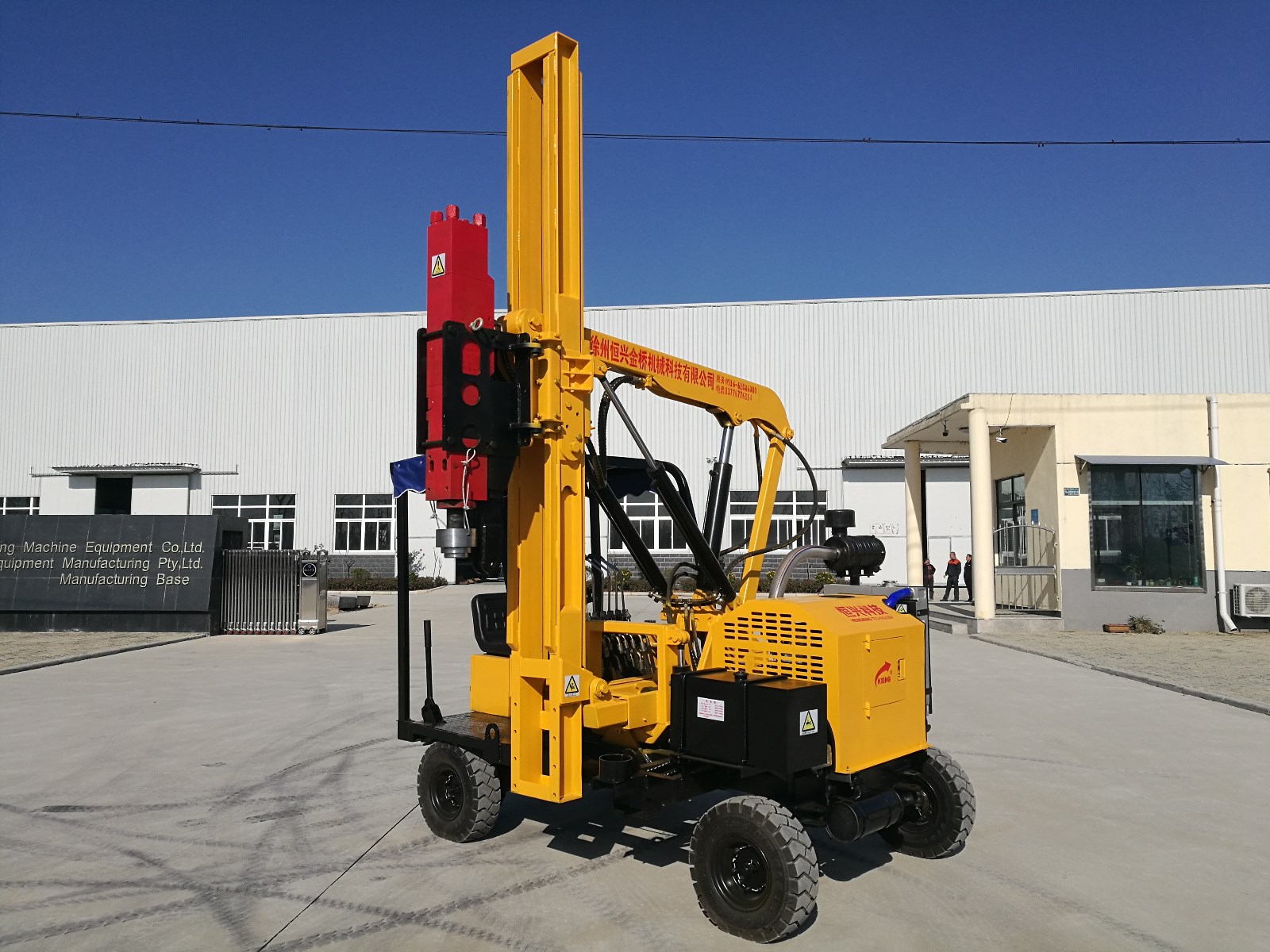

Highway Guardrail Hydraulic Pile Driver
This highway guardrail pile driver utilizes a hydraulic system for efficient and precise post installation. It is designed for installing various guardrail post shapes, enhancing efficiency and precision in guardrail projects.
Technical Specifications
Overview
Professional Guardrail Installation Solution
This hydraulic pile driver is a specialized construction machine engineered for the efficient installation and maintenance of highway guardrails. Featuring a robust hydraulic system, it offers precise control for driving posts into various terrains, making it an ideal choice for solar power station construction and road safety infrastructure projects. The unit is designed for maneuverability in confined spaces, ensuring high productivity and reduced labor costs on site.

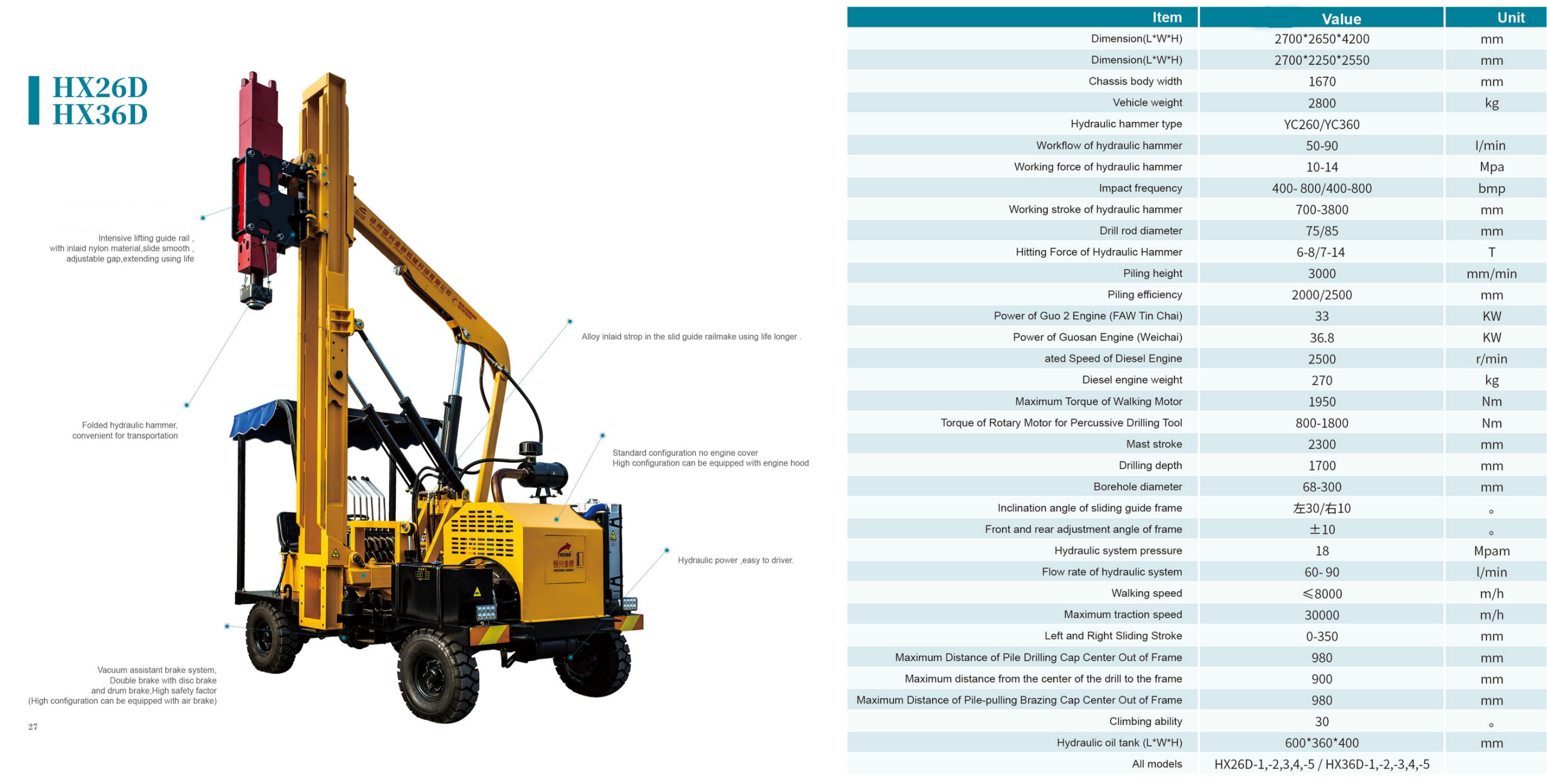

Technical Specifications
Engine Configuration
- Weichai Power (National III) - 36.8 kW
- Faw Xichai (National II) - 33 kW
Key Performance Metrics
2,800 kg
Vehicle Weight
3,000 mm/min
Piling Height
30 degrees
Climbing Ability
Hydraulic System Details
| Parameter | Value |
|---|---|
| System Pressure | 18 Mpa |
| Flow Rate | 60-90 l/min |
| Hammer Working Force | 10-14 Mpa |
| Impact Frequency | 400-800 bmp |
Capabilities

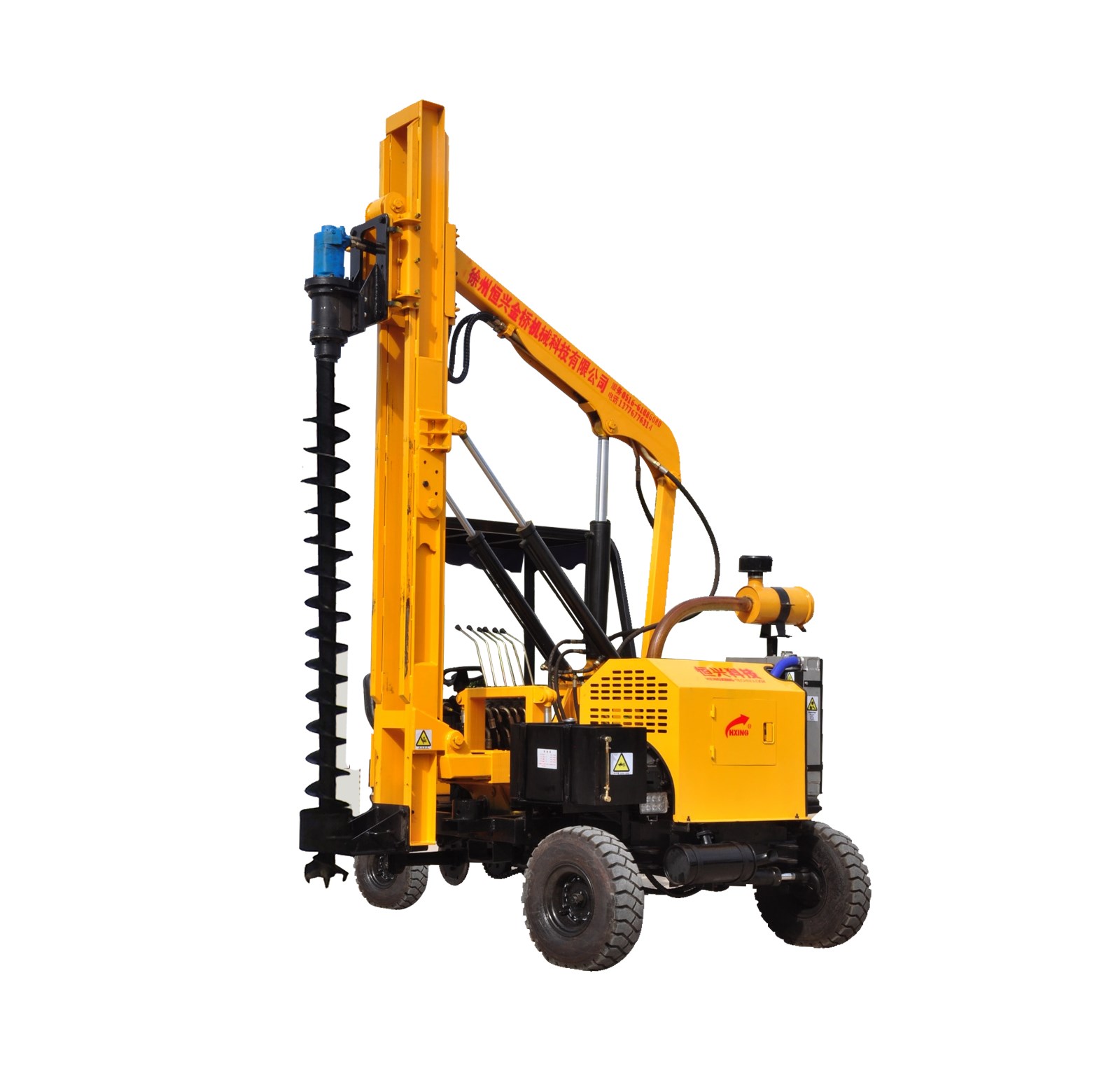

Drilling Capacity
1,700 mm
Drilling Depth
300 mm
Max Borehole Diameter

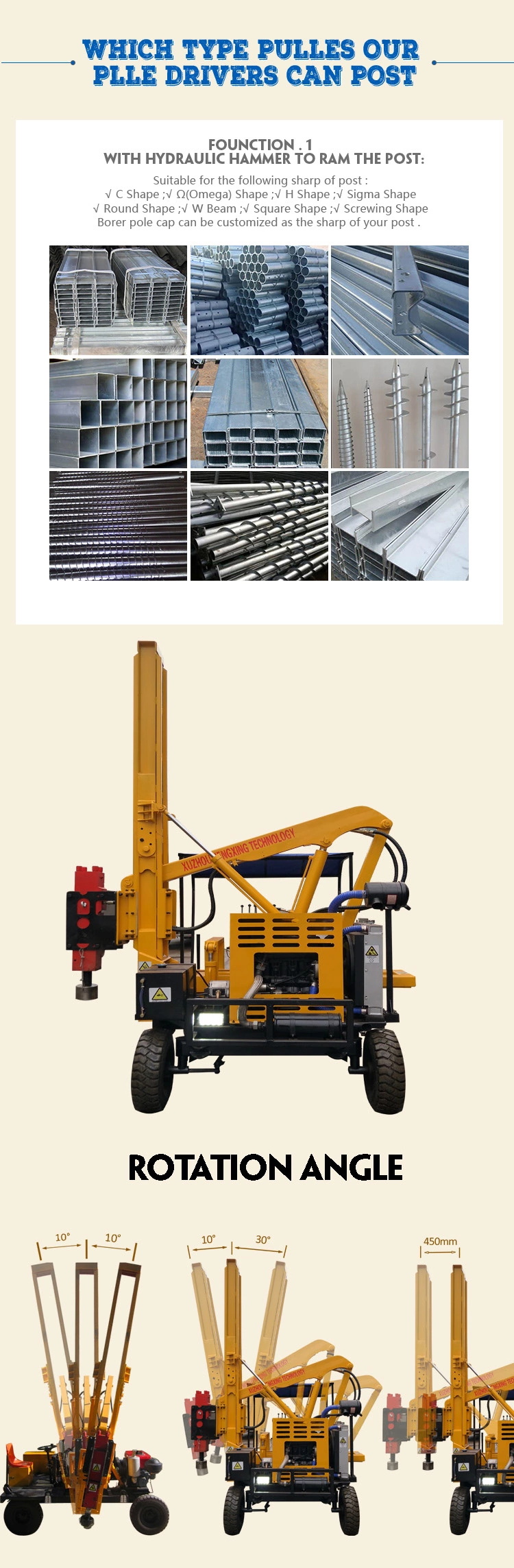

- Compatible Post Shapes
- C ShapeOmega ShapeH ShapeSigma ShapeRoundW BeamSquareScrewing
Service & Warranty
- Warranty Coverage
- 1 year warranty on main machine (excluding hammer)
- Standard Lead Time
- 3 days
