High Voltage PTC Heater Assembly for Electric Vehicles
This high-voltage positive temperature coefficient (HV PTC) heater assembly is designed for new energy vehicle applications. It provides efficient and reliable heating with customizable specifications to meet various vehicle platform requirements.
Technical Specifications
Overview
High Voltage PTC Heater Assembly
This high-voltage positive temperature coefficient (HV PTC) heater assembly is specifically engineered for new energy vehicles (NEVs), offering efficient and reliable heating performance. Designed for durability and safety, the modular unit features rapid heating response, compact dimensions, and robust construction suitable for various vehicle platforms. The system supports flexible integration with customizable partition heating modes to meet specific automotive requirements.

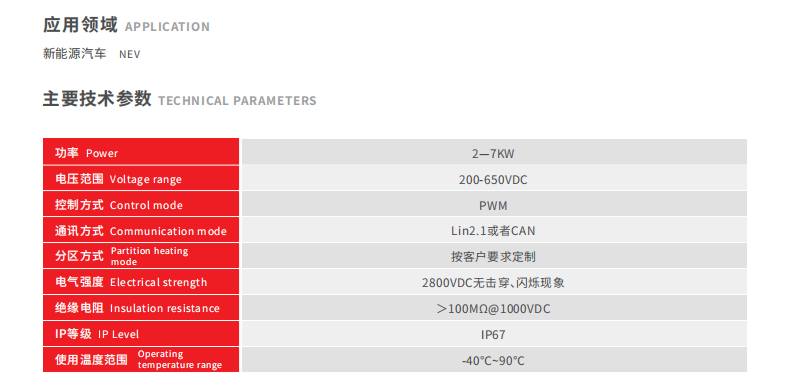

Technical Specifications
- Power Range
- 7 kW
- Voltage Range
- 200-650 VDC
- Control Mode
- PWM
- Communication Modes
- Lin2.1CAN
- Operating Temperature
- -40°C to 90°C
Safety & Compliance
IP Protection Level
IP67
- Electrical Strength
- 2800 VDC (No breakdown or flicker)
- Insulation Resistance
- >100 MΩ @ 1000VDC
Customization
Customization
- Partition heating mode
- Technical parameters
